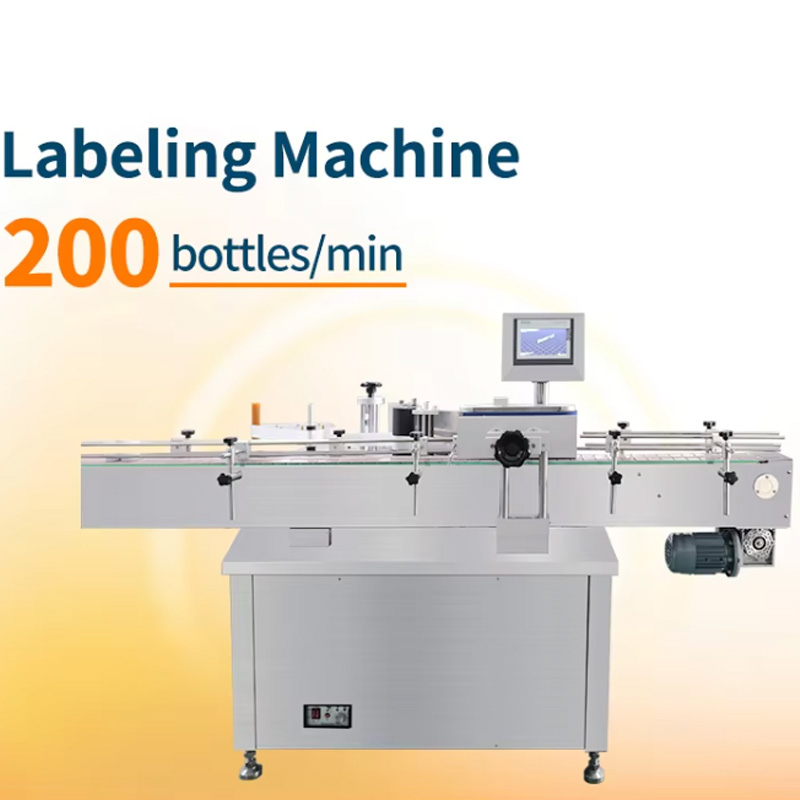

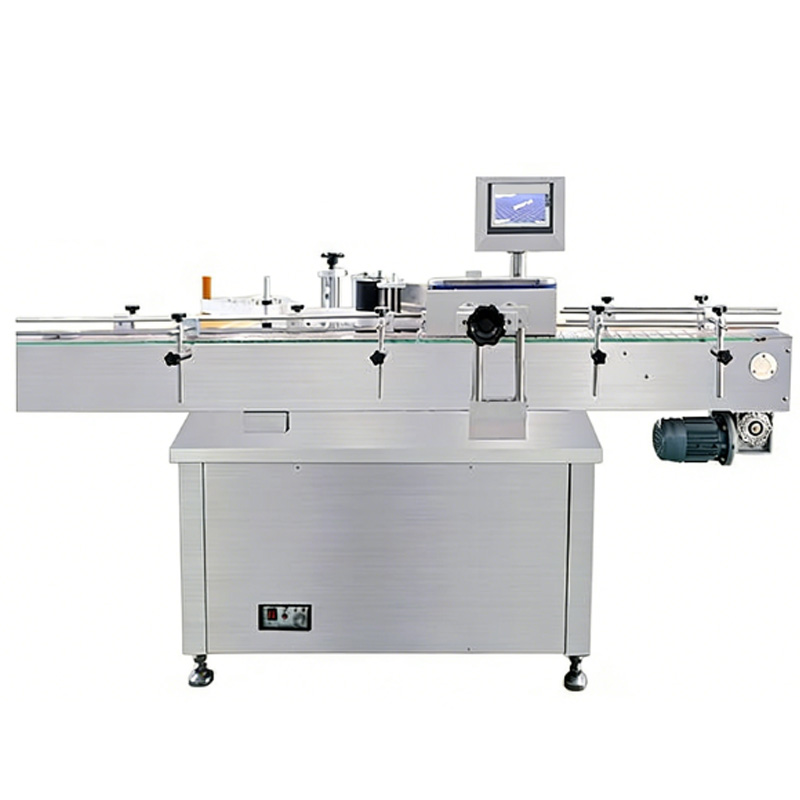

200 bottles/min High Speed Round Bottle Labeling Machine
The 200 bottles/min High Speed Round Bottle Labeling Machine is designed for fast, accurate, and reliable labeling of glass and plastic bottles. Equipped with PLC control, touchscreen interface, and high-precision sensors, it ensures precise label placement and high production efficiency. Ideal for food, beverage, cosmetic, pharmaceutical, and daily chemical industries.
Compare
Labeling Machine Product Introduction
The 200 bottles/min High Speed Round Bottle Labeling Machine delivers high-efficiency labeling for round bottles in various industries. With advanced PLC control and touchscreen operation, operators can easily adjust parameters, monitor production, and maintain smooth operation.
Equipped with high-sensitivity photoelectric sensors, the machine detects bottle position and label gaps, guaranteeing consistent label placement. The machine supports self-adhesive labels, films, barcodes, and QR codes, and its stainless steel hygienic frame ensures durability, corrosion resistance, and compliance with food and pharmaceutical standards. Optional features include batch coding, date printing, and inspection systems, making it perfect for large-scale production lines.
Technical Specifications：
| Labeling Speed | 200 bottles/min |
| Labeling Accuracy | ±1 mm |
| Applicable Bottle Diameter | Φ20 mm – Φ120 mm |
| Applicable Bottle Height | 30 mm – 300 mm |
| Applicable Label Size | Length 20 mm – 320 mm, Width 20 mm – 160 mm |
| Label Type | Self-adhesive label, film, barcode, QR code |
| Control System | PLC + Touchscreen Interface |
| Motor Type | Servo motor for precision labeling |
| Frame Material | Stainless steel, hygienic, corrosion-resistant |
| Power Supply | 220V/50Hz (110V optional) |
| Air Pressure | 0.4 – 0.6 Mpa |
| Overall Dimensions | 2000 × 1300 × 1600 mm |
| Net Weight | 210 Kg |
| Core Components | Motor, Gearbox, Bearing, Sensor, PLC, Encoder |
| Applicable Industry | Food, Beverage, Cosmetic, Pharmaceutical, Daily Chemical |
Main features：
- High-speed labeling – 200 bottles/min for fast production.
- Precision placement – ±1 mm accuracy ensures consistent labeling.

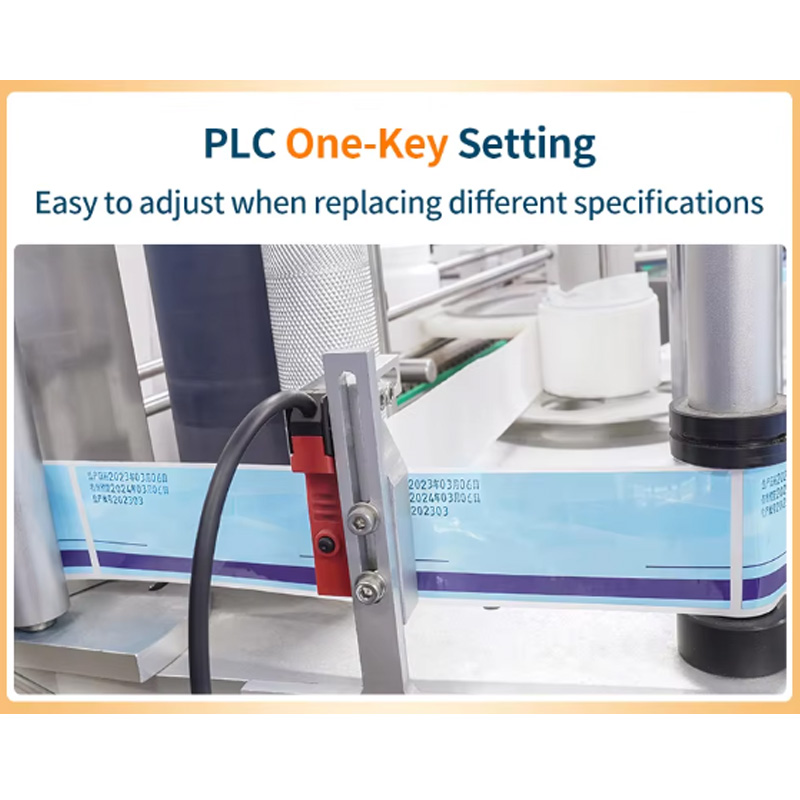

- PLC & touchscreen control – Easy operation and parameter adjustment.
- Hygienic stainless steel frame – Durable, corrosion-resistant, and easy to clean.
- Flexible label compatibility – Supports self-adhesive labels, films, barcodes, and QR codes.
Application Scenarios：
- Food industry – Sauces, bottled oils, sauces, and beverages.
- Beverage industry – Water, juice, tea, dairy drinks, functional drinks.
- Cosmetic industry – Lotions, creams, serums, skincare products.
- Pharmaceutical industry – Medicine bottles, supplements, disinfectants.
- Daily chemical products – Shampoos, detergents, cleaning liquids.
- Industrial production line – Integrates with conveyors for high-volume operations.
- Contract packaging – Adaptable to multiple bottle sizes and shapes.
FAQ
- What bottle types can this machine label?
Round glass and plastic bottles of various sizes. - Is the labeling speed adjustable?
Yes, standard speed up to 200 bottles/min. - Which label types are supported?
Self-adhesive labels, films, barcodes, and QR codes. - Can it print batch numbers or dates?

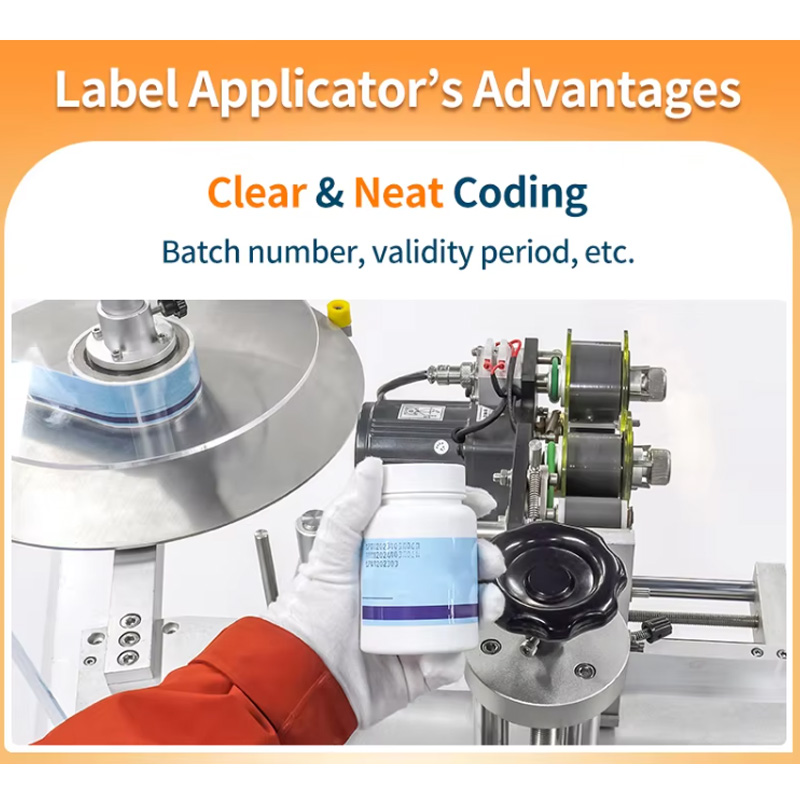

Yes, optional batch coding and date printing are available. - Is it suitable for food and pharmaceutical industries?
Yes, stainless steel hygienic frame meets industry standards.
