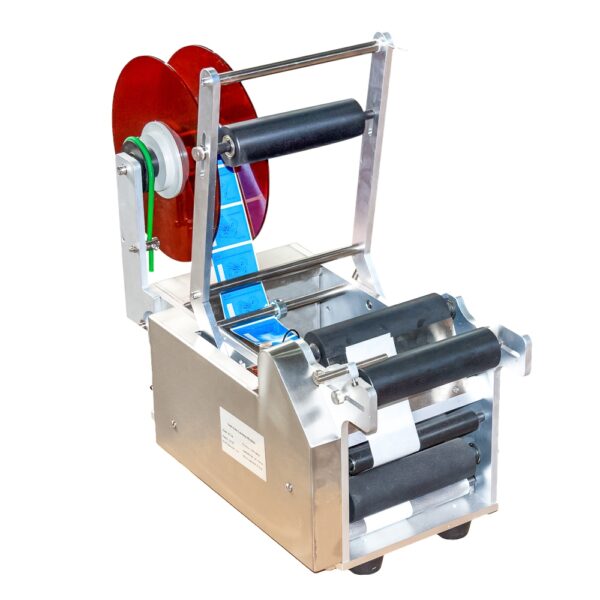

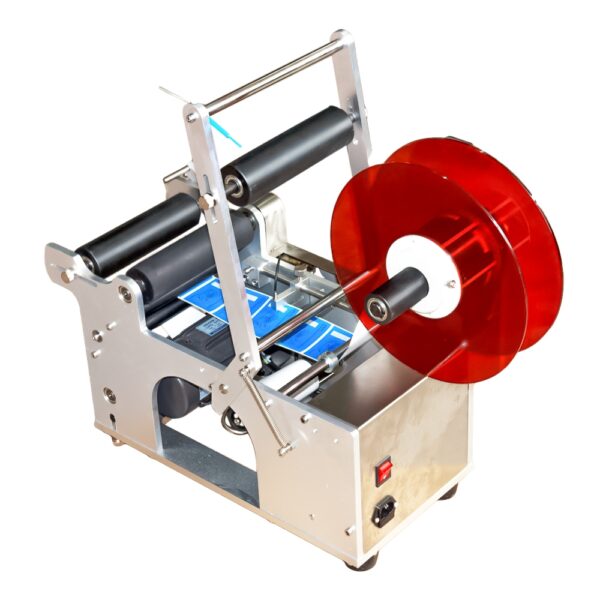

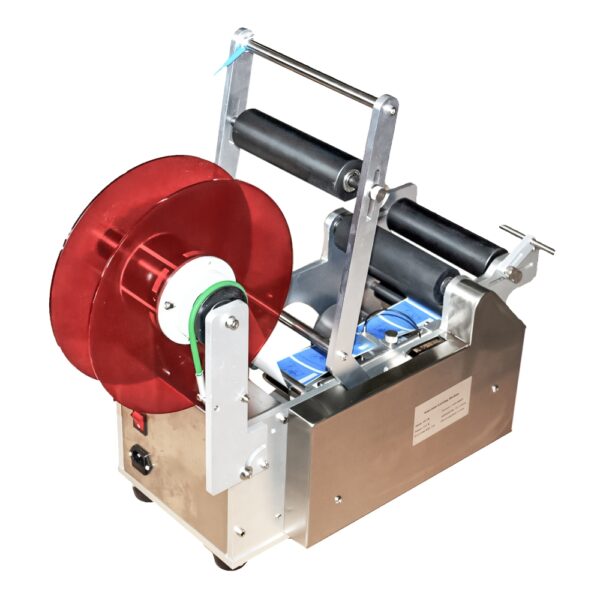

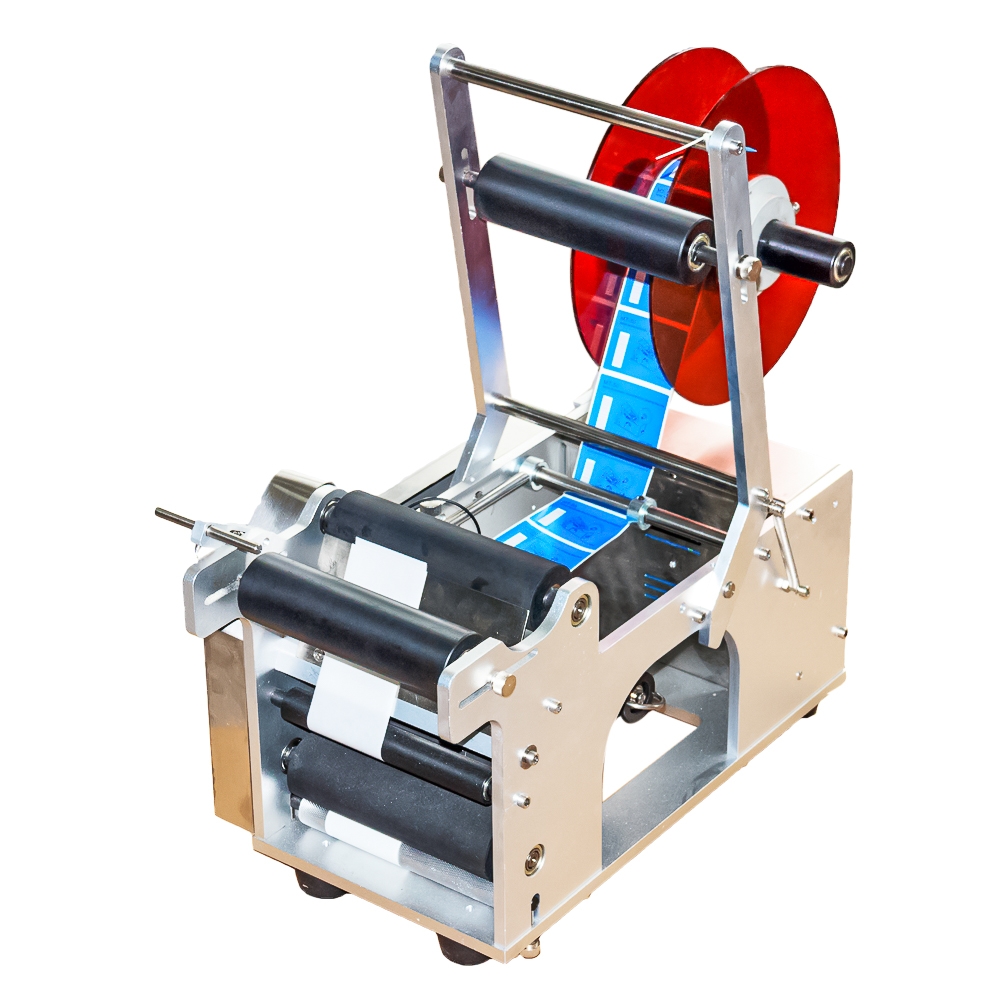

MT-50 Semi-Auto Labeling Machine for 3/4″ – 4-3/4″ Round Bottle Labeling Machine
- Applicable Bottles’ Dia:3/4″ – 4-3/4″ (20 – 120mm)
- Label Width:3/4″ – 6″ (20 – 150mm)
- Label Length:3/4″ – 9″ (20 – 230mm)
- Labeling Speed:25 – 50 pcs/min
- Labeling Accuracy:±0.02″ (±0.5mm)
- AC Power Input: 110V, 60Hz
$576.00
CompareThe labeling machine adopts high precision intelligent electric eye combined controlling to divide labels into lots and labeling
A. Round bottles, tanks, cylinders and other labeling.
B. Suitable for PET bottles, plastic bottles, glass bottles, metal bottle round bottle labeling.
C. Widely used in cosmetics, beverages, food, medicine and other industries, greatly enhance the productivity and labeling quality.
 |
 |
 |

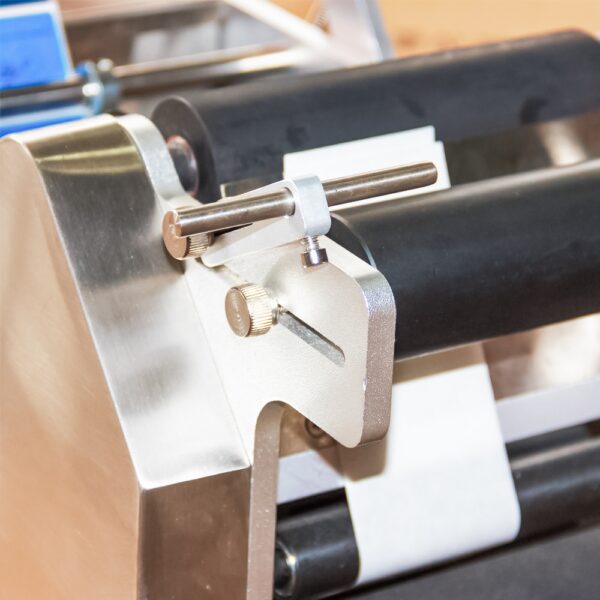

| Label supply plate | Labeling roller | Labeling sensor |

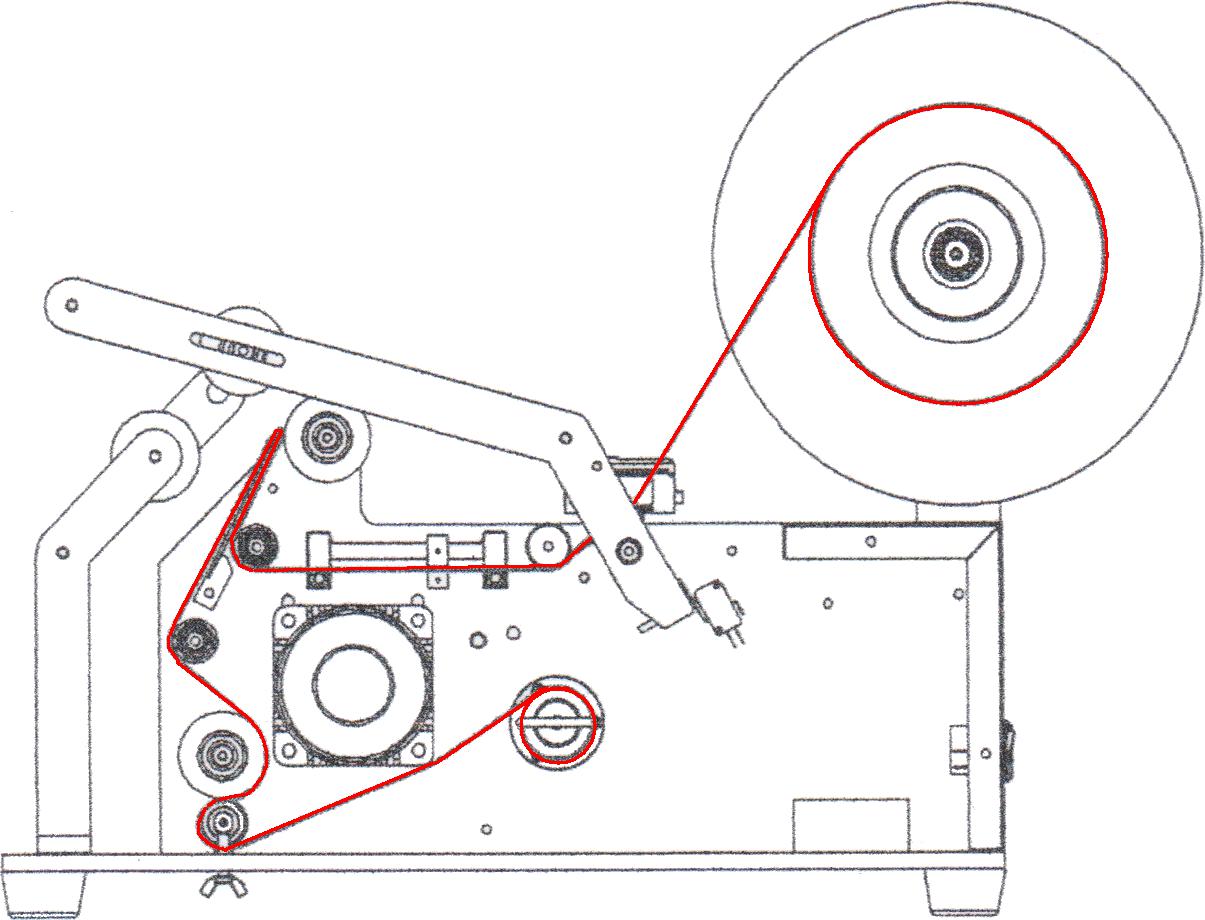

How to change label?
Product Information
Technical Details
|
Applicable Bottles’ Dia. |
3/4″ – 4-3/4″ (20 – 120mm) |
|
Label Width |
3/4″ – 6″ (20 – 150mm) |
|
Label Length |
3/4″ – 9″ (20 – 230mm) |
|
Labeling Speed |
25 – 50 pcs/min |
|
Labeling Accuracy |
± 0.02″ (± 0.5mm) |
|
Label Roll |
External dia.: 7-7/8″ (200mm); Inner dia.: 3″ (75mm) |
|
Power |
0.05HP (40W) |
|
AC Power Input |
110V, 60Hz |
Additional Information
|
Packing Size |
26″ × 15″ × 18″; (660 × 370 × 460 mm) |
|
Packing Weight |
53 lb (24 kg) |
