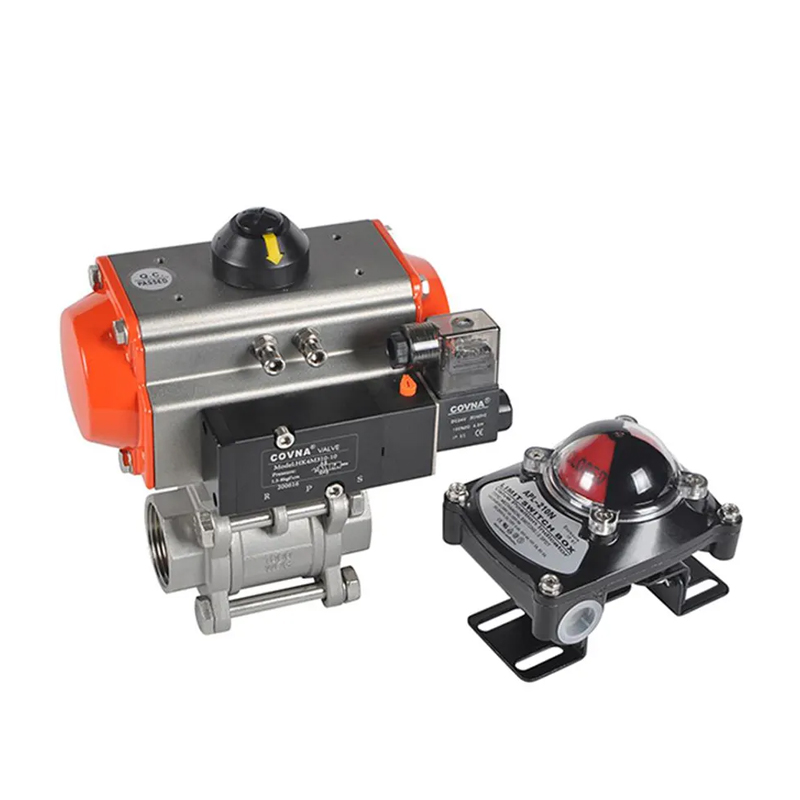

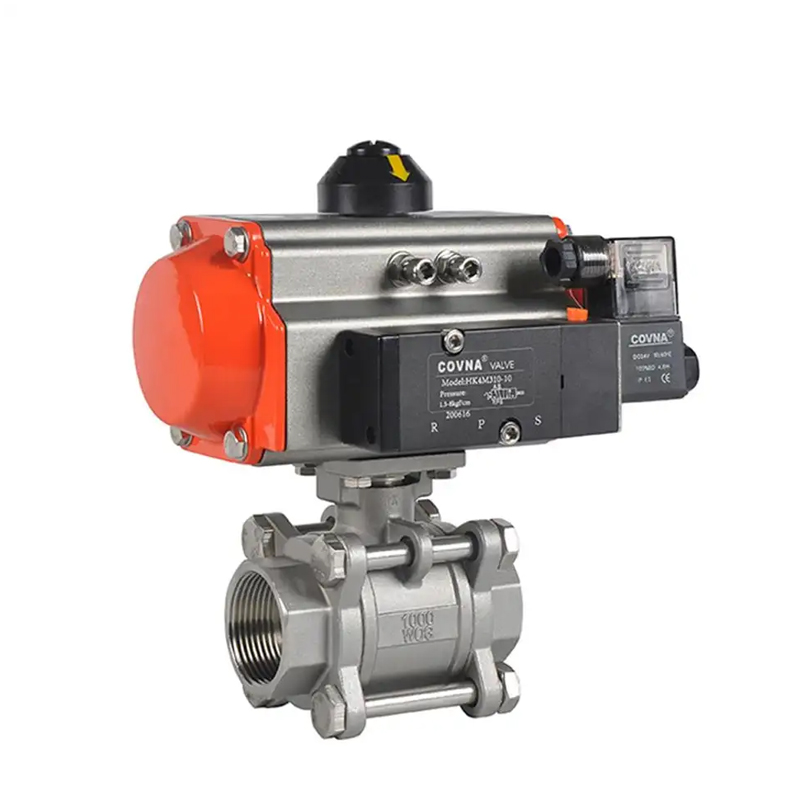

2 Way 3 PCS 1000 WOG 304 Stainless Steel Air Control Ball Valve Pneumatic Actuated Ball Valve with Limit Switch

The valve body is precision cast with standard geometric dimensions. The manufacturing process ensures the sealing of the valve and ensures no leakage during opening and closing.
The thickness is more than 8% thicker than similar vacuum pneumatic butterfly valves, which better ensures the pressure-bearing capacity of the electric clamping butterfly valve.
The actuator shell is made of aluminum alloy precision die-casting and has a thickened shell. It is beautiful and elegant, and has excellent durability and corrosion resistance.
The standard indicator makes it easy to install position switches, positioners and other accessories. The double-piston rack is made of galvanized cast steel. The installation position is symmetrical, it operates quickly and has a long service life. Simply invert the piston to change the direction of rotation.
High-performance spring, made of high-quality materials and coated pre-loading device. It has strong corrosion resistance and long service life. Able to safely and easily disassemble single-acting actuators to meet different force rectangular output ranges by changing the number of springs


Size Range
1/4″~4″, DN08~100
Acting Mode
Double Acting, Spring Return (Single Acting)
Operating Pressure
Air Supply Pressure
2.5 to 8 bar
Angle of Rotation
90° ±4°
Actuation Time
1~2 seconds at 8.0 Bar Air Pressure
Body Material
SS304, SS316, SS316L
Sealing Material
PTFE: -20°C~180°C, PPL: -20°C~230°C
Number of Ways
2 Way
End Connection
Applicable Media
Control of Water, Air, Gas, Oil, Liquid
Optional Accessories
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper
