Pneumatic Solenoid Air Valve 4V230C-08 DC 12V 5 Way 3 Position PT1/4″ Internally Piloted Acting Type Double Electrical Control Midst Closed
- Model: 4V230C-08; Operation Type: Internally Piloted Acting Type

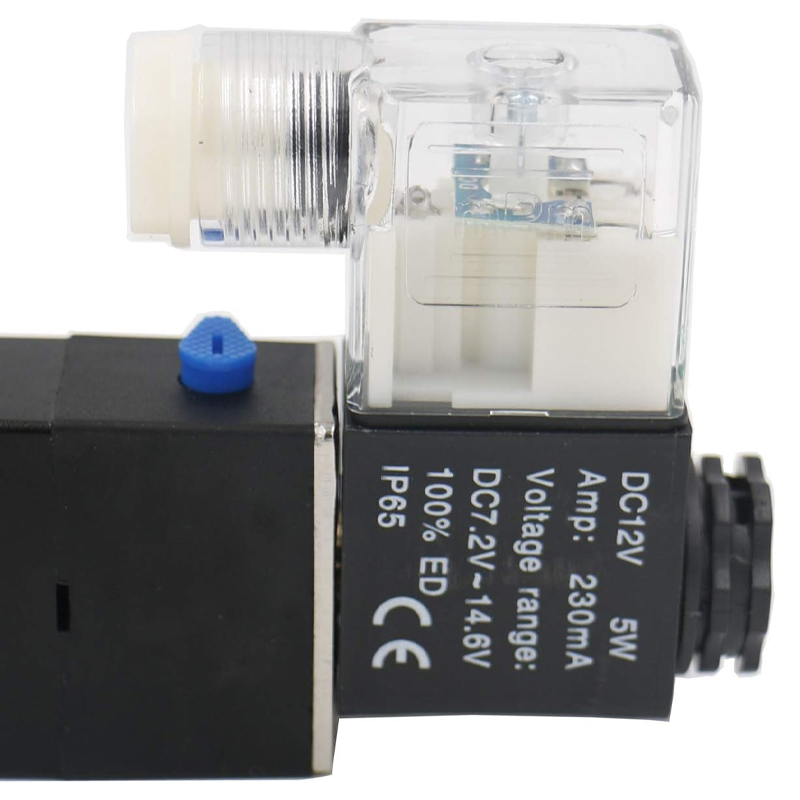

- Type: 3 Position 5 Way; Working Voltage/Power: DC12V; Operating Pressure: 0.15-0.8MPa
- Port Connection: Air Inlet =Air Outlet=PT 1/4, Exaust =PT 1/8; AirInlet Diameter: 11.5mm/ 0.45″

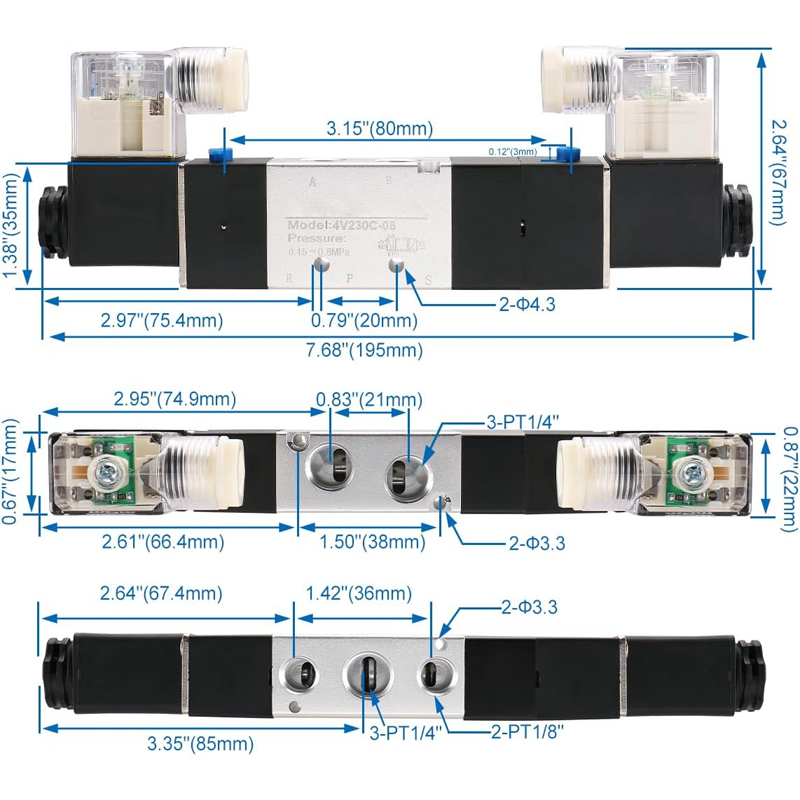

- Hex Connector Inner Dia(Approx): 9.5mm / 0.37″; Total Size(Approx): 190 x 65 x 22mm / 7.5″ x 2.6″ x 0.9″ (L*W*H)
- Weight: 355g; Package Content: 1 x Solenoid Valve
$37.00
Compare- Safety, applicability, lightweight form factor.
- For remote electric control fluid conduit in the valve opening and closing.
- Please note that the gas flow direction and the takeover tooth type is correct installation.
- With solenoid operated for control appropriate flow and direction, provide great performance.
- Great body for a long lifespan, perfect for electrically driven pneumatic power control.
Based on 0 reviews
Be the first to review “Pneumatic Solenoid Air Valve 4V230C-08 DC 12V 5 Way 3 Position PT1/4″ Internally Piloted Acting Type Double Electrical Control Midst Closed”
