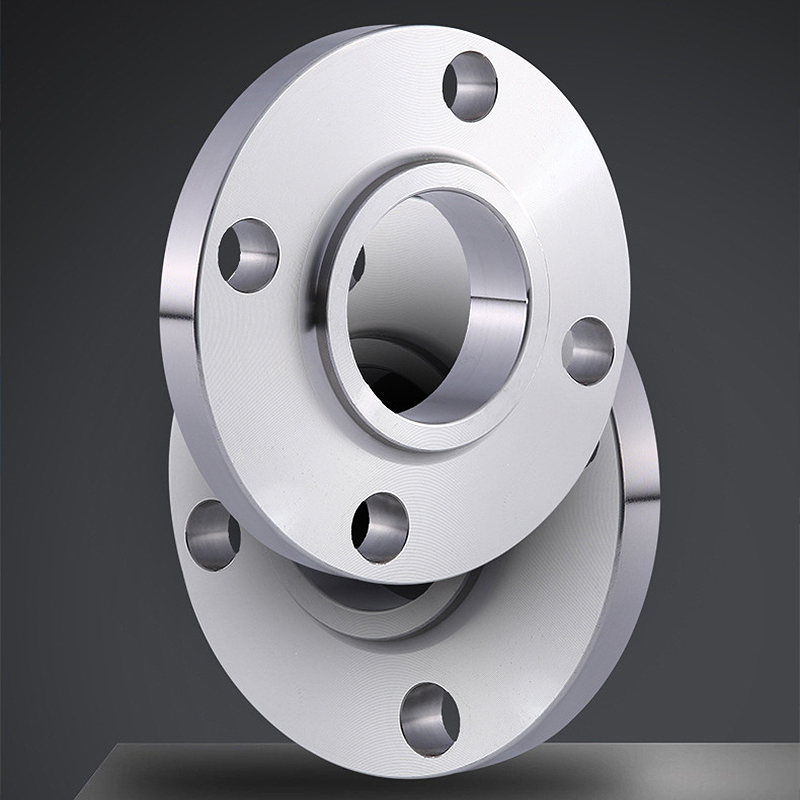

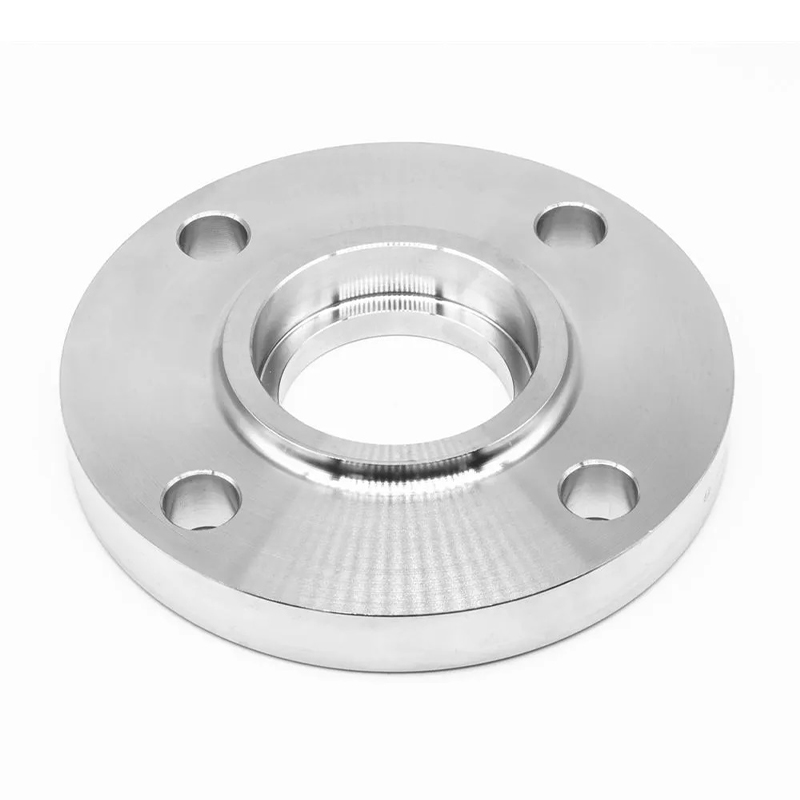

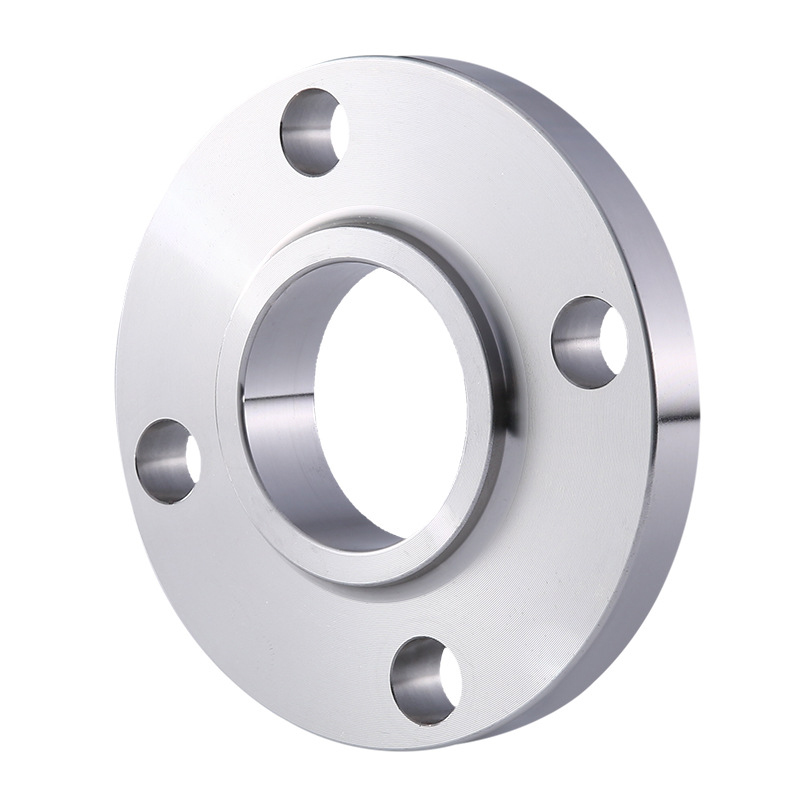

150LB Welding Flange American Standard Neck Flat Welding Flange 316L/304 SS Flange Heat Exchanger Equipment Welding Flange

Add to wishlist
Compare
  • Material: Stainless steel 316L/304
  • Specifications: DN15-DN200
  • Scope of application: chemical/pharmaceutical/pressure vessel/heat exchanger/new energy equipment/food machinery/sterilizer/pipeline equipment reactor/environmental protection equipment/printing and dyeing equipment/pharmaceutical equipment/chemical equipment/filtration equipment/drying equipment/intelligent manufacturing

NOTE: Prices may vary by product model and material.

$15.00

Compare

Features of American Standard Neck Flat Welding Flange

  • Corrosion resistance, high pressure resistance, long life, easy installation.
  • The smooth welding joints are tightly connected, and the workmanship is neat and burr-free.
  • Strong sealing and high matching degree.

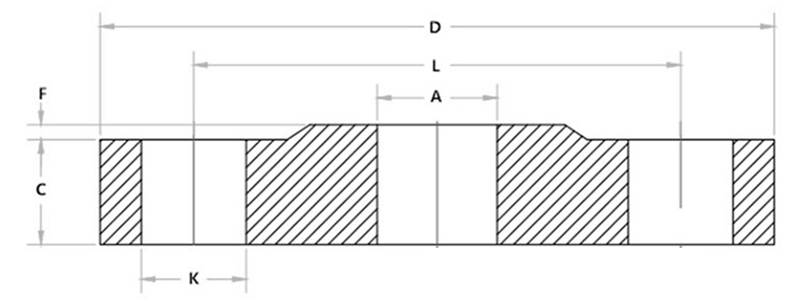

DN(mm) A(mm) D(mm) K(mm) L(mm) n C(mm) Weight(kg)
10 14 90 60 14 4 12 0.46
15 18 95 65 14 4 12 0.51
20 25 105 75 14 4 14 0.75
25 32 115 85 14 4 14 0.89
32 38 140/135 100 18 4 16 1.40
40 45 150/145 110 18 4 18 1.71
50 57 165/160 125 18 4 18 2.09
65 73 185/185 145 18 4 20 2.84
80 89 200/195 160 18 4 20 3.24
100 108 220/215 180 18 8 20 4.01
