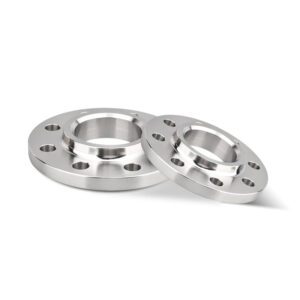

PN16 Plate Flat Welding Flange DN10-DN600 316L/304/301 SS Welding Flange Food Machinery Pharmaceutical Industry Welding Flange

Add to wishlist
Compare
  • Material: Stainless steel 316L/304/301/302
  • Specifications: DN10-DN600 (PN16)
  • Scope of application: chemical/pharmaceutical/pressure vessel/heat exchanger/new energy equipment/food machinery/sterilizer/pipeline equipment reactor/environmental protection equipment/printing and dyeing equipment/pharmaceutical equipment/chemical equipment/filtration equipment/drying equipment/intelligent manufacturing

NOTE: Prices may vary by product model and material.

$13.00

Compare

Features of Plate Flat Welding Flange

  • Corrosion resistance, high pressure resistance, long life, easy installation.
  • The smooth welding joints are tightly connected, and the workmanship is neat and burr-free.
  • Strong sealing and high matching degree.

Nominal diameter Piping outer diameter (mm) Flange outer diameter (mm) Flange inner diameter (mm) Total thickness (mm) Center distance(mm) Number of holes
DN15 18 95 19 14 65 4
DN20 25 105 26 16 75 4
DN25 32 115 33 16 85 4
DN32 38 140 39 18 100 4
DN40 45 150 46 18 110 4
DN50 57 165 59 19 125 4
DN65 76 185 78 20 145 8
DN80 89 200 91 20 160 8
DN100 108 220 110 22 180 8
DN125 133 250 135 22 210 8
DN150 159 285 161 24 240 8
DN200 219 340 222 26 295 12
DN250 273 405 276 29 335 12
DN300 325 460 328 32 410 12
DN350 377 520 381 35 470 16
DN400 426 580 430 38 525 16
DN450 480 640 485 42 585 20
DN500 530 715 535 46 620 20
DN600 630 840 636 52 770 20

Note: DN15~DN150 specifications, PN10 and PN16 are the same size, and the sizes after DN200 are different.
