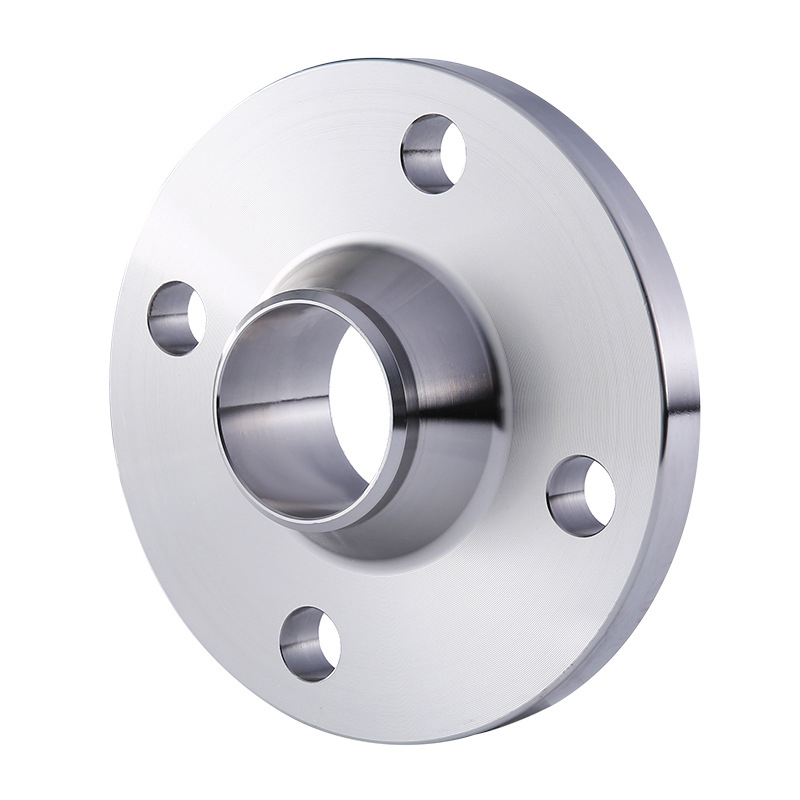

PN10 PN16 Neck Butt Welding Flange 304/316 Stainless Steel Welding Flange Pressure Vessel Welding Flange Pipe Connection Flange

Add to wishlist
Compare
  • Material: 304/316 Stainless steel
  • Specifications: DN10-DN2000  (PN10 PN16)
  • Scope of application: chemical/pharmaceutical/pressure vessel/heat exchanger/new energy equipment/food machinery/sterilizer/pipeline equipment reactor/environmental protection equipment/printing and dyeing equipment/pharmaceutical equipment/chemical equipment/filtration equipment/drying equipment/intelligent manufacturing

NOTE: Prices may vary by product model and material.

$22.00

Compare

Features of Neck Butt Welding Flange

  • Corrosion resistance, high pressure resistance, long life, easy installation.
  • The smooth welding joints are tightly connected, and the workmanship is neat and burr-free.
  • Strong sealing and high matching degree.

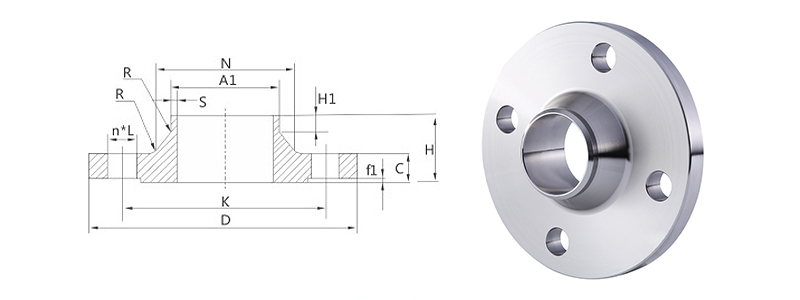

DN D K L n C H1 R H
10 90 60 14 4 16 6 4 35
15 95 65 14 4 16 6 4 38
20 105 75 14 4 18 6 4 40
25 115 85 14 4 18 6 4 40
32 140 100 18 4 18 6 6 42
40 150 110 18 4 18 7 6 45
50 165 125 18 4 18 8 5 45
65 185 145 18 8 18 10 6 45
80 200 160 18 8 20 10 6 50
100 220 180 18 8 20 12 8 52
125 250 210 18 8 22 12 8 55
150 285 240 22 8 22 12 10 55
200 340 295 22 12 24 16 10 62
250 405 355 26 12 26 16 12 70
300 460 410 26 12 28 16 12 78
350 520 470 26 16 30 16 12 82
400 580 525 30 16 32 16 12 85
450 640 585 30 20 40 16 12 87
500 715 650 33 20 44 16 12 90
600 840 770 36 20 54 18 12 95
… … … … … … … … …
2000 2345 2230 62 48 66 40 16 180
