10–25 pcs/min Fully Automatic Vacuum Packaging Machine Food
This fully automatic vacuum packaging machine efficiently seals food, vegetables, and grains. It supports various bag types, including textured, folded corner, and flat bags. Equipped with a vacuum suction tube, heating strip, vacuum gauge, and foot pedal, the machine ensures precise vacuuming and sealing. The control panel allows adjustment of vacuum and sealing time, enhancing efficiency and ease of operation in food processing and packaging applications.
Compare
Product Introduction Vacuum Packaging Machine

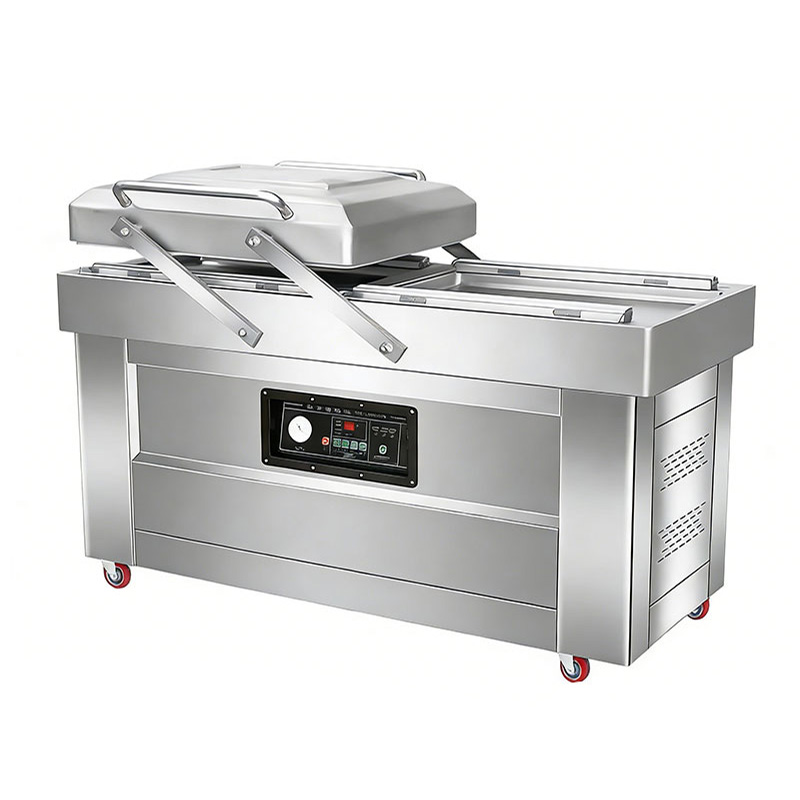

The fully automatic vacuum packaging machine is designed for high-efficiency food, vegetable, and grain packaging with a speed of 10–25 pieces per minute. Constructed with durable stainless steel, it provides hygienic and long-lasting operation. The machine handles a variety of bag types, including textured, smooth, and folded corner bags, ensuring adaptability for different products. Vacuum suction tubes, heating strips, and a control panel allow precise vacuuming and sealing, improving packaging quality and reducing air exposure. Suitable for food processing plants, vegetable and grain packaging, and commercial kitchens, this machine streamlines packaging operations and enhances overall production efficiency.
Technical Specifications
| Parameter | Specification |
| Packaging Material | Plastic |
| Automatic Grade | Automatic |
| Machine Name | Double chamber packer vacuum packaging machine |
| Electrical Control | Microcomputer program |
| Vacuum Chamber Size | 670×540×110 mm |
| Power Source | 380V / 220V |
| Motor Power | 900 W |
| Packing Speed | 10–25 pcs/min |
| Heat Sealing Way | Instant heating |
| Dimensions | 1440×590×960 mm |
| Net Weight | 245 kg |
Main features
- Stainless steel construction ensures excellent hygiene, corrosion resistance, and long service life.
- Supports multiple bag types including textured, smooth, and folded corner bags for versatility.

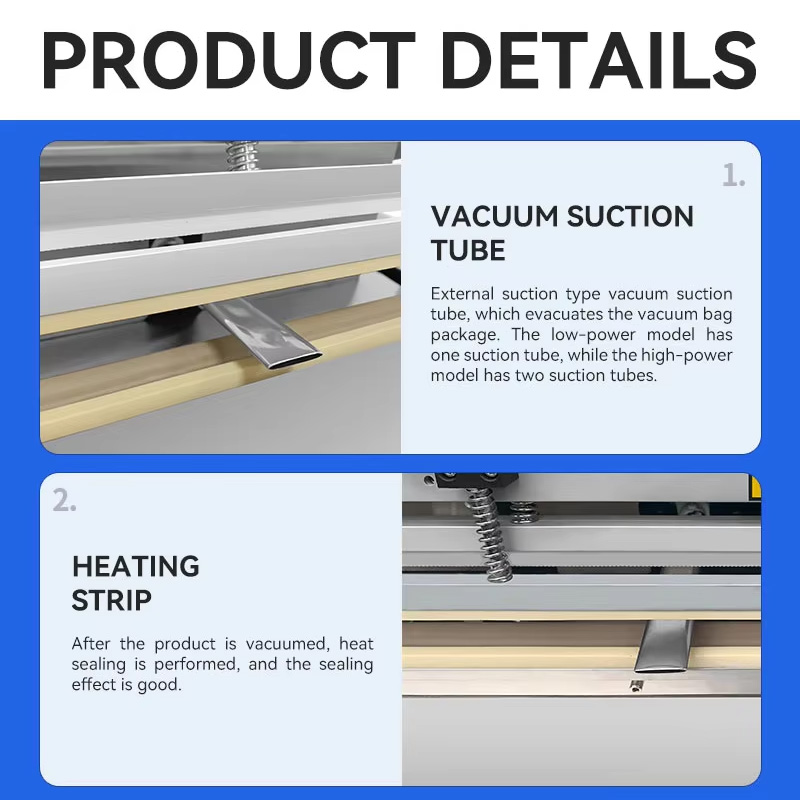

- Vacuum suction tube and heating strip provide precise vacuuming and secure sealing results.
- Foot pedal operation enhances workflow efficiency and speeds up the packaging process.
- Control panel allows adjustment of vacuum and sealing time for consistent packaging quality.
- Transparent vacuum chamber lids enable easy monitoring of the packaging process in real time.
Working principle
The 10–25 pcs/min fully automatic vacuum packaging machine operates through a continuous automated process integrating product feeding, vacuuming, sealing, and output. Food products are automatically conveyed into the vacuum chamber or formed packaging area, where the system initiates air extraction using a high-performance vacuum pump.
Once the preset vacuum level is reached, the machine performs heat sealing to create an airtight package, effectively preserving freshness and extending shelf life. The entire process is controlled by an intelligent PLC system, allowing precise adjustment of vacuum degree, sealing temperature, and cycle time, ensuring stable operation and consistent packaging quality at a speed of 10–25 pieces per minute.
Application scenarios
- Food packaging lines for snacks, vegetables, and grains.
- Commercial kitchens and catering services requiring vacuum-sealed products.
- Agricultural product packaging for rice, beans, and other grains.
- Ready-to-eat meal and prepared food packaging operations.
- Research and development testing for vacuum packaging processes.
FAQ
A: Yes, it is fully automatic for food vacuum packaging.
A: It suits meat, seafood, grains, snacks and prepared food.
A: Yes, all food-contact parts use food-safe stainless steel.
A: Yes, both parameters can be adjusted on the panel.
Why Choose Us
• High-efficiency vacuum system extends product shelf life and maintains freshness
• Reliable heat sealing ensures strong, airtight, and leak-proof packaging
• Food-grade stainless steel construction meets hygiene and safety standards
• Easy-to-use PLC control with touchscreen for convenient parameter adjustment
• Compatible with various food products such as meat, seafood, snacks, and prepared foods
Contact us to get your quotation now.
Get in touch with our engineering team.
