Z Type Bucket Elevator Solution for Snack Food Transfer

Z Type Bucket Elevator Product Introduction

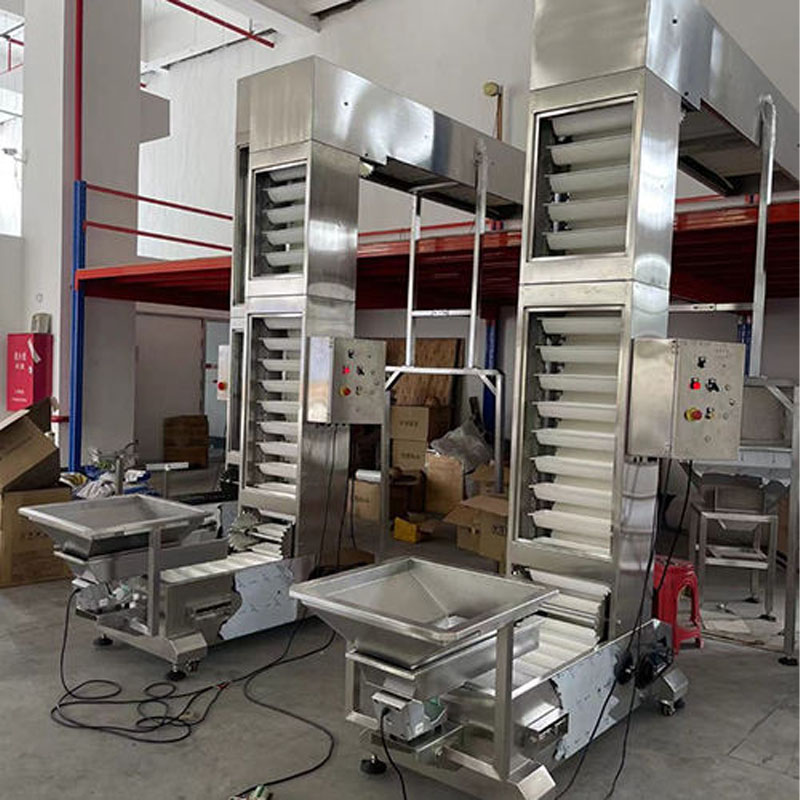

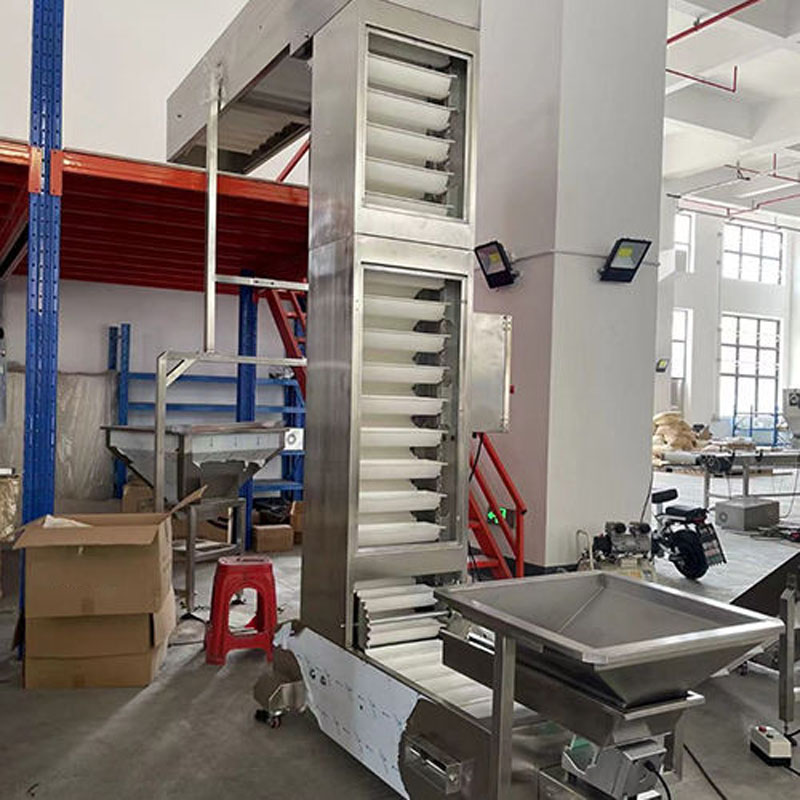

The Z type bucket elevator is a modern vertical conveying system developed for continuous lifting and feeding of powder, granule, and small bulk materials. The equipment adopts a Z-shaped conveying structure combining horizontal feeding, vertical lifting, and horizontal discharge within one integrated system.

Compared with traditional lifting equipment, the Z bucket conveyor offers gentler product handling, stable conveying efficiency, and reduced material damage during transportation. It is especially suitable for fragile food products such as potato chips, roasted coffee beans, cheese balls, cookies, nuts, pet food, crispy rice, and snack particles.

The machine supports automatic feeding and discharge control, making it ideal for integration with weighing machines, packaging systems, filling machines, and automated food processing lines. With stainless steel hygienic construction options and customizable discharge ports, the Z type bucket elevator is widely used in food factories, grain processing plants, snack production lines, and industrial bulk material handling systems.

Working principle

Step 1: Material Feeding

Bulk materials enter the feeding hopper through manual loading or upstream processing equipment.

Step 2: Bucket Loading

The conveyor buckets automatically collect and hold materials during movement.

Step 3: Vertical Lifting

The bucket chain lifts materials vertically through the enclosed conveyor structure.

Step 4: Horizontal Conveying

The Z-type structure transfers materials smoothly between horizontal and vertical sections.

Step 5: Automatic Discharge

Buckets discharge materials automatically into packaging machines, storage bins, or downstream systems.

Step 6: Continuous Circulation

The empty buckets return to the loading section for continuous conveying operation.

Product Parameter Table

Parameter	Specification
Bucket Volume	6.5 L
Bucket Material	PP or Stainless Steel
No. of Discharge Ports	Single or Multi-Discharge Port
Machine Body Material	Mild or Stainless Steel
Capacity	5.5-12 m³/h
Voltage	220/240/380/415/440 V
Power	2.2-3.0 kW

Z Type Bucket Elevator vs Traditional Belt Conveyor

Main Features

Gentle Material Handling

Special bucket structure minimizes product breakage during conveying of fragile materials.

Continuous Automatic Conveying

Supports stable vertical lifting and continuous feeding for automated production lines.

Hygienic Food Grade Design

Optional stainless steel construction meets food processing and sanitary production requirements.

Excellent Sealing Performance

Fully enclosed structure reduces dust leakage and environmental contamination during operation.

Flexible Discharge Configuration

Available with single discharge or multi-discharge outlet options for different processing systems.

Low Product Damage Rate

Suitable for delicate food products including chips, nuts, cookies, and roasted coffee beans.

Stable Feeding Control

Can work together with electronic weighing systems for automatic feeding and stopping control.

Space Saving Conveyor Structure

Z-shaped design combines horizontal and vertical conveying within limited factory space.

Wide Material Compatibility

Suitable for powder, granule, pellet, snack, feed, grain, and small lump materials.

Durable Industrial Construction

Designed for long-term continuous operation with reliable conveying performance.

Why Choose Our Z Type Bucket Elevator

Reduced Material Breakage

The gentle bucket conveying method protects fragile products from crushing and damage.

Food Grade Hygienic Structure

Stainless steel options support sanitary production standards for food industries.

Flexible System Integration

Compatible with packaging machines, weighing systems, and automated processing lines.

Low Maintenance Requirement

Simple structure and durable components reduce maintenance costs and downtime.

Customizable Conveyor Solution

Bucket size, discharge ports, conveyor height, and material options can be customized.

Energy Efficient Operation

Optimized motor and conveying structure reduce power consumption during production.

Stable Continuous Conveying

Provides reliable bulk material transportation for long-term industrial operation.

Application Scenarios

Snack Food Production Line

Used for transporting potato chips, fried snacks, cheese balls, crispy rice, and puffed food products.

Nut Processing Industry

Suitable for almonds, pistachios, peanuts, roasted nuts, and coffee bean conveying applications.

Pet Food Manufacturing

Widely used for dog food, fish feed, animal feed pellets, and pet snack handling systems.

Grain and Flour Mill

Efficiently handles grains, seeds, flour materials, and agricultural bulk products.

Frozen Food Processing

Suitable for frozen granules, packaged food particles, and temperature-sensitive materials.

Packaging Automation System

Works together with weighing machines and vertical packaging systems for automatic production.

Buying Guide for Z Type Bucket Elevator

Confirm Material Type

Identify whether materials are snack food, nuts, granules, powder, pellets, or fragile products.

Select Bucket Material

PP buckets are economical while stainless steel buckets are suitable for hygienic food applications.

Determine Required Capacity

Choose conveying capacity according to production line output requirements.

Choose Conveyor Height

Select appropriate lifting height based on factory layout and discharge position.

Evaluate Discharge Requirements

Single or multi-discharge ports should match downstream equipment configuration.

Consider Machine Material

Stainless steel is recommended for food and corrosive environments, while carbon steel suits standard industrial applications.

Check Automation Compatibility

Ensure compatibility with packaging systems, weighing machines, and automatic feeding controls.

FAQ

Question: What is a Z type bucket elevator used for?

Answer: A Z type bucket elevator is used for vertical conveying of snack food, nuts, granules, powder, pet food, grains, and fragile bulk materials.

Question: Why is a Z bucket conveyor suitable for fragile food products?

Answer: The bucket structure transports materials gently, reducing crushing and product damage during conveying.

Question: Can a Z type bucket elevator handle roasted coffee beans?

Answer: Yes, the conveyor is widely used for roasted coffee beans, nuts, and delicate food materials requiring gentle handling.

Question: Is stainless steel available for food processing applications?

Answer: Yes, stainless steel bucket elevators are available for hygienic food production environments.

Question: Can the bucket elevator connect with packaging machines?

Answer: Yes, the system can integrate with weighing machines, filling equipment, and automatic packaging lines.

Question: What materials can be transported by a Z type conveyor?

Answer: The conveyor can handle snacks, grains, seeds, pet food, nuts, powder, granules, and small lump materials.

Question: Does the bucket conveyor support multi-discharge outlets?

Answer: Yes, optional multi-discharge ports are available for different production line requirements.

Question: What is the advantage of a Z shape conveyor structure?

Answer: The Z shape design combines horizontal and vertical conveying while saving factory installation space.

Question: How do I choose the right bucket elevator capacity?

Answer: Capacity selection depends on material density, production output, conveying height, and processing speed.

Question: Is the Z type bucket elevator suitable for continuous operation?

Answer: Yes, the conveyor is designed for stable long-term continuous conveying in industrial production systems.

Conclusion

The automatic Z type bucket elevator is an efficient vertical conveying solution for food processing, grain handling, snack production, and industrial bulk material transportation. With gentle conveying performance, hygienic structure, low product damage, and flexible automation compatibility, it is widely used for transporting fragile and non-fragile materials in modern production systems. Its compact design, reliable operation, and customizable configuration make it an ideal choice for automated feeding and vertical material handling applications.
