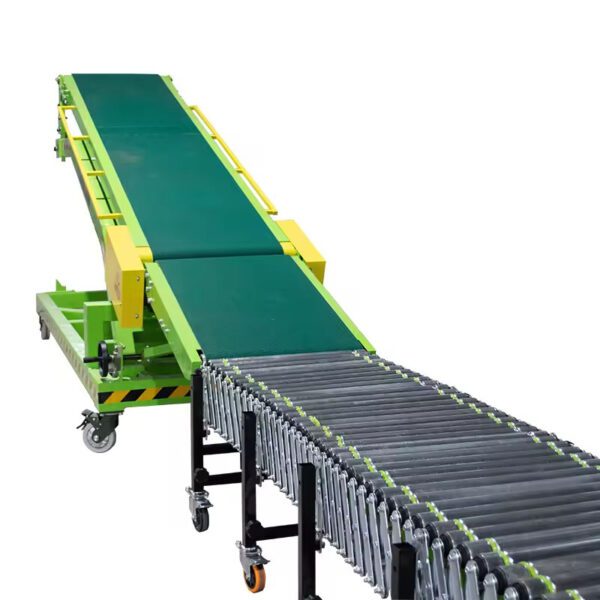

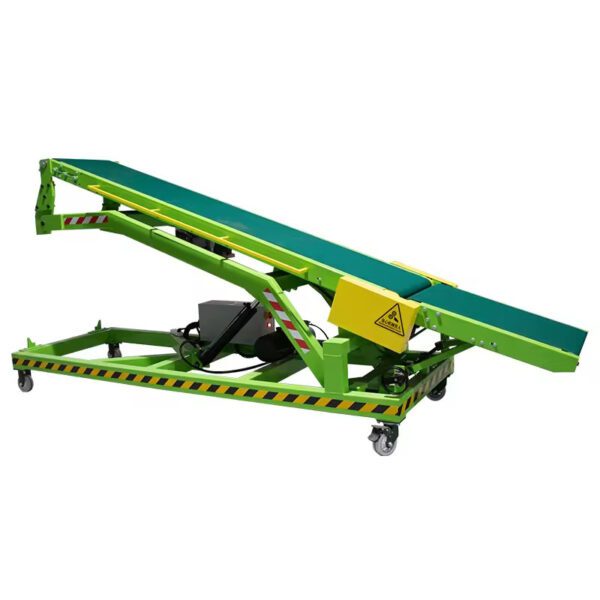

Adjustable Speed and Height Truck Loading And Unloading Belt Conveyor Machine
Non-slip belt
PVC belt anti-aging,high friction prevent items from slipping

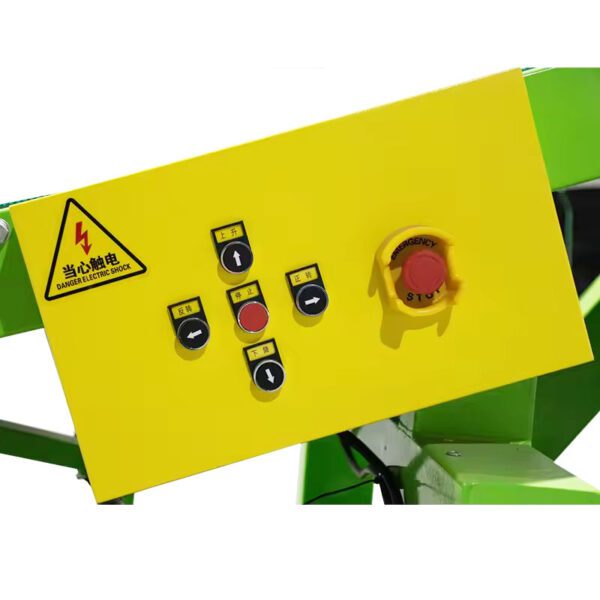

Operation panel
The panel is simple and easy to operate,easy to use.
Lift table
Humanized design,so that each lift becomes easier,more relaxed
High load bearing rod
Hydraulic high load bearing rod,strong gravity,make the climbing machine long life
$480.00
CompareLoading And Unloading Belt Conveyor Machine
| Type of conveyor | Container handling conveyor |
| Width | 700mm |

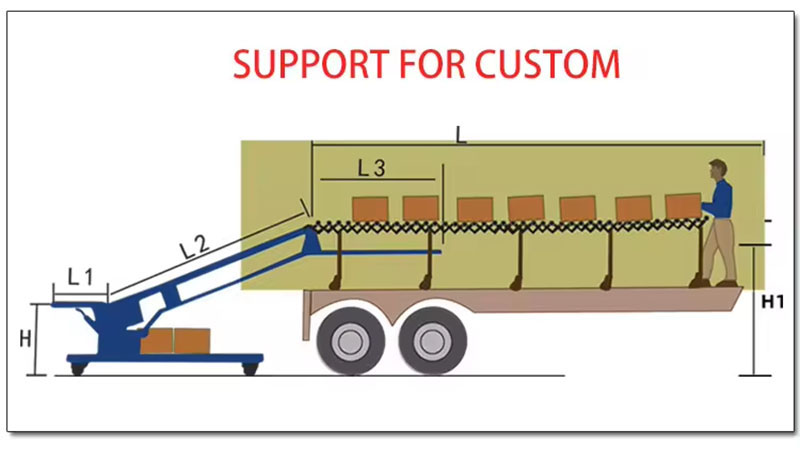

| Length of tail (L1) | 1000mm |
| Length of climbing section (L2) | 3000mm |
| Unraised height (H) | 800mm |
| Height of front transverse support after lifting (H1) | 1700mm |
| Transport direction | Loading or unloading |
| transmission way | Reduction motor gear |
| Lift way | Oil pump + rod combined lifting frame |
| Job power | AC380v 1.5kw-3kw |
| load | Up to 60 kg/m |
| belt speed | 24 m /min (speed adjustable) |
| Machine net weight approx | 1.5t |
