Z Type Bucket Elevator for Nuts Seeds and Grain Handling

Z Type Bucket Elevator Product Introduction

The Z Type Bucket Elevator is a reliable material lifting solution designed for automatic transportation of granular, powder, and small solid materials. Using a series of buckets attached to a rotating belt or chain, the equipment collects materials from the feeding section, lifts them vertically, and transfers them to the designated discharge position.

Compared with traditional conveying equipment, the Z Type Bucket Elevator provides a compact and space-saving design by combining vertical lifting and horizontal conveying in one system. This makes it especially suitable for production environments where floor space is limited and stable material feeding is required.

The enclosed conveying structure helps prevent material contamination and maintains a clean working environment. The bucket transportation method reduces product damage during lifting, making it ideal for fragile products such as nuts, grains, snacks, seeds, and other food materials.

The Z Type Bucket Elevator can be integrated with weighing machines, filling machines, packaging equipment, and automatic production systems to achieve efficient material handling and continuous operation. It is widely used in food processing, agriculture, chemical, pharmaceutical, feed, and industrial material handling industries.

Working principle

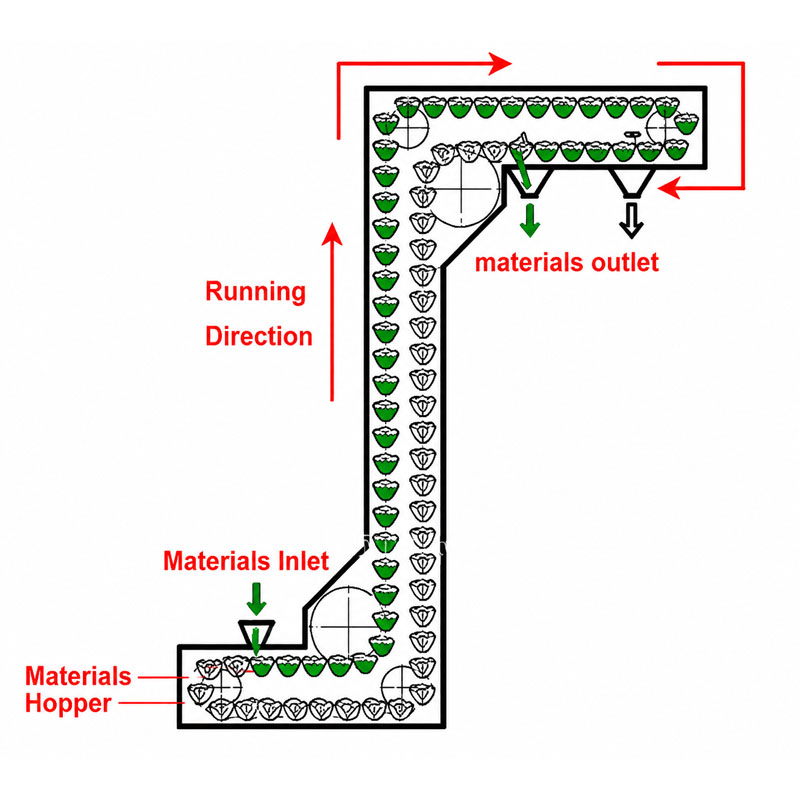

The Z Type Bucket Elevator works through a continuous bucket conveying system driven by a motor. Materials enter the feeding hopper and are picked up by moving buckets. The buckets transport materials upward through the vertical section and then move horizontally at the top section before discharging the materials into the next process. After unloading, the empty buckets return to the starting position to complete another conveying cycle.

Equipment Advantages

Efficient Vertical Material Transfer

The Z Type Bucket Elevator completes material collection, vertical lifting, and horizontal discharge in one integrated system, improving production efficiency.

Reduced Material Damage

The bucket design provides gentle transportation compared with traditional screw or belt conveying methods, making it suitable for delicate materials.

Improved Production Automation

It can be connected with packaging and processing equipment to reduce manual feeding and improve production consistency.

Clean and Safe Operation

The enclosed structure prevents dust spreading and helps maintain a cleaner production environment.

Compact Installation

The vertical conveying design saves valuable factory space and allows flexible production line layouts.

Product Parameter Table

Item	Specification
Equipment Type	Z Type Bucket Elevator
Bucket Capacity	1.8 / 4 L (Customizable)
Bucket Material	Food Grade PP
Conveying Capacity	4–6.5 / 6–10 m³/h (Customizable)
Machine Material	Stainless Steel 304 / Carbon Steel
Lifting Height	10–40 m (Customizable)
Power Supply	AC 380V, 50Hz
Motor Power	0.75 kW

Main Features

Hygienic and Enclosed Design

The fully enclosed structure helps protect materials from external contamination while maintaining a clean and hygienic conveying environment, especially suitable for food and pharmaceutical applications.

Gentle Material Handling

The bucket conveying method lifts materials smoothly and reduces impact, helping prevent breakage and maintain product quality during transportation.

Space-Saving Z Type Structure

The Z-shaped layout combines vertical lifting and horizontal discharge, reducing equipment footprint and improving production line flexibility.

Wide Material Compatibility

The Z Type Bucket Elevator can handle various materials including grains, nuts, seeds, sugar, snacks, pellets, powders, and other granular products.

Food Grade Construction

Food-grade material options provide safe and hygienic conveying for industries with strict cleanliness requirements.

Stable Automatic Operation

The equipment supports continuous or intermittent conveying modes and can work with automatic production systems for efficient feeding.

Low Maintenance Design

The simple mechanical structure reduces wear and tear, making installation, operation, and maintenance easier.

Flexible Lifting Height

The lifting height and conveying configuration can be customized according to different production requirements.

Reliable Safety Protection

The system can be equipped with overload protection and safety functions to ensure stable and safe operation.

Application Scenarios

Food Processing Industry

The Z Type Bucket Elevator is widely used for transporting nuts, snacks, candies, grains, seeds, and other food products requiring gentle and hygienic handling.

Automatic Packaging Line

It provides stable material feeding for weighing machines, filling machines, and automatic packaging systems.

Grain Processing Industry

The equipment is suitable for lifting rice, wheat, corn, beans, and other agricultural products in processing facilities.

Feed Production Industry

It can efficiently transport feed pellets, additives, and granular animal feed materials.

Pharmaceutical Industry

The enclosed conveying system is suitable for transporting medicine granules and powder materials where cleanliness is important.

Chemical Industry

It can handle dry powders, granules, fertilizers, and other industrial materials safely and efficiently.

Sugar and Seasoning Production

The conveyor is suitable for transporting sugar, salt, seasoning particles, and other small granular ingredients.

Plastic and Granule Processing

It can be used for conveying plastic pellets and other small particle materials in automated production systems.

Suitable Materials

• grain
• nut
• seed
• sugar
• candy
• snack product
• feed pellet
• plastic granule
• powder material
• chemical granule
• pharmaceutical material
• food ingredient

Technical Advantages of Z Type Bucket Elevator

The Z Type Bucket Elevator provides an efficient solution for industries requiring reliable vertical material lifting. Its compact design reduces installation space while maintaining high conveying efficiency. The bucket system ensures accurate material transfer with minimal product loss, making it suitable for applications where product quality and production stability are important.

The combination of hygienic construction, flexible configuration, and automatic operation makes it a preferred choice for modern material handling and packaging systems.

FAQ

Q1: What materials can the Z Type Bucket Elevator transport?

A: It can transport various granular, powder, and solid materials, including grains, nuts, seeds, snacks, sugar, feed pellets, and chemical granules.

Q2: Is the Z Type Bucket Elevator suitable for food processing?

A: Yes. With food-grade materials and an enclosed conveying structure, it is suitable for hygienic food processing applications.

Q3: Does the bucket conveyor damage fragile products?

A: No. The bucket lifting method provides gentle transportation and helps reduce material breakage.

Q4: Can the lifting height be customized?

A: Yes. The lifting height, hopper design, discharge position, and conveyor configuration can be customized according to production requirements.

Q5: Can it connect with automatic packaging equipment?

A: Yes. The Z Type Bucket Elevator can be integrated with weighing, filling, and packaging machines to create an automatic feeding system.

Q6: How easy is maintenance?

A: The equipment features a simple structure with easy access for inspection, cleaning, and routine maintenance.

Q7: What industries use this equipment?

A: It is widely used in food processing, agriculture, packaging, pharmaceutical, chemical, feed, and industrial material handling industries.
