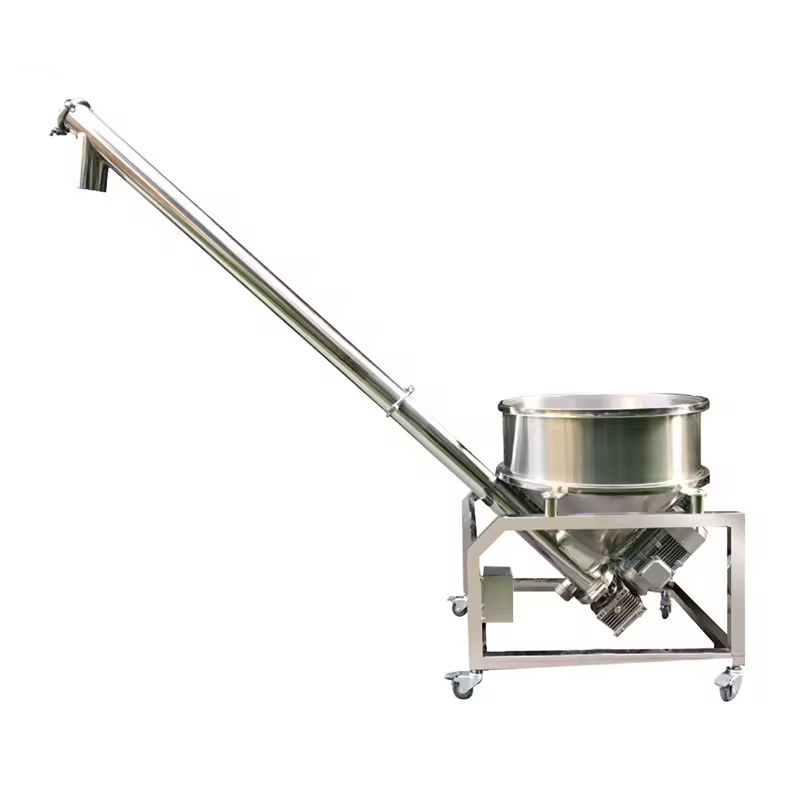

Screw Conveyor Spiral Cement Auger
- This screw conveyor is a customizable machine. We can design and manufacture a screw conveyor according to customers’ specific requirements.
- The screw conveyor also be called as other name in different country, for example, sometimes will also named it as pipe screw conveyor; auger conveyor; trough shaped screw conveyor; screw feeder; U-type screw conveyor and so on.
- Using seamless steel pipe, good sealing
- Thickened blade, durable, wear resistant
- Simple structure, convenient cleaning and maintenance
- Using external bearing chamber to avoid material entering
$1,380.00
CompareModels of the Screw Conveyor
| Model | C100 | C120 | C140 | C160 | C200 | C250 | C300 | C400 |
| Diameter of screw (mm) | 90 | 115 | 135 | 163 | 185 | 237 | 285 | 362 |
| Speed of main axis (r/min) | 300 | 300 | 300 | 308 | 260 | 200 | 170 | 170 |
| Diameter of main case(mm) | 108 | 133 | 159 | 194 | 219 | 273 | 325 | 402 |
| Max capacity (t/h) | 7 | 10 | 15 | 25 | 40 | 60 | 90 | 120 |
| Max conveying length (m) | 8 | 10 | 12 | 15 | 18 | 25 | 25 | 25 |
| Working angle (degree) | 0～60 | 0～60 | 0～60 | 0～60 | 0～60 | 0～60 | 0～60 | 0～60 |
Main Features
- Small size and rapid rotary speed, which ensures rapid and average conveying.
- Good sealing quality and rigidity. The outer casing is made of seamless steel pipes, and the end caps are connected with flanges.
- Modular design and excellent fabricating.
- Inlets and outlets can be configured as required.
- Dust-tight housing, high degree of sanitation.
