Z Type Bucket Elevator for Bulk Material Transfer System

Z Type Bucket Elevator Product Introduction

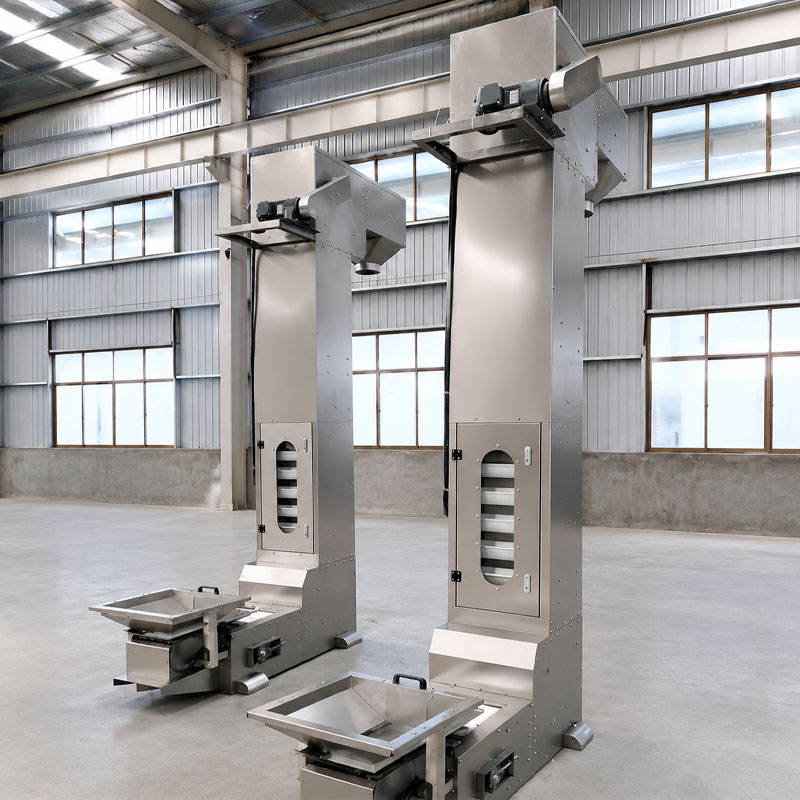

The Z Type Bucket Elevator is an advanced material handling system designed to transport various granular and powder materials through a continuous bucket conveying mechanism. Different from traditional vertical lifting equipment, it integrates horizontal feeding, vertical elevation, and horizontal discharge into a compact Z-shaped layout, providing greater flexibility for modern production lines.

The equipment uses buckets suspended on a belt or chain inside a fully enclosed shell. Materials are collected from the feeding point, lifted smoothly through the vertical section, and discharged accurately at the required height. This structure allows single-point or multi-point feeding and unloading according to different production requirements.

With its enclosed design, the Bucket Elevator helps prevent material leakage, dust pollution, and external contamination. The gentle conveying process reduces impact on products, making it especially suitable for fragile materials where breakage and product loss need to be minimized.

The system is widely used for transporting non-viscous powders, granules, and small bulk materials in food processing, agriculture, chemical, pharmaceutical, and packaging industries. Its flexible configuration, compact footprint, and reliable performance make it an ideal choice for automated material transfer applications.

Working principle

The Z Type Bucket Elevator operates through a series of buckets connected to a moving chain or belt inside a closed conveyor housing. During operation, materials enter through the feeding hopper and are collected by the moving buckets.

The buckets transport materials horizontally before moving upward through the vertical section. After reaching the designated height, the buckets continue along the horizontal discharge section and release the materials into the next processing stage.

After unloading, the empty buckets return to the feeding position to complete the next conveying cycle. This continuous circulation enables efficient and controlled material transfer.

Customization Options

Conveying Layout

The conveying route, including feeding position, lifting height, and discharge direction, can be customized according to factory layout.

Bucket Configuration

Bucket size, quantity, and material can be adjusted according to different material characteristics and capacity requirements.

Feeding Method

Single-point or multi-point feeding options are available for different production processes.

Discharge Design

The discharge position and unloading method can be customized to connect with downstream equipment.

Material Selection

Different construction materials can be selected according to application requirements, including food-grade and industrial configurations.

Product Parameter Table

Item	Specification
Equipment Type	Z Type Bucket Elevator
Conveying Height	1800–4500 mm
Bucket Volume	1.8 L / 4 L
Bucket Material	Food Grade White PP / SUS304 Stainless Steel
Conveying Speed	40–75 Buckets/min
Vibrating Hopper Size	550 × 550 mm
Motor Power	0.75 kW
Power Supply	220V, 50Hz/60Hz, Single Phase

Main Features

Z-Shaped Conveying Structure

The unique Z-shaped configuration combines horizontal conveying, vertical lifting, and horizontal discharge functions, reducing the need for multiple conveying machines and optimizing production space.

Gentle Material Handling

The bucket lifting method provides smooth transportation with low impact, helping maintain the original shape and quality of fragile products while reducing defective products caused by excessive handling.

Fully Enclosed Conveyor Design

The closed shell structure prevents material leakage and reduces dust generation, creating a cleaner and safer working environment.

Flexible Feeding and Discharging Options

The Z Type Bucket Elevator supports single-point or multi-point feeding and unloading, allowing it to adapt to different production line layouts.

Low Material Damage Rate

The controlled bucket movement ensures stable transportation and minimizes product breakage, making it suitable for delicate granular materials.

Wide Material Compatibility

It can handle various non-viscous materials, including powders, granules, seeds, grains, snacks, and other free-flowing products.

Space-Saving Installation

The vertical lifting section reduces floor space requirements while achieving efficient height transfer between different production stages.

Stable and Reliable Operation

The simple mechanical structure provides continuous operation, low maintenance requirements, and long service life.

Application Scenarios

Food Processing Industry

The Z Type Bucket Elevator is suitable for transporting snacks, nuts, seeds, grains, sugar, and other food ingredients where hygienic handling and low product damage are required.

Automatic Packaging Production Line

It can provide continuous feeding for weighing machines, filling machines, and packaging systems to improve automation efficiency.

Grain and Agricultural Processing

The system is widely used for conveying rice, wheat, beans, seeds, and other agricultural products between different processing stages.

Snack and Confectionery Production

The gentle bucket movement helps transfer chips, candies, cookies, and similar fragile products without excessive breakage.

Pharmaceutical Manufacturing

The enclosed conveying structure supports clean transportation of pharmaceutical granules and powder materials.

Chemical Material Handling

It can safely transfer non-viscous chemical powders and granules in industrial production environments.

Feed Processing Plant

The equipment can handle feed pellets, additives, and other granular ingredients used in animal feed production.

Plastic Granule Transportation

It is suitable for moving plastic particles and pellets in automated manufacturing systems.

Material Handling Capability

The Z Type Bucket Elevator is suitable for:

• granular material
• powder material
• seed material
• grain product
• snack product
• sugar material
• plastic pellet
• pharmaceutical granule
• chemical particle
• feed ingredient

Advantages of Z Type Bucket Elevator

The Z Type Bucket Elevator provides an efficient solution for manufacturers looking to improve material transfer efficiency while maintaining product quality. Its enclosed bucket conveying method ensures stable movement with minimal material loss and contamination risks.

Compared with conventional conveying equipment, it offers greater flexibility because it can combine multiple conveying directions within one compact system. This reduces equipment requirements and simplifies production line design.

For industries handling fragile or valuable materials, the Z Type Bucket Elevator offers significant advantages by reducing breakage, improving feeding accuracy, and supporting continuous automated production.

FAQ

Q1: What materials can the Z Type Bucket Elevator transport?

A: It is mainly designed for non-viscous powder and granular materials, including grains, seeds, snacks, sugar, pellets, and industrial granules.

Q2: Can the Z Type Bucket Elevator reduce material damage?

A: Yes. The bucket conveying method provides gentle transportation and reduces impact during lifting, making it suitable for fragile products.

Q3: Is the equipment fully enclosed?

A: Yes. The closed shell design helps prevent dust, leakage, and external contamination during operation.

Q4: Can the feeding and discharge points be customized?

A: Yes. Single-point or multiple feeding and unloading configurations can be designed according to production requirements.

Q5: What industries commonly use this equipment?

A: It is widely used in food processing, packaging, grain processing, pharmaceutical, chemical, agricultural, and feed industries.

Q6: Can the lifting height be customized?

A: Yes. The conveying height, structure layout, and discharge position can be customized according to customer needs.

Q7: What is the maintenance requirement?

A: The equipment has a simple structure and requires regular inspection, cleaning, and lubrication for stable long-term operation.
