Automatic Z Type Bucket Elevator for Snack Food Conveying

Product introduction of Automatic Z Type Bucket Elevator

The Automatic Z Type Bucket Elevator is an advanced conveying system designed to transport granular, powder, and bulk materials efficiently between different production levels. By combining vertical lifting and horizontal conveying in one compact Z-shaped structure, this equipment provides a flexible solution for modern automated production lines.

Unlike traditional conveyors, the Z Type Bucket Elevator uses a series of buckets connected to a belt or chain system to collect, lift, and discharge materials accurately. This design ensures stable transportation while minimizing material spillage, breakage, and waste.

The enclosed conveying structure helps protect materials from external contamination and creates a cleaner working environment. With adjustable lifting height, conveying speed, bucket capacity, and configuration options, the equipment can be customized according to different production requirements.

The Z Type Bucket Elevator is widely used in food processing, snack production, grain handling, agricultural processing, chemical manufacturing, pharmaceutical production, and packaging industries. It can work together with weighing machines, filling machines, and automatic packaging systems to achieve efficient and continuous material feeding.

Working principle

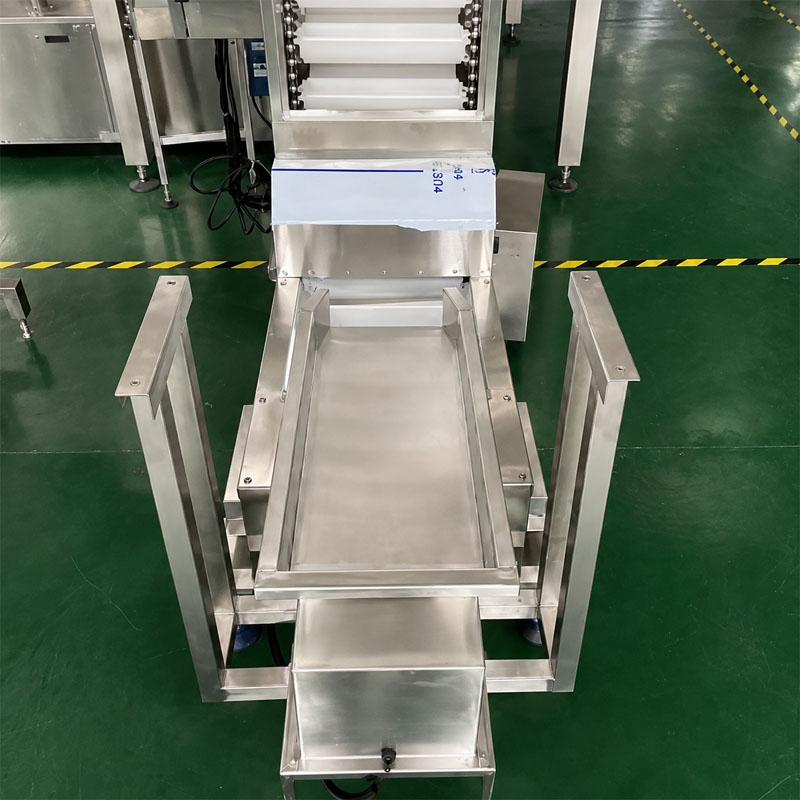

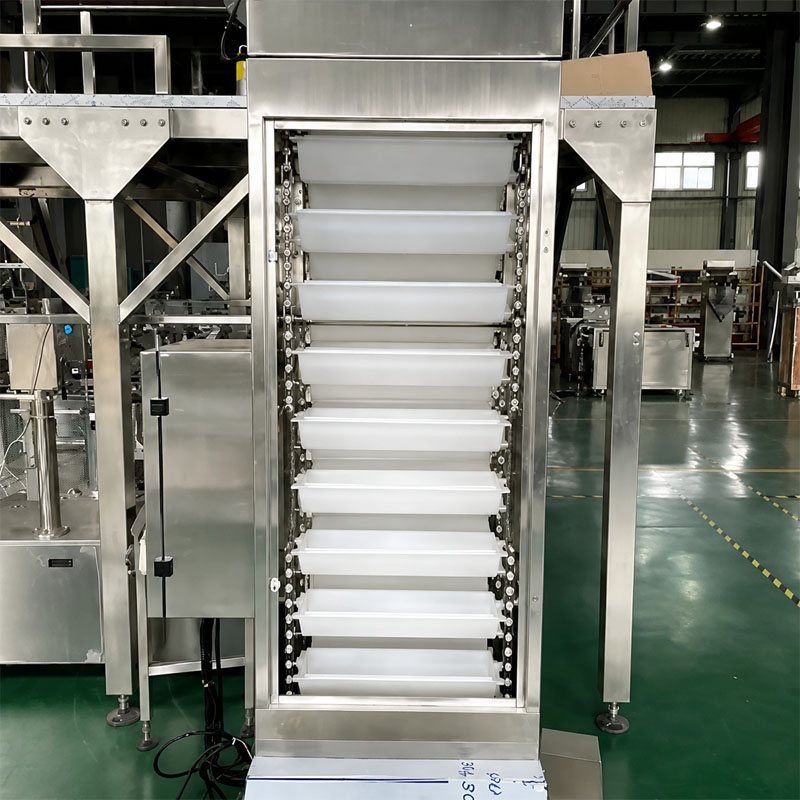

The Automatic Z Type Bucket Elevator operates through a continuous belt or chain-driven bucket system. Materials are loaded into the feeding section and collected by moving buckets. The buckets then transport materials upward through the vertical section and move along the horizontal section before accurately discharging the products at the required height.

After unloading, empty buckets return to the feeding area to begin the next conveying cycle. This continuous operation ensures stable and efficient material transfer for automated production systems.

Product Parameter Table

Item	Specification
Hopper Capacity	1.0 L / 1.8 L / 3.6 L
Hopper Surface	Dimple Surface / Plain Surface
Power Supply	Single Phase / Three Phase, 220V/380V, 50/60Hz
Motor Power	0.4 kW / 0.75 kW / 1.5 kW / 2.2 kW
Conveying Capacity	2.5 / 4 / 8 m³/h
Machine Dimension	Customized According to Customer Requirements
Vibrating Feeder Type	Detached / Independent Vibrating Feeder
Feeder Volume	70 L / 100 L / 150 L / 200 L
Discharge Funnel Type	Single / Double / Multiple Outlet

Main Features

Efficient Z-Shaped Conveying Design

The Z-shaped structure allows materials to be lifted vertically and transferred horizontally, reducing installation space while improving production line flexibility.

Gentle Material Transportation

The bucket conveying method provides smooth handling of products, helping prevent breakage and maintaining product quality during transportation.

Durable Construction

The Automatic Z Type Bucket Elevator is manufactured with strong materials such as stainless steel or carbon steel, providing excellent durability and reliable operation in demanding industrial environments.

Automatic Feeding Operation

The system can achieve automatic material feeding and continuous transportation, reducing manual operation requirements and improving production efficiency.

Customizable Configuration

The equipment can be customized according to material characteristics, conveying height, bucket quantity, conveyor speed, and production line layout.

Enhanced Safety Protection

Safety covers, emergency stop systems, and interlock protection options help ensure safer operation and reduce potential risks.

Stable and Reliable Performance

The optimized structure provides smooth running performance, low maintenance requirements, and long service life.

Easy Maintenance

The simple mechanical design allows convenient cleaning, inspection, and maintenance, reducing downtime during operation.

Application Scenarios

Snack Food Production

The Automatic Z Type Bucket Elevator is suitable for transporting chips, nuts, candies, cookies, and other snack products while reducing product damage.

Grain Processing Industry

It can efficiently handle rice, wheat, corn, seeds, and other grain materials in agricultural processing facilities.

Food Packaging Lines

The equipment provides stable feeding for weighing machines, packing machines, and automatic filling systems.

Pharmaceutical Manufacturing

The enclosed design supports clean transportation of tablets, capsules, granules, and powder materials.

Chemical Industry

It can be used for transferring industrial granules, powders, and small particle materials safely and efficiently.

Feed Production

The system is suitable for conveying animal feed pellets, additives, and other granular feed ingredients.

Agricultural Product Processing

It provides reliable transportation for seeds, beans, pulses, and other agricultural products.

Plastic Granule Handling

The Automatic Z Type Bucket Elevator can transport plastic pellets and similar small particles in automated production systems.

Material Handling Capability

The Automatic Z Type Bucket Elevator is suitable for handling:

• granular materials
• powder materials
• seeds
• grains
• nuts
• snacks
• sugar
• salt
• plastic pellets
• pharmaceutical granules
• chemical particles
• feed pellets

Advantages of Automatic Z Type Bucket Elevator

The Automatic Z Type Bucket Elevator provides manufacturers with a practical solution for automated material transfer. Its compact Z-shaped design combines lifting and conveying functions, reducing the need for multiple conveying machines and optimizing factory space.

The gentle bucket transportation method protects product appearance and quality, making it especially suitable for fragile materials. The enclosed structure improves cleanliness, reduces dust pollution, and supports hygienic production requirements.

With customizable designs and reliable automation features, this equipment helps companies improve production efficiency, reduce labor costs, and achieve consistent material feeding performance.

Optional Customization

Lifting Height

The lifting height can be customized according to different factory layouts and production requirements.

Bucket Capacity

Different bucket sizes can be selected based on material volume and required conveying capacity.

Material Selection

Stainless steel or carbon steel structures are available according to application requirements.

Conveyor Speed

The running speed can be adjusted to match different production line speeds.

Control System

Automatic control options can be integrated with existing production equipment.

FAQ

Q1: What materials can the Automatic Z Type Bucket Elevator transport?

A: It can transport various bulk materials, including grains, seeds, nuts, snacks, sugar, powder products, plastic granules, feed pellets, and chemical particles.

Q2: Can this equipment prevent product damage?

A: Yes. The bucket conveying method provides gentle transportation and reduces impact, making it suitable for fragile products.

Q3: Is the lifting height customizable?

A: Yes. The equipment can be designed with different lifting heights according to customer production requirements.

Q4: Can it connect with automatic packaging machines?

A: Yes. The Automatic Z Type Bucket Elevator can be integrated with weighing systems, filling machines, and packaging equipment.

Q5: What materials are available for machine construction?

A: Stainless steel and carbon steel options are available depending on industry requirements.

Q6: How often does the equipment require maintenance?

A: The equipment features a simple structure and requires minimal maintenance with regular inspection and cleaning.

Q7: Is it suitable for food processing applications?

A: Yes. Stainless steel construction and enclosed conveying design make it suitable for hygienic food processing environments.
