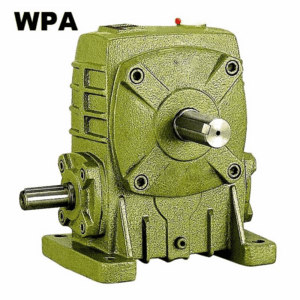

WP Series Reducers, Customizable Worm Gear Reducers for Agricultural Machinery & Farming Applications
WP Series Reducers, Customizable Worm Gear Reducers for Agricultural Machinery & Farming Applications - Image 2
WP Series Reducers, Customizable Worm Gear Reducers for Agricultural Machinery & Farming Applications - Image 3

WP Series Reducers, Customizable Worm Gear Reducers for Agricultural Machinery & Farming Applications

Compare

The WP series reducers are worm gear reduction devices with a 90° right-angle drive, featuring three key attributes: a large reduction ratio, smooth transmission and flexible installation. Adopting high-quality steel worms, tin bronze/aluminum bronze worm gears and cast iron/aluminum alloy housings, they offer optional single/double-stage transmission with specifications ranging from WP40 to WP250. Adaptable to various installation methods and working conditions, they have an input power of 0.12-33.2kW and an output torque of 6-9066N·m, serving as the core components for speed reduction transmission of equipment in the plastics, metallurgy, mining, hoisting, chemical engineering and other industries.

$75.00

Compare

Product Description:
WP Series Reducers, Customizable Worm Gear Reducers for Agricultural Machinery & Farming Applications

The WP series reducers are the mainstream 90° right-angle drive worm gear reducers in the industrial field, featuring three core advantages: a large reduction ratio, smooth transmission, and flexible installation. Adopting a classic structure consisting of high-quality steel worms, tin bronze/aluminum bronze worm gears and cast iron/aluminum alloy housings, they integrate five superior features: speed reduction and torque increase, low-noise operation, self-locking safety, adaptability to various working conditions and easy installation. They address the pain points of traditional transmission equipment such as large space occupation, poor low-speed stability and difficult installation adaptation. Suitable for various industries including plastics, metallurgy, mining, hoisting, chemical engineering and construction, they serve as the core basic components for speed reduction transmission and low-speed high-torque output of various mechanical equipment.
Product Parameters：

Input power
0.12KW-15KW
Ratio
10-60
Input torque
0-3200N.m
IEC flange
AM63-AM160
Color
Customer specified
Material
Casing, cover and flange：HT200
Material
Worm wheel core: HT200
Material
Worm gear tooth ring:  ZCuAl10Fe3


Application Scenarios：

Plastic Machinery

Screw drive for extruders, injection molding machines and blow molding machines; precisely controls process rotational speeds and is suitable for processing various plastic raw materials.

Metallurgical Equipment

For metallurgical conveyors, hoists and steel rolling auxiliary equipment; delivers stable low-speed high torque and withstands heavy loads and continuous operation conditions.

Mining Machinery

Applied to crushers, feeders and mine winches; adapts to dusty and vibrating environments and ensures reliable equipment operation.

Hoisting and Conveying

For cranes, conveyer belts and elevators; the self-locking function prevents slipping, meeting the requirements for frequent start-stop and smooth operation.

Chemical Equipment

Used for agitators, chemical pumps and reaction kettles; corrosion-resistant materials are suitable for acid and alkali media, satisfying the needs of low-speed stirring and power transmission.

Contact us to get your quotation now.
