Network Cabinet Description:
Item | Value |
Products Status | Stock |
Cabinet Standard | ANS/EIA RS-310-D |
Material | SPCC Cold Rolled Steel |
Size | 18u 22u 27u 32u 37u 42u |
USE | FTTX |
Application: | Optical Management Network |
COLOR | Gray or customized |
Feature
1 Sturdy construction, Static load 800kgs (with fixed feet or Castors). You can use the 2 at the same time giving more firmly to the rack.
2 Perfect ventilation. Vented front glass door, allowing ventilation accurate and reliable operation.

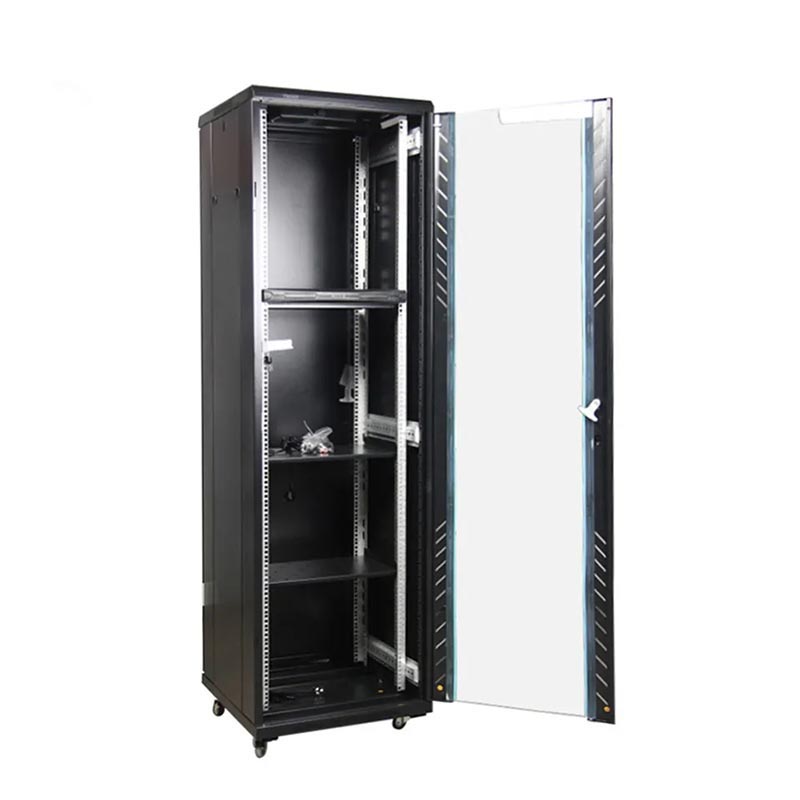

3 Tempered glass front door with over 180 turning degree, easy to assemble and operate.
4 Good compatibility, ability to adapt to multiple servers at once.
5 Front and rear brackets, the adjustable equipment market units.
6 The upper and lower wiring closable entry and adjust.
7 Side panel mounting frame easily.
8 Trigger lock type.
9 It includes grounding screw.
10 It includes tray, blind back door and cage nut bolts (see quantity of each item depending on model).
No.
|
Description
|
Quantity(PCS)
|
Thickness(MM)
|
1
|
Front&back frames
|
2
|
1.2
|
2
|
Horizontal beam
|
4/6
|
1.2
|
3
|
19’ Column
|
4
|
2.0
|
4
|
Top cover
|
1
|
1.2
|
5
|
Bottom
|
1
|
1.2
|
6
|
Fan plate
|
1
|
1.0
|
7
|
Decorative plate
|
3
|
1.0
|
8
|
Cable plate
|
5
|
1.0
|
9
|
Baffle plate
|
optional
|
1.2
|
10
|
Castor
|
4
|
/
|
11
|
Side door
|
2
|
1.0
|
12
|
Front glass door
|
1
|
1.2
|
13
|
T type glass door
|
1 (optional)
|
1.2
|
14
|
T type reticulate door
|
1 (optional)
|
1.2
|
15
|
Arc type reticulate door
|
1 (optional)
|
1.2
|
16
|
Glass reticulate door
|
1 (optional)
|
1.2
|
17
|
Back door
|
1
|
1.2
|
18
|
Reticulate Double door
|
1 (optional)
|
1.2
|
19
|
Flat reticulate door
|
1 (optional)
|
1.2
|
