Network Cabinet Specification:
Material | Frame: Nine-folded profiled (SPCC);
SPCC quality cold rolled steel; |
Loading Capacity | Static loading: 800kg (on the adjustable feet) |
Degree of protection | IP20 |
Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
Product Specification | 18U-47U Width: 600mm, 800mm Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm |

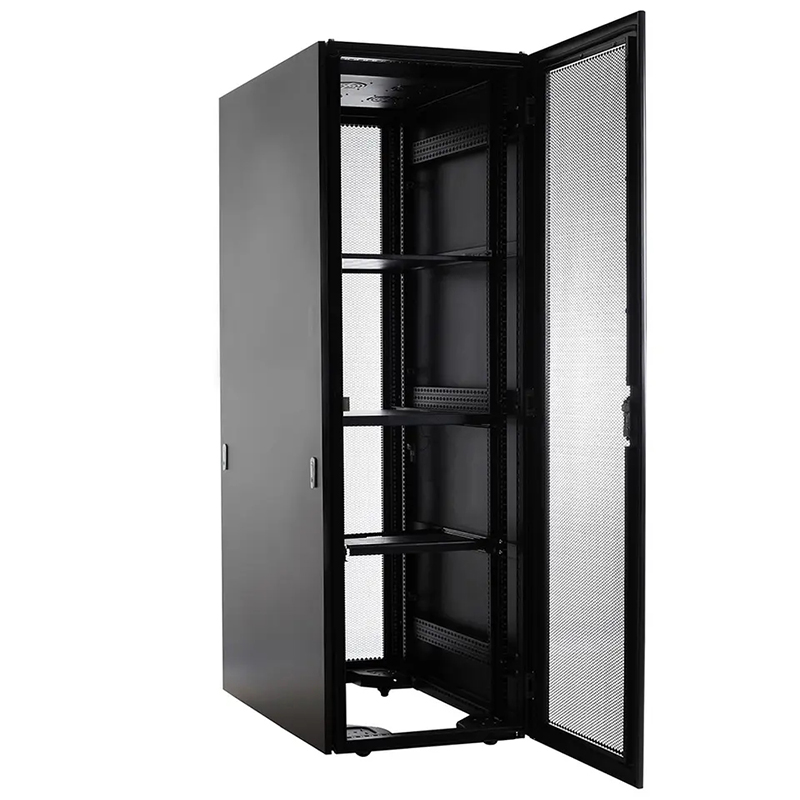

Network Cabinet Main Structure (600mm Width)
1. Cable entrance
2. Perforated rear door (dual open)
3. Mounting profile
4. Nine-folded profile
5. Mounting angle
6. Supporting corner
7. Castor
8. Top cover
9. Fan tray
10. Side panel
11. Perforated front door (Single open)
