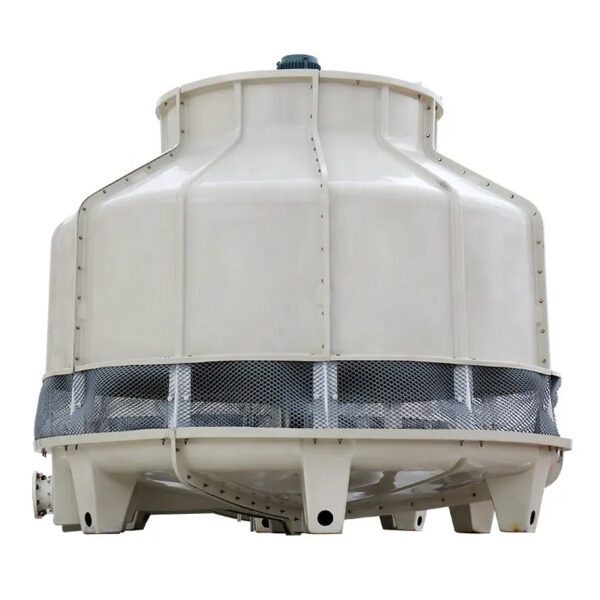

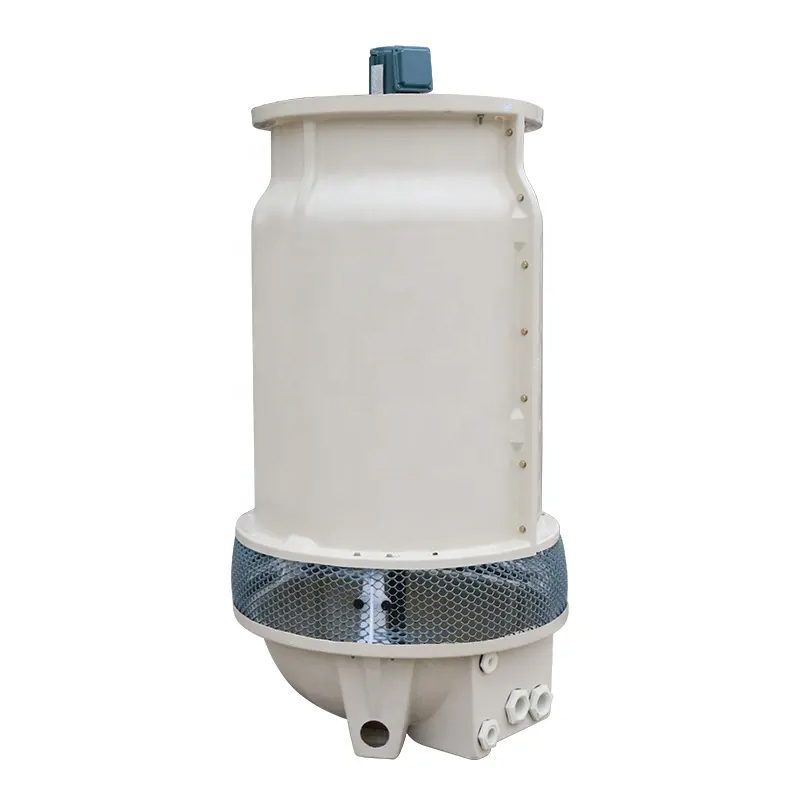

Water Cooling Tower 8T – 200T High Quality Low Noise Water System Small Closed Cooling Tower for Industrial
NOTE: Prices may vary by product model and material.
- The exterior of the tower body is made of imported gel coat, and the interior is made of high-quality glass fiber reinforced plastic.
- Stainless steel bearings, flexible operation, even water distribution; ABS water pipe is used, and a water collecting plate is installed on the water pipe.
- Low noise ABS fan blades designed according to cooling tower parameters.
- Copper Core Motor.
- Float Valve. It has the function of automatic switch pipeline and can control the water level.
$1,001.00
CompareMODELS OF THE Water Cooling Tower
| Model | Flow rate | Blowing rate | Motor | Noise | Net weight | Operating weight | Diameter | Height |
| ST8 | 6.23m³/h | 70m³/h | 0.18kw | 45.5dBA | 42kg | 180kg | 945mm | 1385mm |
| ST10 | 7.81m³/h | 85m³/h | 0.18kw | 47dBA | 46kg | 190kg | 945mm | 1535mm |
| ST15 | 11.7m³/h | 140m³/h | 0.37kw | 48dBA | 54kg | 290kg | 1195mm | 1420mm |
| ST20 | 15.6m³/h | 160m³/h | 0.56kw | 50dBA | 67kg | 300kg | 1195mm | 1595mm |
| ST25 | 19.5m³/h | 200m³/h | 0.75kw | 52dBA | 98kg | 500kg | 1400mm | 1825mm |
| ST30 | 23.4m³/h | 230m³/h | 0.75kw | 54dBA | 116kg | 530kg | 1650mm | 1710mm |
| ST40 | 31.2m³/h | 280m³/h | 1.5kw | 56.5dBA | 130kg | 550kg | 1650mm | 1780mm |
| ST50 | 39.2m³/h | 330m³/h | 1.5kw | 57.5dBA | 190kg | 975kg | 1830mm | 1840mm |
| ST60 | 46.8m³/h | 420m³/h | 1.5kw | 57dBA | 240kg | 1250kg | 2100mm | 1960mm |
| ST80 | 62.6m³/h | 450m³/h | 1.5kw | 59dBA | 260kg | 1280kg | 2100mm | 2040mm |
| ST100 | 78.1m³/h | 700m³/h | 2.25kw | 60dBA | 500kg | 1600kg | 2900mm | 2375mm |
| ST125 | 97.6m³/h | 830m³/h | 2.25kw | 60dBA | 540kg | 1640kg | 2900mm | 2555mm |
| ST150 | 117m³/h | 950m³/h | 2.25kw | 60dBA | 580kg | 1680kg | 2900mm | 2555mm |
| ST175 | 137m³/h | 1150m³/h | 3.75kw | 60dBA | 810kg | 1910kg | 3310mm | 3165mm |
| ST200 | 156m³/h | 1250m³/h | 3.75kw | 60dBA | 830kg | 1930kg | 3310mm | 3165mm |
Tower Body
The exterior of the tower body is made of imported gel coat, and the interior is made of high-quality glass fiber reinforced plastic.
Filler
The applicable temperature of the normal temperature cooling tower packing is 0-60 degrees，which water distribution capacity is strong and the resistance is small.
Rotary Water Distributor
Stainless steel bearings, flexible operation, even water distribution; ABS water pipe is used, and a water collecting plate is installed on the water pipe.
Fan Blades
Low noise ABS fan blades designed according to cooling tower parameters.
Copper Core Motor
The low-noise motor specially designed for cooling towers has strong power and long life.
Float Valve
It has the function of automatic switch pipeline and can control the water level.
