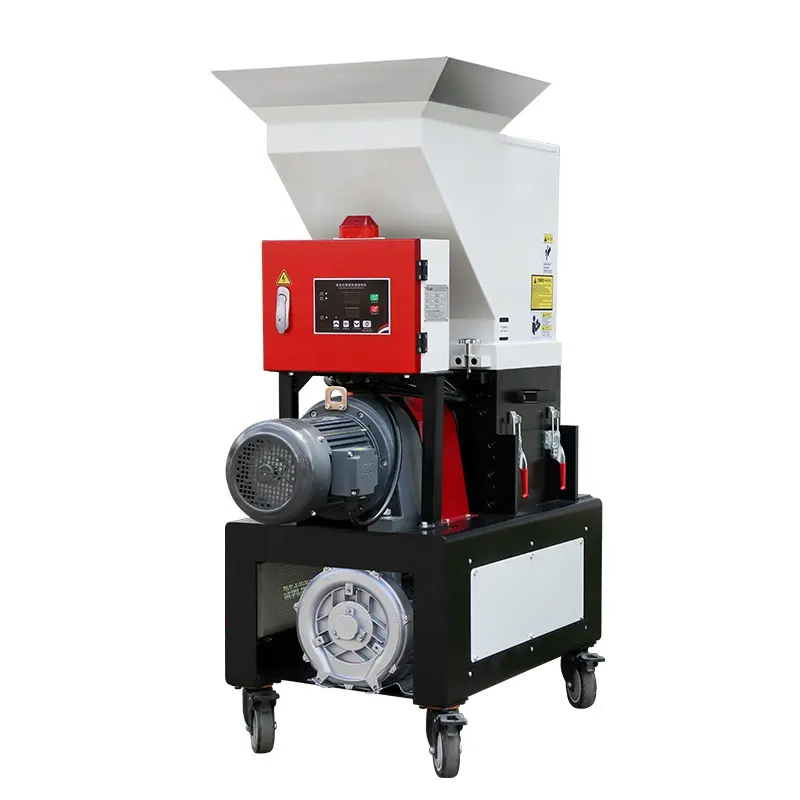

MODELS OF THE Low Speed Plastic Crusher
The new generation of low speed granulator is designed to regrind the runners from injection molding machines and recycle directly back into IMM. No screen mesh is needed. It’s a combination of stability, low noise and low powder.
Model | G01HP | G02HP | G03HP | G01HPRC | G02HPRC | G03HPRC |
Feeding Hopper Size | 505*360 | 505*470 | 505*580 | 505*360 | 505*470 | 505*580 |
Grinding Chamber(mm) | 310*200 | 310*310 | 310*420 | 310*200 | 310*310 | 310*420 |
Power | 1.1KW | 1.5KW | 2.2KW | 1.1KW | 1.5KW | 2.2KW |
Grinding Capacity(KG/H) | 10-15 | 20-25 | 22-27 | 10-15 | 20-25 | 22-27 |
Stationary Cutter | 4 | 6 | 8 | 4 | 6 | 8 |
Teeth Cutter (piece) | 2 | 3 | 4 | 2 | 3 | 4 |
Hook Cutter(piece) | 1 | 2 | 3 | 1 | 2 | 3 |
LxWxH(mm) | 945*570*1315 | 1055*570*1315 | 1200*570*1315 | 945*570*1315 | 1055*570*1315 | 1200*570*1315 |
Spindle Speed | 25 | 25 | 25 | 25 | 25 | 25 |
Conveying Blower | / | / | / | 0.37KW | 0.37KW | 0.37KW |
Note | Should be used with auto loader and proportional valve | Equipped with recycled system |
New Design Cutters
With the teeth cutters and hook cutters design, running with low rotary speed, screenless, no leftovers, evenly output and least dust produced.
Automatic Reverse Function
Capable of auto reverse running and cleaning when material stuck occurs, all-round protection of the motor.

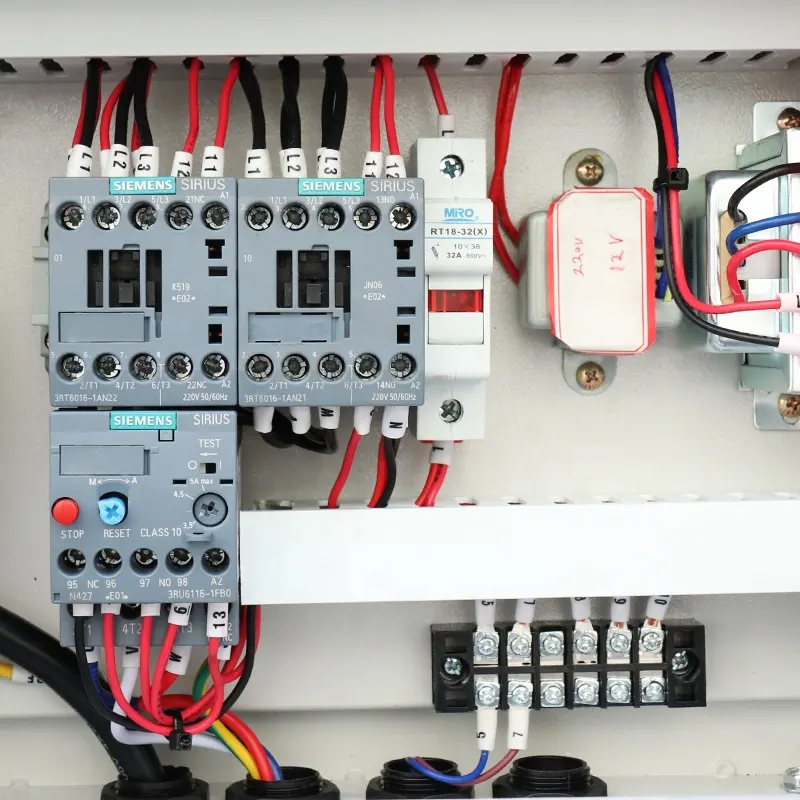

Controller
Controlled by microcomputer, easy operation and maintenance;
With timing function to turn on or off, saving energy.
Detachable Design
Fast disassembly and assembly design for processing chamber, easy to clean and maintain.
Feeding Hopper
Double layered soundproof designed feeding hopper, low noise occurs.
