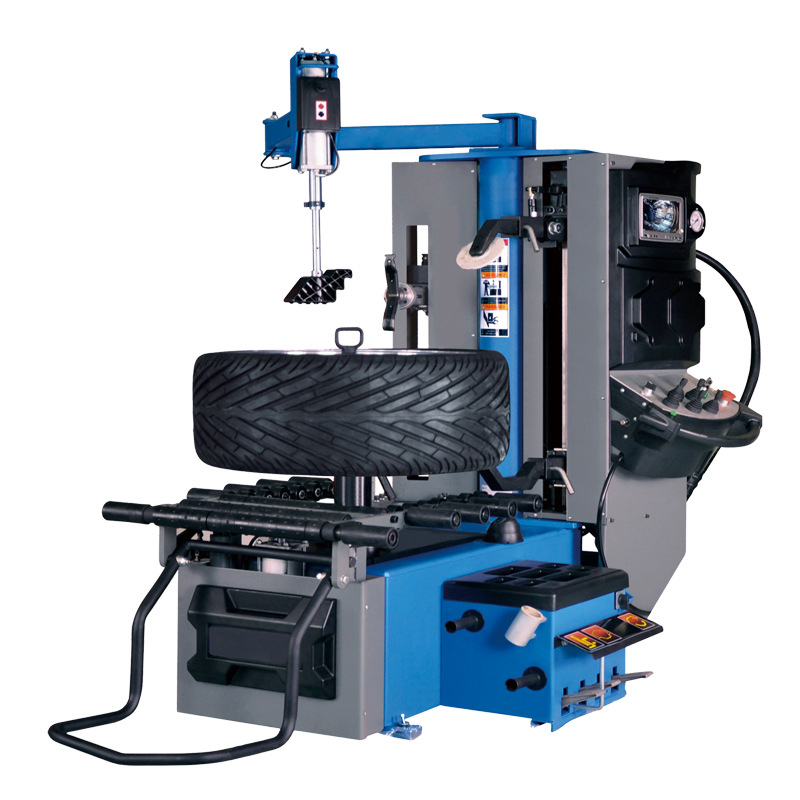

Tire repair equipment, tire changer, automatic tire changer with tires, lifting device, crowbar-free tire changer for quick inflation
Feature analysis
1. The test placenta has the function of leaning on the tire up and down, and the speed of pressing the tire is fast and the force is strong, which greatly improves the efficiency of tire removal
2. The head can be quickly and automatically changed when removing the head, improving the speed of tire removal
3. Fully automatic tire lifting device, saving manpower, equipped with an extension arm, which is convenient for lifting large tires 4. The main shaft can be adjusted in multiple gears to increase the thickness of the operating tire
5. Multi-point synchronization can be realized through switch control by the placenta and the main shaft, which greatly improves the efficiency of tire removal
Tire strength can reach 1400kg
6. The main shaft has a longitudinal adjustment function to expand the range of tire disassembly and assembly, and the tire removal head is synchronized with the main shaft
Automatic centering.
7. The humanized operation table makes the whole process of disassembling and assembling the tires easier. 8. The quick inflation device and the linkage operation of both hands are safer and more reliable.
9. The LCD monitoring system is equipped as standard, which makes tire disassembly and assembly fast and safe.
$8,500.00
Compare|
Model
|
|||
|
Rim clamping size
|
10” to 30”
|
||
|
Max.wheel diameter
|
1300mm
|
||
|
Wheel width
|
4”-15”
|
||
|
Operating pressure
|
8-10bar
|
||
|
Motor power
|
0.75/1.1kw
|
||
|
Noise Level
|
<75dB
|
||
|
Weight
|
700KGS
|
||
|
Packing size
|
1140*1280*1830mm
|
Main Features
1,Equipped with standard configuration, max.inside clamp to 30 inch, which increase the demounting size
2, Double -bending techniques, 5mm- steel bord-made column ensures handing tires in high intensity.
3, The pedal has step function, which can install the tire accurately and time saving
4, The tool box under the column and bead breaker is convenient for putting the tools and the parts
5, IT model with the quick inflation and device improves the inflation efficiency
6,The two helpers, can handle the low profile, stiff tire within the range of the technical data, and other helper is optional for the machine
7, The turnable is equipped with the wear-resistant washer and scale
8, The horizontal arm use 55mm square steel and hard chromium plating which can insure intensity and endurance
9,The use of S41 hexangular shaft secures the anti-bend strength of the hexangular shaft
