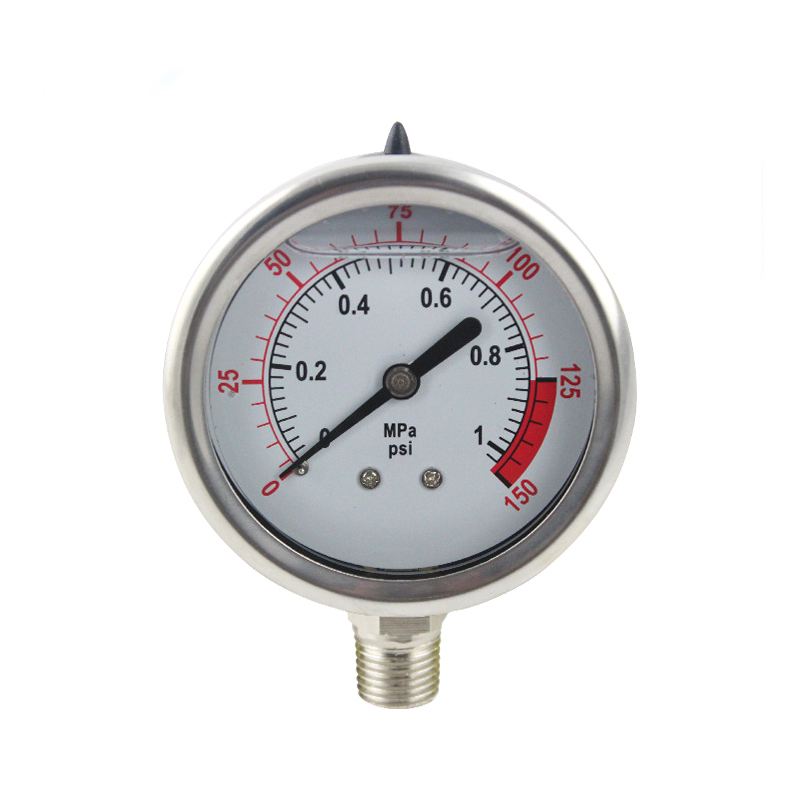

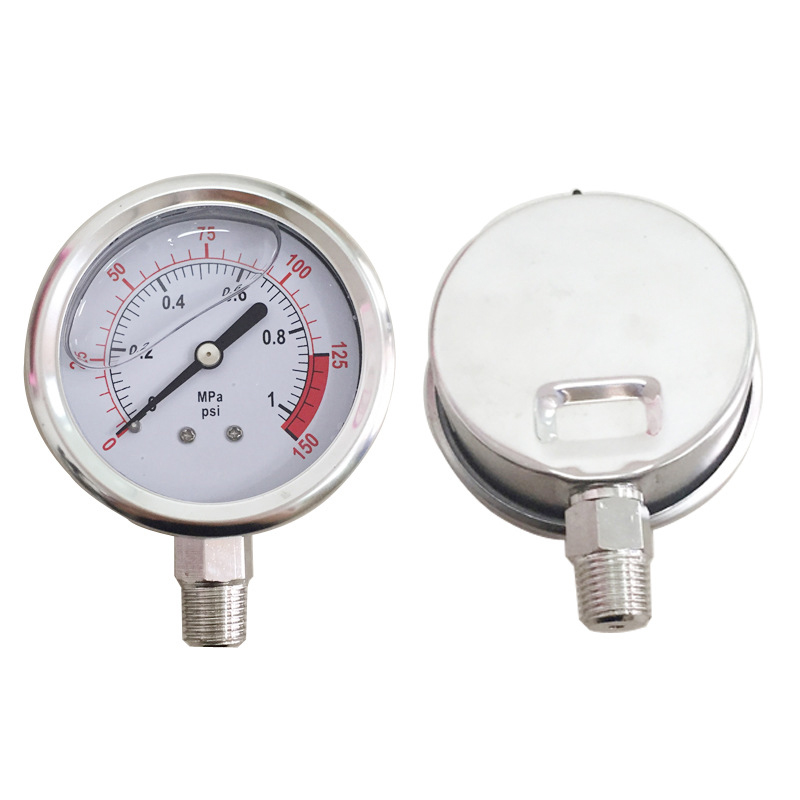

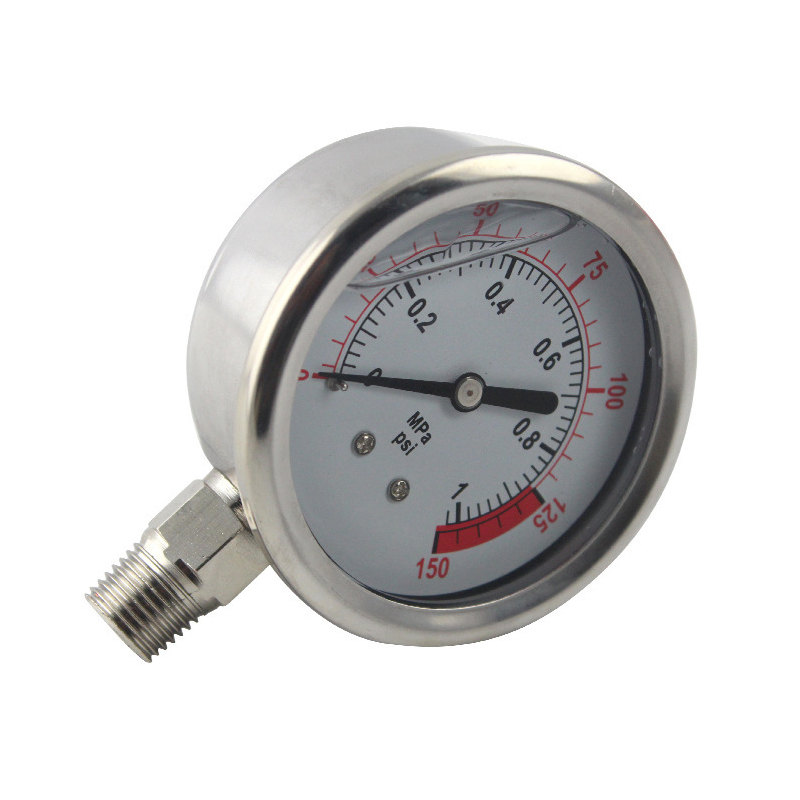

Stainless Steel 304 Single Scale Liquid Filled Pressure Gauge with Brass Internals, 2-1/2″ Dial Display, -1.5% Accuracy, 1/4″ NPT Bottom Mount,Water Pressure Gauge. (0-150 psi)
$32.00
CompareAbout this item
- Pressure range:0-1Mpa or 0-150 PSI,1/4″ NPT,Diameter of gauge: 2.5″
- LIQUID/GLYCERIN FILLED PRESSURE GAUGE,2.5″ FACE/DIAL 1/4″ MALE NPT CONNECTION
- Stainless steel case, Copper alloy wetted parts
- broad applications – water, oil, air and more
- Monitor the post R.O. water pressure and vital to the functionality of your RO system!
Application: Water, Oil, Air & Hydraulic Application

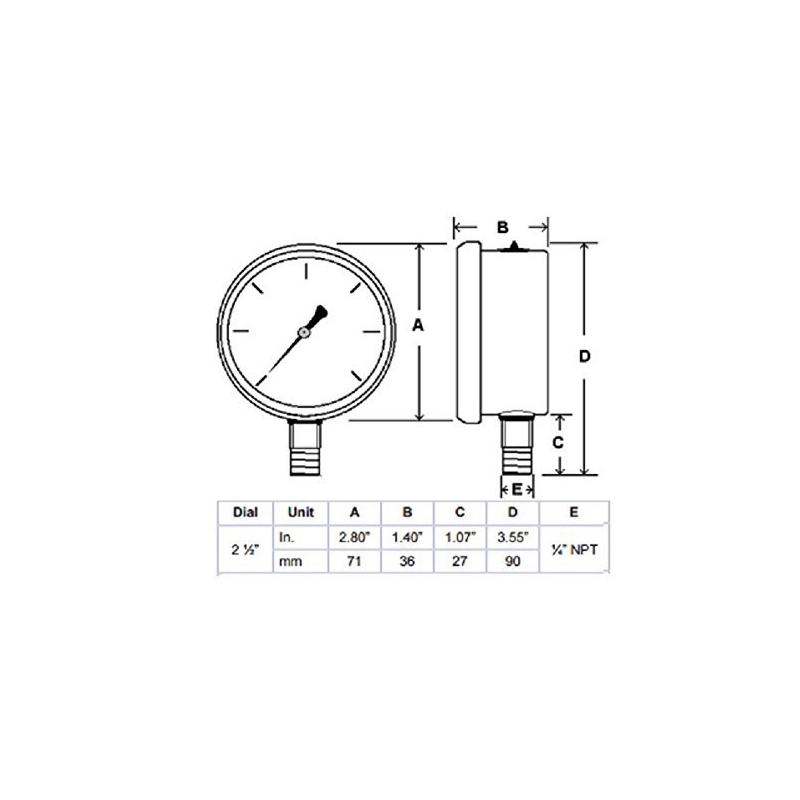

Dial Size: 2-1/2″ Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3% Scale: Dual Scale – PSI / Bar
Movement: Copper Alloy
Bourdon Tube: Copper Alloy
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Copper Alloy Lower Mount; 1/4″ NPT (for 2-1/2″ dial)
Normal Ambient Temp.: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
Based on 0 reviews
Be the first to review “Stainless Steel 304 Single Scale Liquid Filled Pressure Gauge with Brass Internals, 2-1/2″ Dial Display, -1.5% Accuracy, 1/4″ NPT Bottom Mount,Water Pressure Gauge. (0-150 psi)”
Related products
-
Pressure Gauges
Glycerin Filled Pressure Gauge with 304 Stainless Steel Case, 2.5″ Dial Size, 0-160Psi, High Accuracy, 1/4″NPT Center Lower Mount with Single Scale (psi)
Pressure GaugesGlycerin Filled Pressure Gauge with 304 Stainless Steel Case, 2.5″ Dial Size, 0-160Psi, High Accuracy, 1/4″NPT Center Lower Mount with Single Scale (psi)
- DURABLE BUILD: The stainless steel construction is built to outlast the competition from normal steel or plastic gauge. The superior quality stainless steel and brass components ensure the gauge corrosion resistance and extends the gauge life.
- ACCURACY MECHANICAL MOVEMENT DESIGN: This anolog pressure gauge is calibrated to ±2.5% to ensure an instantaneous, accurate reading; Mechanical design gives you no fear of digital failure.
- LIQUID FILLING WITH 2.5″ CLEAR DIAL : Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; Clear dial with single colors scales make it easy to read;
- WIDELY APPLICATION for meausring liquid and gas pressure including fuel pressure; Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments.
- LIFETIME SATISFACTION GUARANTEE AND FRIENDLY CUSTOMER SUPPORT,Buy with confidence,save your time and money, and enjoy accurate measure experience.
SKU: n/a -
Pressure Gauges
Diaphragm Pressure Gauge，High-pressure diaphragm pressure gauge with oil pressure
YTP series diaphragm pressure gauge is composed of a general pressure gauge of different types and an isolator composed of connectors with specific requirements. Through this connection, the general Bourdon tube pressure gauge increases the performance of measuring the pressure of medium with strong corrosion, high temperature, high viscosity or containing solid plankton and easy to solidify.
SKU: n/a -
Pressure Gauges
Water Digital Gauges Cheap Price High Quality 0-200 Psi 0-14 Bar 1/8 Npt 40mm Radial Pressure Gauge
Pressure GaugesWater Digital Gauges Cheap Price High Quality 0-200 Psi 0-14 Bar 1/8 Npt 40mm Radial Pressure Gauge
1. The normal working environment temperature of the instrument is -40°C~70°C
2. The installation point of the instrument and the measuring point should be at the same level, otherwise a correction value should be added.But it has nothing to do with the measurement gas. Usually the length of theconnecting pipe does not exceed 50 meters.
3. In order to reduce the impact of shock, vibration and the rapid change of the measured medium on the instrument,Various buffers must be added when in use.
4. The meter is suitable for measuring the pressure of non-corrosive media to copperand copper alloys.
5. The meter is generally used up to 3/4 of the upper limit of the measurement whenmeasuring stable pressure.
When measuring fluctuating pressure, it generally does not exceed 2/3 of the upperlimit of measurement.
6. The instrument in use shall be inspected every three months.SKU: n/a
