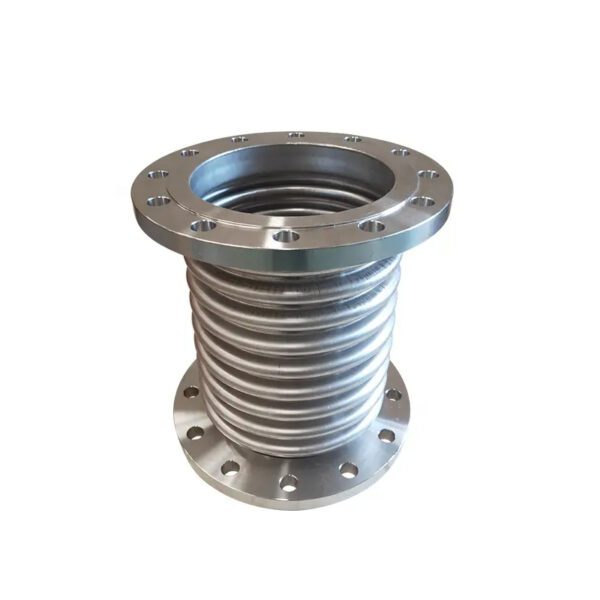

SS304 Compensator Flange metal ss multi-ply type bellow expansion joints

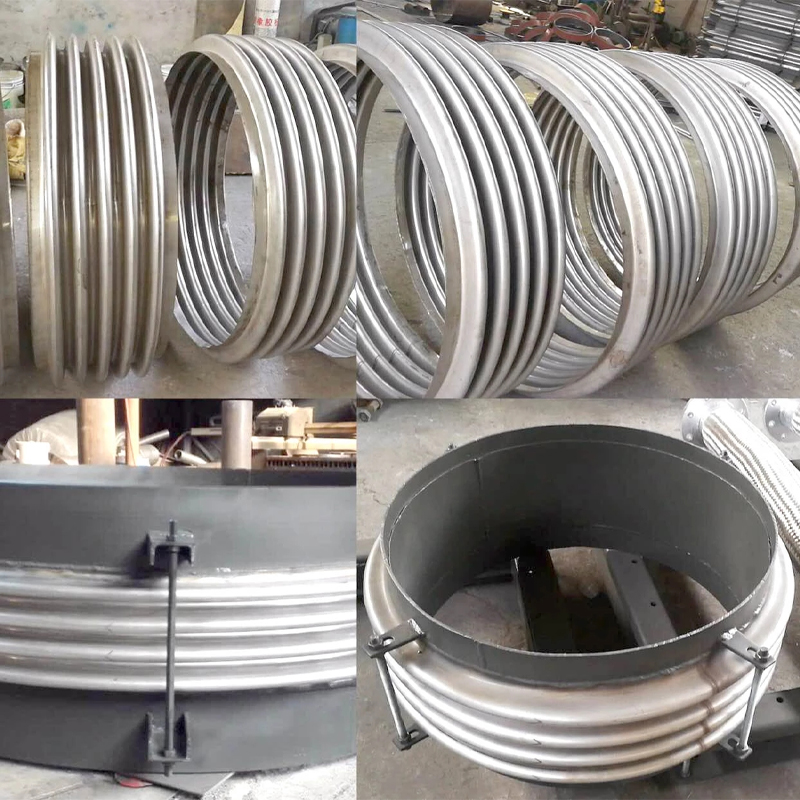

Stainless steel bellows expansion joint (Metal corrugated compensator) has excellent flexibility,light weight, corrosion resistance,high temperature resistance and high pressure resistance,it can be connected in any direction of the pipeline,it can play a role in temperature compensation, absorbing vibration,reducing noise,changing the conveying direction of medium,it can eliminate the mechanical dispalcement between pipes,between pipe and equipment,double flange metal corrugated pipe is particularly applicable for various pumps,valves and flexible joints which has a certain displacement and vibration.
$26.00
CompareSS304 Compensator Flange metal ss multi-ply type bellow expansion joints
Stainless steel bellows expansion joint (Metal corrugated compensator) has excellent flexibility,light weight, corrosion resistance,high temperature resistance and high pressure resistance,it can be connected in any direction of the pipeline,it can play a role in temperature compensation, absorbing vibration,reducing noise,changing the conveying direction of medium,it can eliminate the mechanical dispalcement between pipes,between pipe and equipment,double flange metal corrugated pipe is particularly applicable for various pumps,valves and flexible joints which has a certain displacement and vibration.
|
TIME
|
NAME
|
QUANTITY
|
MATERIAL
|
|
1
|
FLANGE
|
2
|
Q235A 304，316L
|
|
2
|
BELLOWS
|
1
|
304，316L
|
|
3
|
TIE ROD
|
3
|
Q235A 304，316L
|
