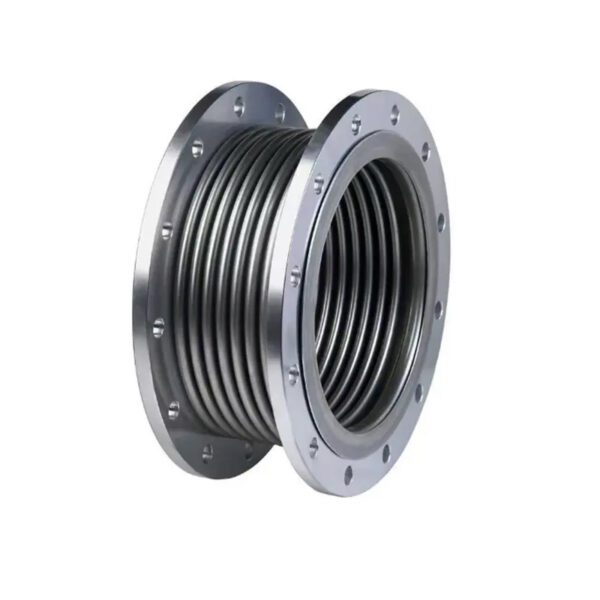

Pipe flange stainless steel corrugated expansion joint metal expansion joint bellows compensator

Corrugated compensators are also customarily called expansion joint, or expansion joints. It is composed of bellows (an elastic element) that constitutes its main body and accessories such as end pipes, bracket flanges, and conduits.

The effective expansion and contraction of the elastic elements of the bellows compensator is used to absorb the thermal expansion and contraction of pipelines, conduits, or containers.

A compensation device for dimensional changes caused by other reasons, which belongs to a compensation element that can absorb axial, lateral, and angular displacements. Calculation formula: X=A·L·ATX pipe expansion A is the line Expansion coefficient, take the length AT of 0.0133MM/ML compensation pipeline (the distance between the fixed supports of the compensation pipeline required) as the temperature difference (medium temperature – ambient temperature during installation)

Product Name: Stainless Steel Flange Compensator
Product material: stainless steel
Pressure level: 6.0 (MPa)
Product performance: explosion resistance, high temperature and pressure resistance
Working temperature: -30C~+400°C
Product use: water, steam, petroleum
Application fields: Petroleum and petrochemical, aviation equipment, machinery manufacturing, electric power equipment, chemical medicine, construction, food, etc.
