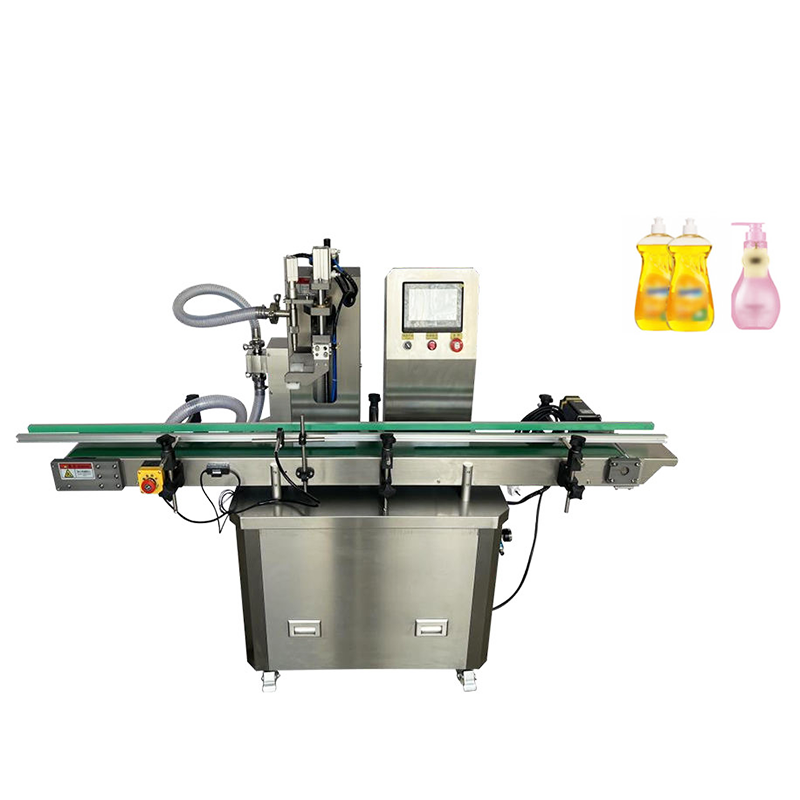

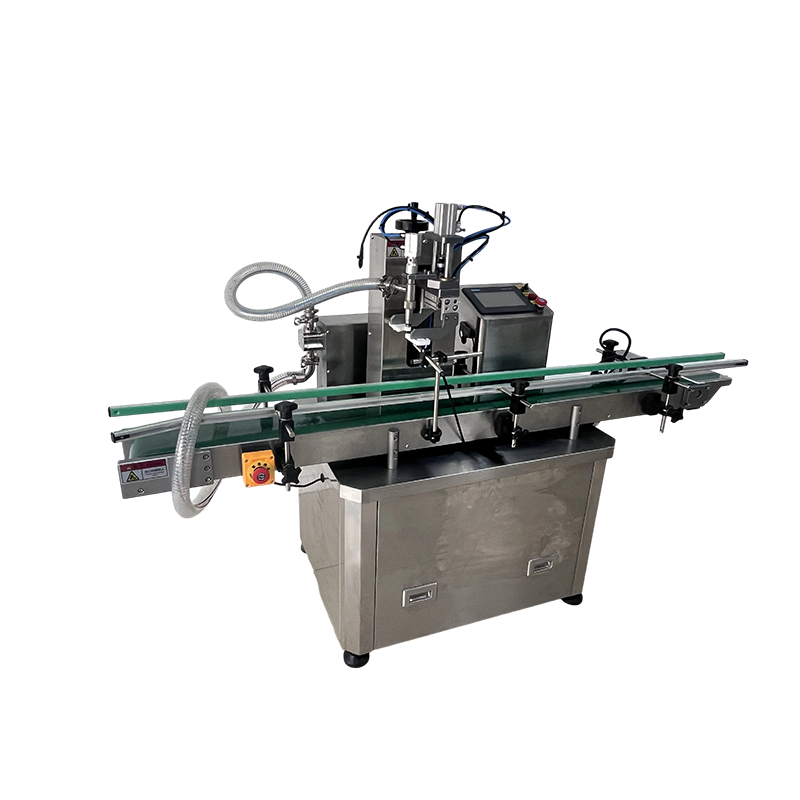

Single-Head Magnetic Pump Liquid Packaging Machine

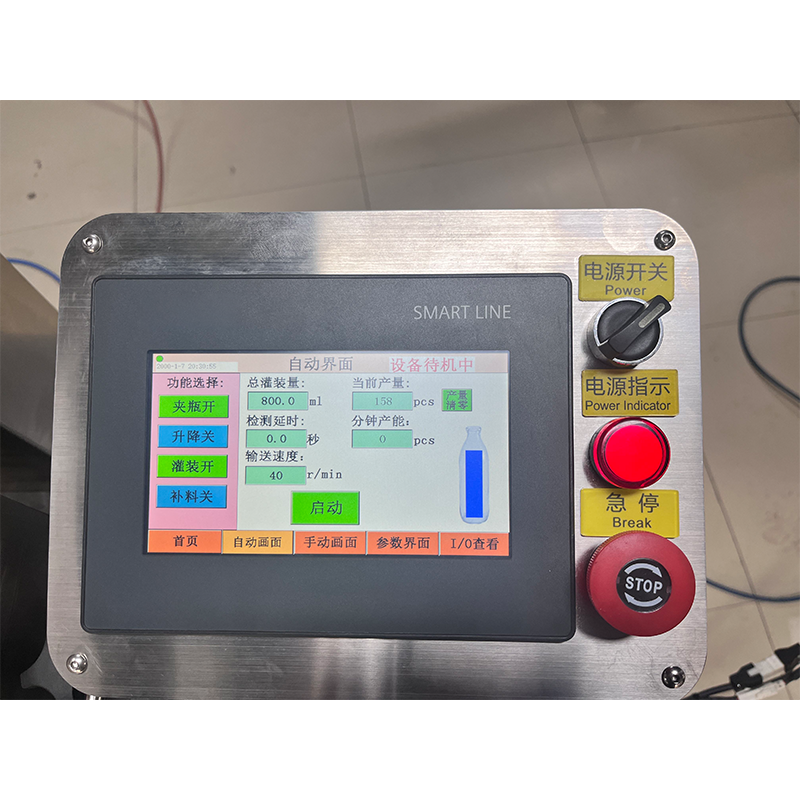

The single-head magnetic pump liquid packaging machine’s magnetic pump filling technology is optimized for viscous materials. Low-viscosity products can be filled using the self-priming mode, while high-viscosity products can be smoothly filled with a dosing hopper, making it highly versatile. The suction nozzle size and diameter can be customized as needed, perfectly fitting packaging containers of different specifications. It is equipped with a pneumatic drive system and a PLC control system, ensuring precise operation, reliable performance, and low failure rates.
$4,500.00
CompareProduct Introduction for Single-Head Magnetic Pump Liquid Packaging Machine
The single-head magnetic pump liquid packaging machine is easy to clean and maintain. The parts that come into contact with materials are detachable, leaving no sanitary dead corners, and it meets the hygiene standards of the food and cosmetics industries. It supports use in multiple industries, including cosmetics, daily chemicals, food, and beverages. When switching products, only simple parameter adjustments and nozzle replacements are required, with no need for complicated modifications, making it suitable for multi-product production needs.
Technical Parameters：
| Voltage | 220V |
| Power | 1.6kw |
| Production | 70-100pcs/min |
| Machine size | 2000x600x1300mm |
| Material | Stainless Steel |
| Product weight | 77kg |
Application Scenarios:
1. High-end Beauty Small Batch Production Line: Used for filling 50-200ml products such as creams, lotions, and serums. 99.5% high precision ensures consistent volume for each bottle. The magnetic pump filling system accommodates beauty materials of different viscosities. Customizable nozzles fit various high-end packaging bottles, and the compact size suits boutique-style beauty production layouts.
2. Small-scale Food Factory Honey Filling: Used for filling 50-500ml bottled honey. The magnetic pump system is suitable for the high viscosity of honey. The dual-mode self-priming hopper ensures smooth filling, while high precision prevents waste of valuable honey. It can accommodate bottles made of glass, ceramic, and other materials, complying with food hygiene standards.
3. Daily Chemical Brand Sample/Trial Filling Line: Used for filling 10-50ml samples of shampoo, shower gel, and hand cream. The speed of 70-100 bottles per minute is suitable for small batch sample production. Customizable nozzles fit mini bottles, PLC control makes operation easy, and cleaning is convenient to prevent cross-contamination of different scents.
Contact us to get your quotation now.
