MODELS OF THE Screw Air Compressor
Power (KW) | Pressure (Bar) | Capacity (m³/min) | Outlet Size | Weight(KG) | Dimension(L×W×H) |
7.5KW | 8 | 1.1 | G3/4 | 320 | 1550mm×700mm×1480mm |
10 | 0.95 | ||||
16 | 0.5 | ||||
11KW | 8 | 1.5 | G3/4 | 350 | 1550mm×780mm×1600mm |
10 | 1.3 | ||||
16 | 0.85 | ||||
15KW | 8 | 2.3 | G3/4 | 350 | 1550mm×780mm×1660mm |
10 | 2.1 | ||||
16 | 1.35 |

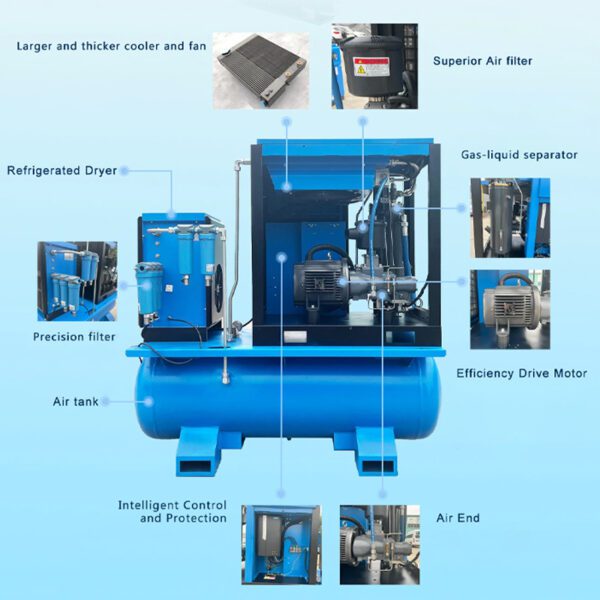

FEATURES
- Larger and thicker cooler and fan
The cooler uses high-quality raw materials and a unique internal channel design, which increases the heat exchange area can effectively dissipate heat from the air compressor. - Superior Air filter
Original Mann air efficient heavy duty inlet to ensure the quality of inlet air end safety of the air end,improved the life greatly. - Gas-liquid separator
The gas-liquid separator adopts the principle of centrifugal separation and wire mesh filtration. - Precision filter
Filter element service:6000hours
Option choose Air filter with differential pressure indicator and sight glass- Filter housing internal
with anti-corrosion treatment. - Efficiency Drive Motor
Using well-known brand high-performance motor, protection class lP54/IP55, F class insulation. SKF over-loading bearing. - Intelligent Control and Protection
The main electrical components use the CE, UL certificate brand, we can make sure stable running for different voltage and long time service life. - Air End
By using the German and Italy air end, strong heart depends on the great performance of our compressor.
