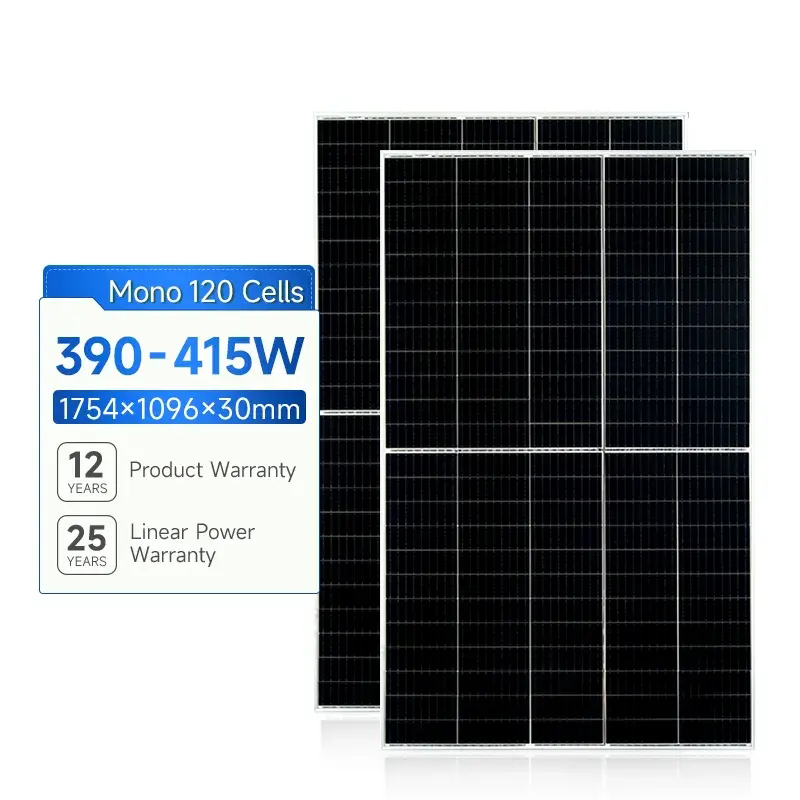

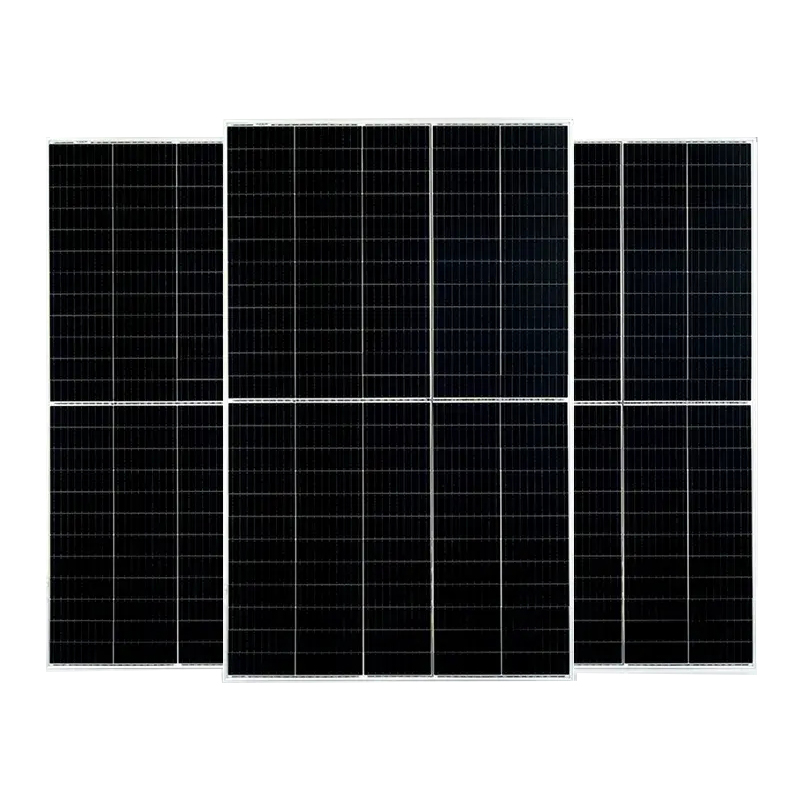

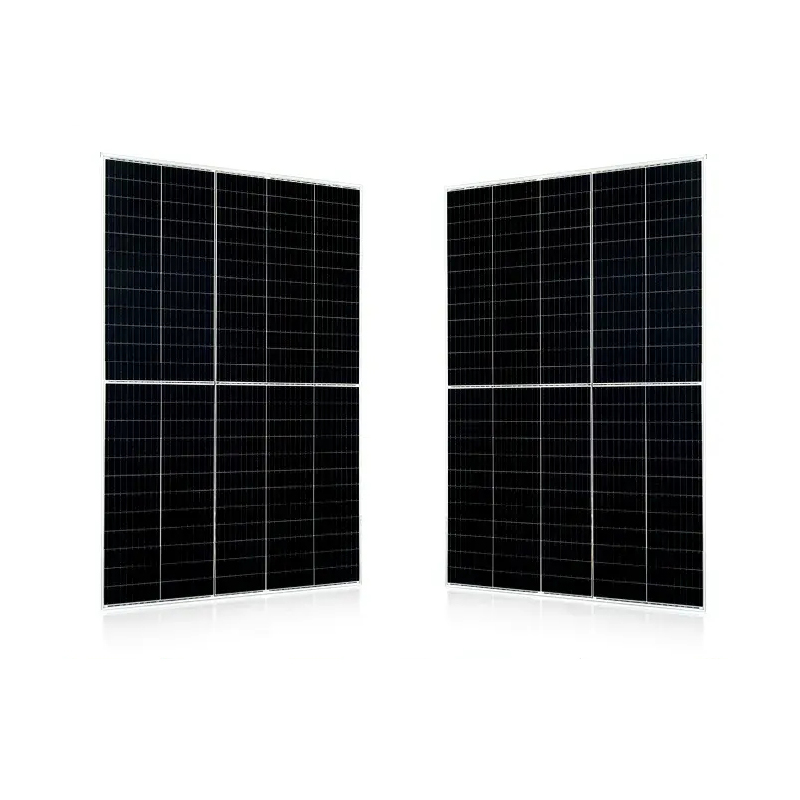

Risen Solar Half Cut Solar Panel 405W 410W Bifacial Solar Power Panel MOQ 10000 Watts
Solar：cells Monocrystalline
Cell configuration：120 cells (5×12+5×12)
Module dimensions： 1754×1096×30mm
Weight：22kg
Superstrate ：High Transmission, Low Iron, Tempered ARC Glass
Substrate：White Back-sheet
Frame：High strength alloy steel
J-Box：Potted, IP68, 1500VDC, 3 Schottky bypass diodes
Cables：4.0mm² (12AWG), Positive(+)350mm, Negative(-)230mm (Connector Included )
Connector ：Risen Twinsel PV-SY02, IP68
$2,900.00
Compare
Solar Panel Specification
|
Model Number
|
RSM40-8-390M
|
RSM40-8-395M
|
RSM40-8-400M
|
RSM40-8-405M
|
RSM40-8-410M
|
RSM40-8-415M
|
|
Rated Power in Watts-Pmax(Wp)
|
390
|
395
|
400
|
405
|
410
|
415
|
|
Open Circuit Voltage-Voc(V)
|
40.69
|
41.00
|
41.30
|
41.60
|
41.90
|
42.20
|
|
Short Circuit Current-Isc(A)
|
12.21
|
12.27
|
12.34
|
12.40
|
12.47
|
12.53
|
|
Maximum Power Voltage-Vmpp(V)
|
33.88
|
34.14
|
34.39
|
34.64
|
34.89
|
35.14
|
|
Maximum Power Current-Impp(A)
|
11.52
|
11.58
|
11.64
|
11.70
|
11.76
|
11.82
|
|
Module Efficiency (%)
|
20.3
|
20.5
|
20.8
|
21.1
|
21.3
|
21.6
|
|
STC
|
Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.
|
|||||
|

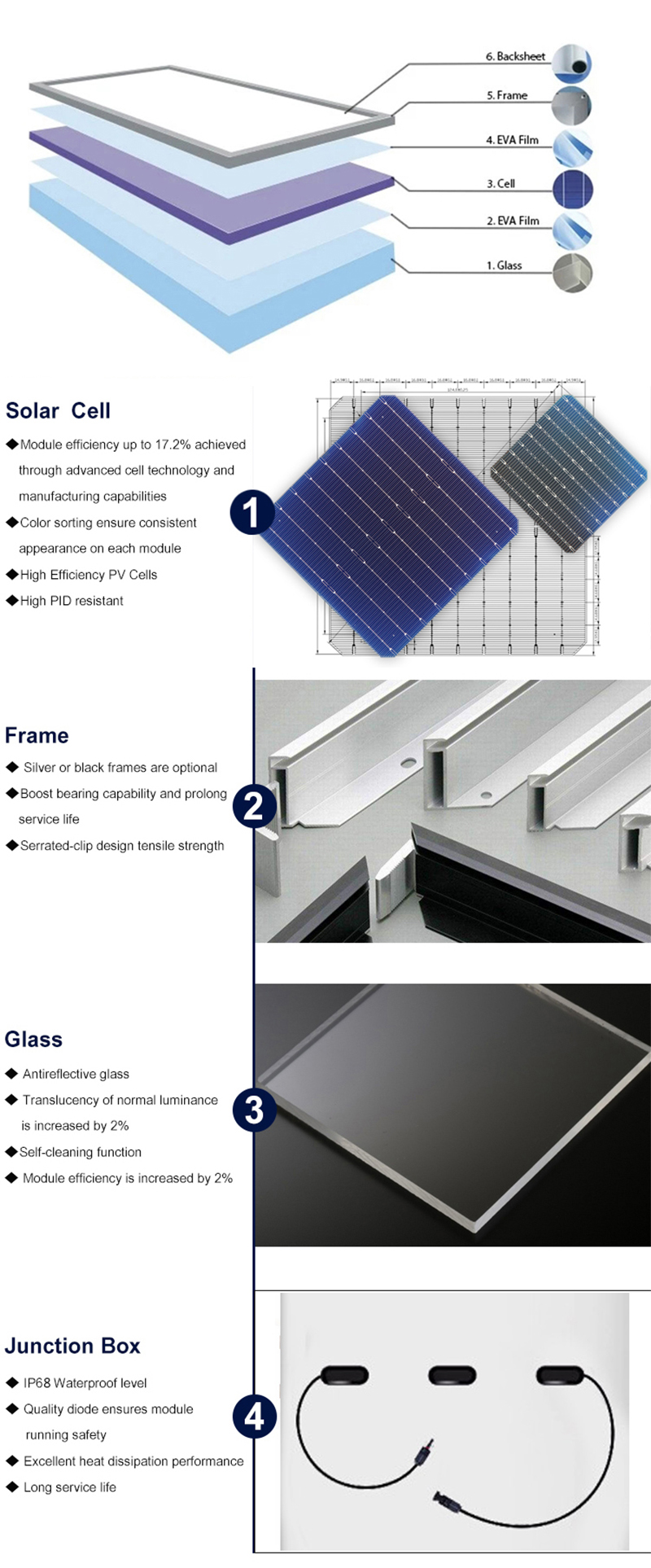

MECHANICAL DATA
|
|
|
Solar cells
|
Monocrystalline
|
|
Cell configuration
|
120 cells (5×12+5×12)
|
|

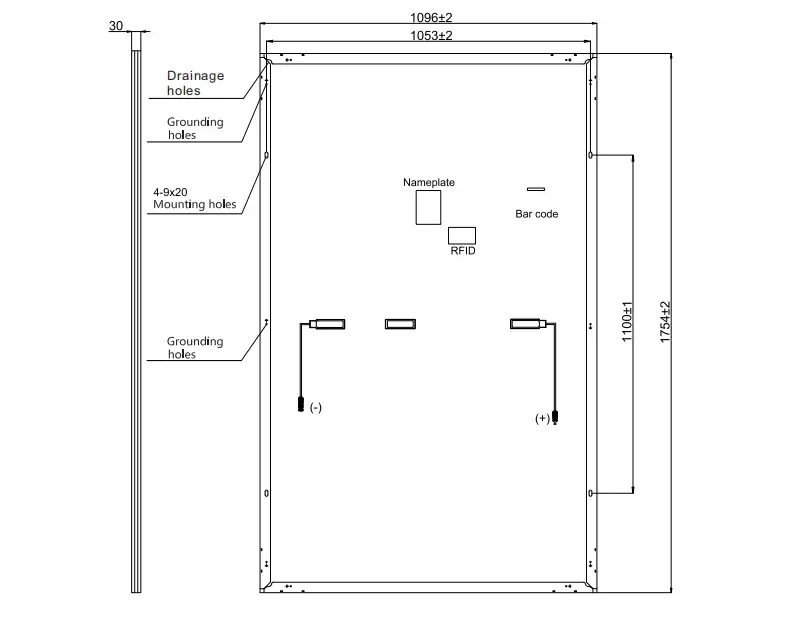

Module dimensions
|
1754×1096×30mm
|
|
Weight
|
22kg
|
|
Superstrate
|
High Transmission, Low Iron, Tempered ARC Glass
|
|
Substrate
|
White Back-sheet
|
|
Frame
|
High strength alloy steel
|
|
J-Box
|
Potted, IP68, 1500VDC, 3 Schottky bypass diodes
|
|
Cables
|
4.0mm² (12AWG), Positive(+)350mm, Negative(-)230mm (Connector Included )
|
|
Connector
|
Risen Twinsel PV-SY02, IP68
|
|
PACKAGING CONFIGURATION
|
||
|
40ft(HQ)
|
20ft(GP)
|
|
|
Number of modules per container
|
936
|
216
|
|
Number of modules per pallet
|
36
|
36
|
|
Number of pallets per container
|
26
|
6
|
|
Packaging box dimensions (LxWxH) in mm
|
1770×1120×1236
|
1770×1120×1236
|
|
Box gross weight[kg]
|
845
|
845
|
