Power P1 0.12…200kw
Output Torque TN2 Up to 50000Nm
Output Speed n2 0.13…276r/min

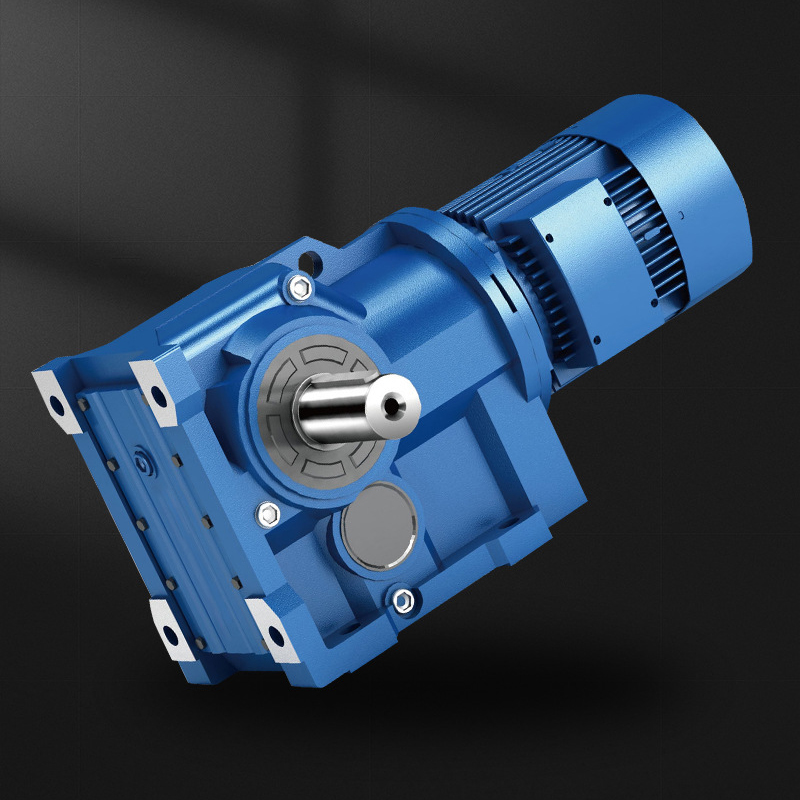

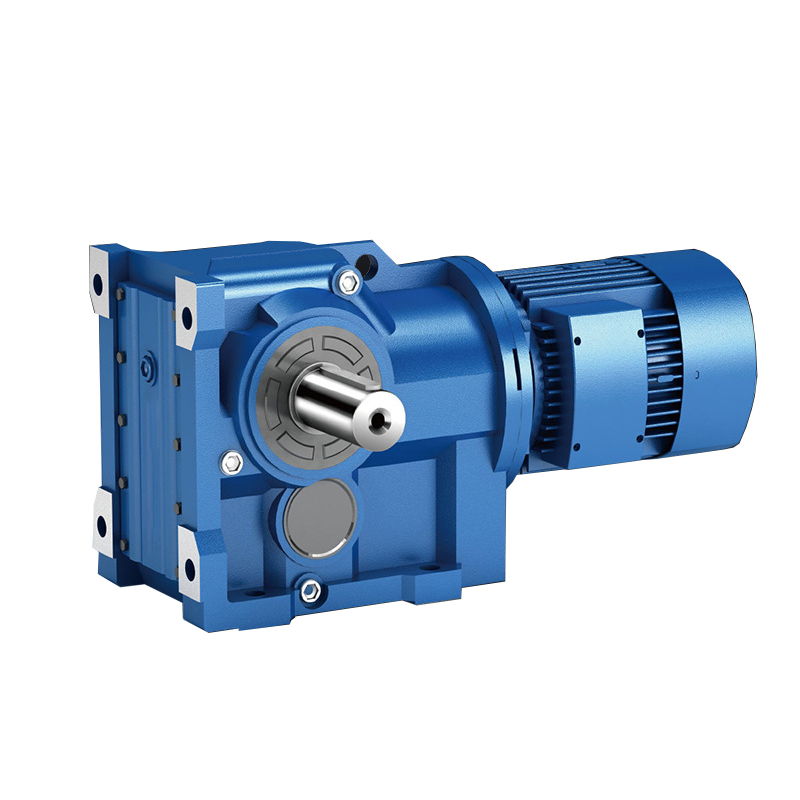

1. Vertical output, compact structure, hard tooth surface, large torque transmission, and high-precision gears ensure stable operation, low noise and long life.
2. Installation method: foot installation, hollow shaft installation, flange installation, torque arm installation, small flange installation.
3. Input mode: motor direct connection, motor belt connection or input shaft, connection flange input.

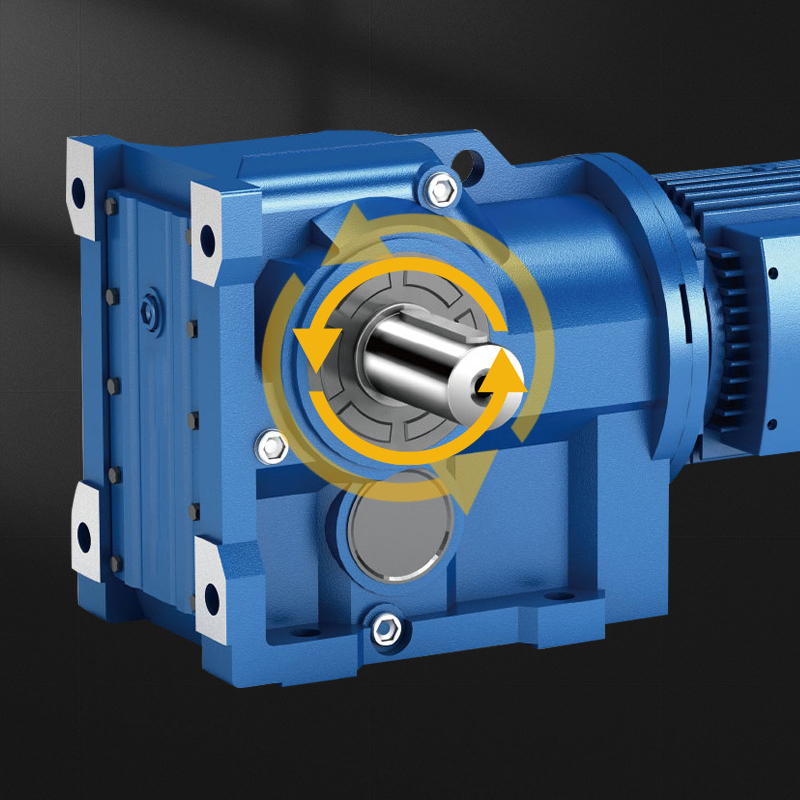

4. Output mode: hollow shaft output or solid shaft output, the average efficiency is 94%.
5. Combining with R series can get bigger speed ratio.
Speed ratio range: basic type 5.36～180.78, K series/R series combined type can reach 32625
Torque range: 200～50000 N.m
Power range: 0.18～200 KW
Output shaft: solid shaft, hollow shaft (flat key, shrink disc, involute spline)
