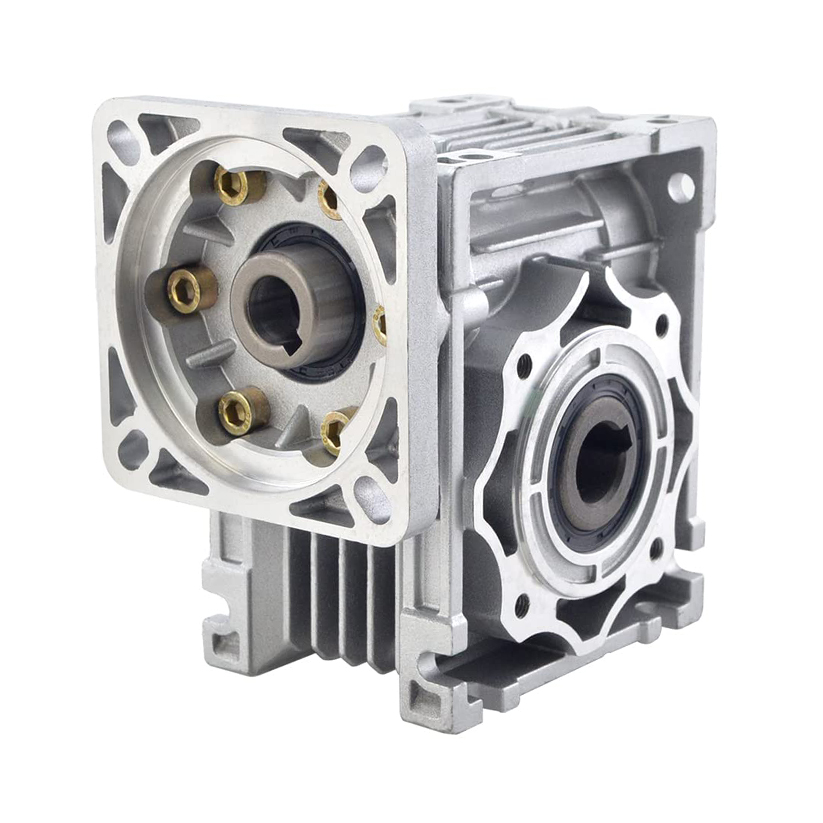

NMRV040 Worm Gear Reducer Gearbox Ratio 10:1 Speed Reducer Metal Gearheads Worm Gear Reducer For Nema 34 Stepper Motor
- Speed Ratio: 10:1
- Output Max. Permissible Torque: 40Nm (354.03lb-in)
- Output Max. Radial Load: 1.44kN
- Output Bore Diameter: Φ18mm
- Input Shaft Diameter: Φ14mm
- Input Shaft Max. Length: 35mm
NOTE: Prices may vary by product model and material.
$79.00
CompareThis worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86mm size motor, the output shaft is offset by 90° from the drive shaft. The advantage for this gearbox is efficiency and self-locking. Besides big cases, no gap structure of box means a maintenance- free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.
| Speed Ratio | 10:1 |
| Efficiency | 83% |
| Backlash at No-load | ≤1° |
| Output Max. Permissible Torque | 40Nm(354.03lb-in) |
| Output Max. Radial Load | 1.44kN |
| Output Type | Hollow Bore |
| Output Bore Diameter | Φ18mm |
| Input Shaft Type | Keyway |
| Input Shaft Diameter | Φ14mm |
| Input Shaft Max. Length | 35mm |
Advantages of Gear Reducer:
- High-quality aluminum alloy enclosure
- thermal performance
- large carrying capacity
- The multi-faceted installation
- Smooth transmission
- low noise
