Name
|
Quantity ( PCS )
|
Name
|
Quantity ( PCS )
|
Front curved door
|
1
|
Side door
|
2
|
Front closure
|
2
|
Management channel
|
2
|
Vertical support
|
4
|
Baseplate
|
2
|

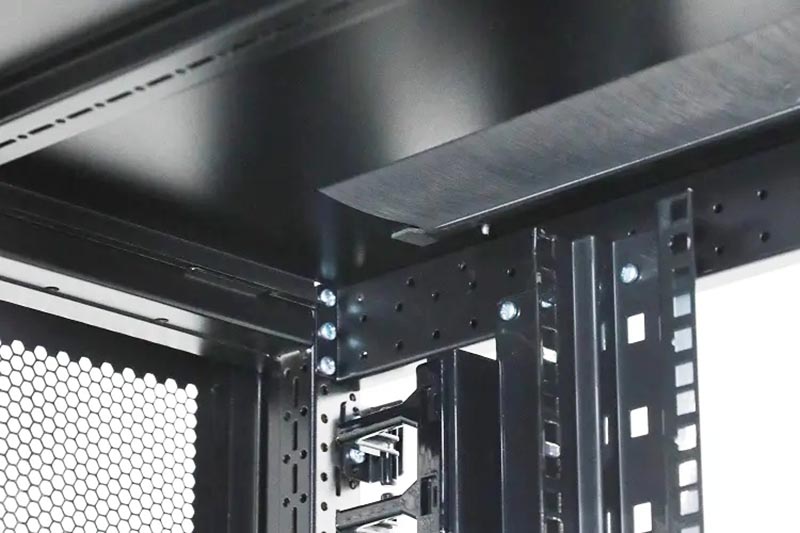

Network Cabinet Structural features
1.Welded frame, easy disassembly, solid andreliable structure
2.Square and round mounting holes Doubldesign, flexible installation of equipment andaccessores
3.Front and rear doors open angle> 130 degrees, convenient equipment shelves and mantenance

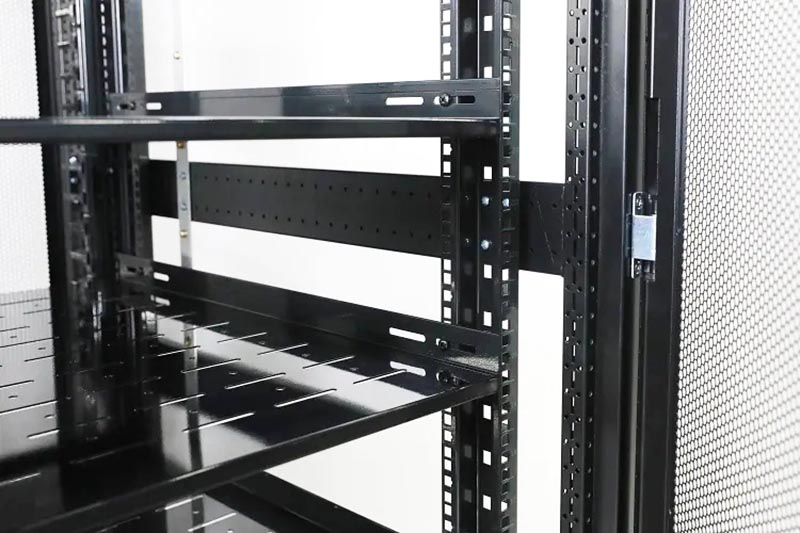

4.Vertical support can adjust the different installation depth, compatible with all major manufacturers of IT equipment
5.Cabinet front and rear doors and both sides can be fully sealed to prevent the formationof short air leakage
6.Sever rack beams, columns take up smaspace, make full use of the available space inside the cabine
No. | Name | Material | Quantity | No. | Name | Material | Quantity |
1 | Front enclosure | SPCC1.5 | 1 | 11 | Brush | Fire-proof | 2 |
2 | Rear enclosure frame | SPCC1.5 | 1 | 12 | Front door | SPCC1.5 | 1 |
3 | Cable management rings | Galvanized round steel | 8 | 13 | Rear door | SPCC1.2 | 1 |
4 | Middle horizontal frame | SGCC1.5 | 2 | 14 | Removable side panel with lock | SPCC1.2 | 4 |
5 | Rear and bottom frame | SGCC1.5 | 4 | 15 | Front bottom cover | SPCC1.5 | 2 |
6 | Cable management teeth | SGCC1.5 | 1 | 16 | Rear bottom cover | SPCC1.5 | 1 |
7 | Shelf | SGCC1.5 | 1 | 17 | 2 inch wheels | Customized | 4 |
8 | PDU | Customized | 3 | 18 | Cable management | SPCC1.5 | 1 |
9 | PDU sider | SGCC1.5 | 2 | 19 | Enclosure frame | SPCC2.0 | 4 |
10 | Roof | SGCC1.5 | 1 | 20 | Cable management teeth | Plastic | 21 |

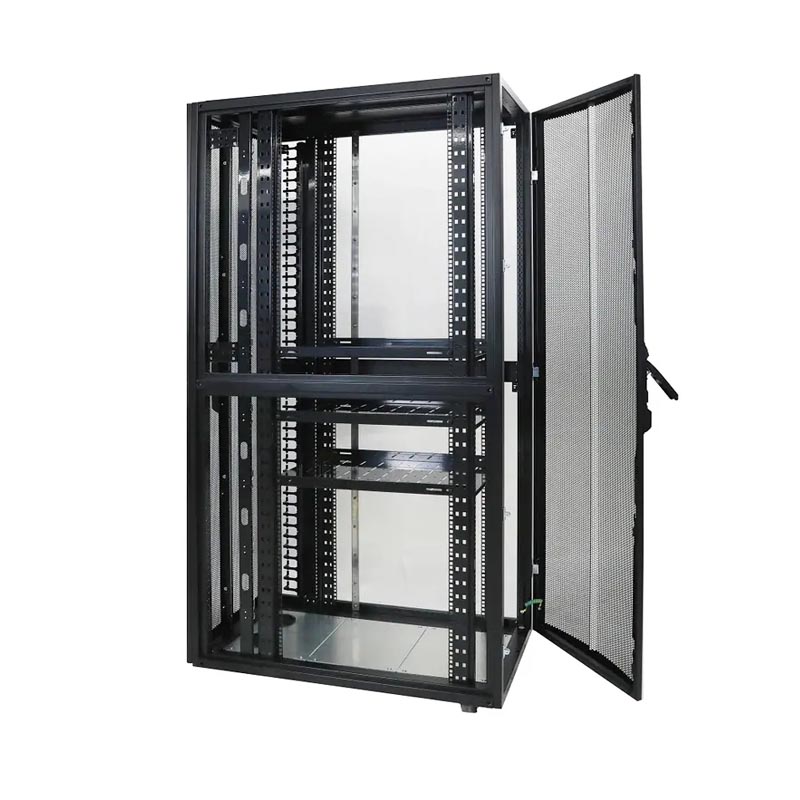

Medium and high density IT rack including server rack and network rack. Server rack is a delicated rack for installing 19″ standard equipment and non-19 ” standard equipment such as server, display, UPS, etc. The network rack is a delicated rack for installing switches, routers and other network equipment.

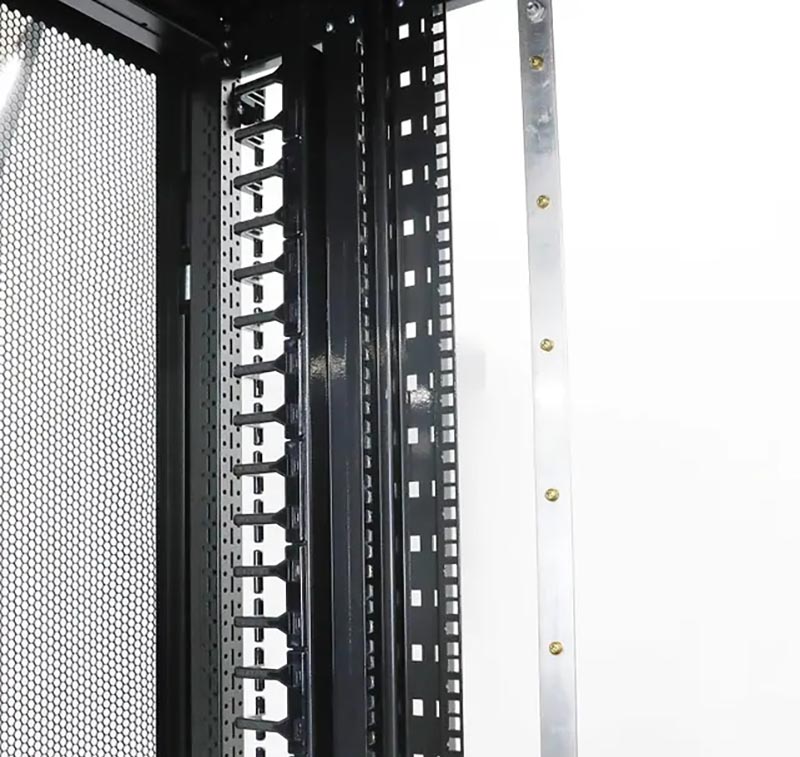

Capable of being used in conjunction with high capacity cable management systems, which are attached to the equipment mounting rails inside the rack and aligned with the u-space of the mounting equipment and provide access to cable routing and cable management.Compatible with a variety of different brands of PDU. Two PDU can be installed vertically on one side with a spline loop for managing power distribution wires.
