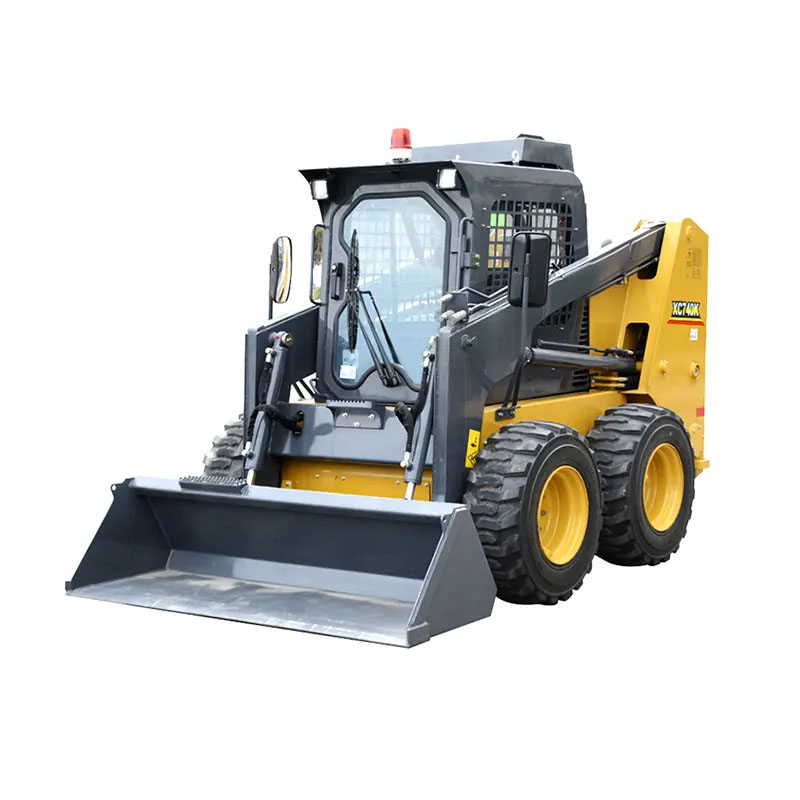

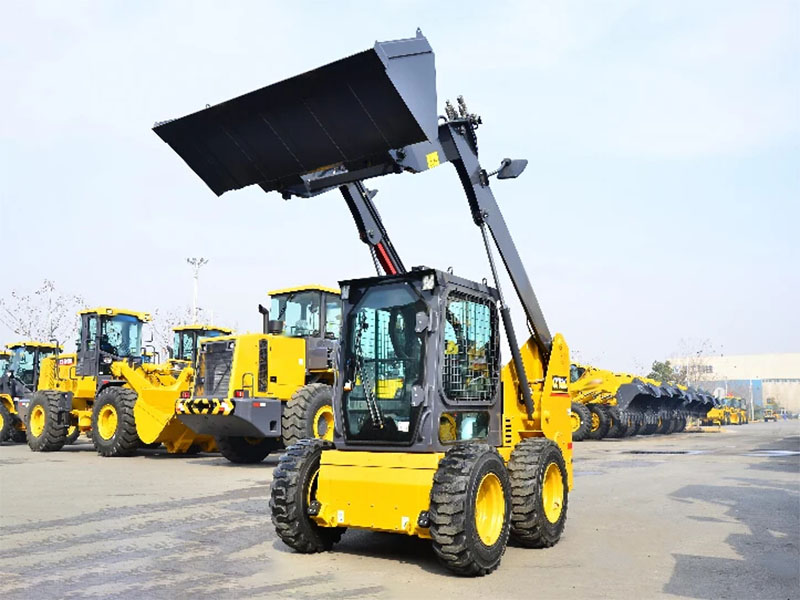

Mini Skid Steer Underground Mine Loader 1T Skid Steer Loader


Strong and Efficient Power Transmission System The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. The static hydraulic drive technology adopted features stable drive and high efficiency and reliability. The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

$9,650.00

Compare
Products Mini Skid Steer Description:
Description
Unit
Parameter value
Rated load
kg
750
Tipping load
kg
1500
Operating weight
kg
3140
Maximum breakout force
kN
18
Engine
Manufacturer
Xinchai
Model
4D27G31
Rated power
Hp/kw
49.3/36.8
Rated speed
rpm
2500
Cooling mode
Water-cooling
Performance parameter
Operation mode
Mechanical & multi-function electronic control
Tire standard
10-16.5
Maximum speed
Km/h
14
Hydraulic system
Hydraulic flow rate
L/min
62.5
Optional large flow
/
Hydraulic pressure
bar
200
Maximum operating height
mm
3878
Bucket hinge pin height
mm
3057
Cabin top height
mm
1960
Maximum horizontal height of bucket bottom
mm
2851
Length without bucket
mm
2533
Length with bucket
mm
3310
Toppling angle
°
40
Maximum unloading height
mm
2375
Ground-bucket angle
°
30
Rotating angle of bucket at highest point
°
83
Unloading distance
mm
575
Wheel base
mm
1027
Departure angle
°
25

Strong and Efficient Power Transmission System The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. The static hydraulic drive technology adopted features stable drive and high efficiency and reliability. The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

Flexible Operations
Compact structure, low turning radius, and strong site adaptability.
The quick-change coupling equipped can change attachments rapidly in the construction site.
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

Incomparable Multi-functionality
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

Safe and Comfortable Operating Environment
The ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator. The cab features large space, adjustable seats, and comfortable operations.
The standard double-accelerator control model can use the pedal accelerator or work at preset constant power to save the operation labor.

Convenient Maintenance
The cab can be tilted backward for a large angle to make the repair and maintenance portions more accessible.
The rear hood and upper hood can be opened conveniently and all units and pipelines are easily accessible to save the repair and maintenance labor and time.
