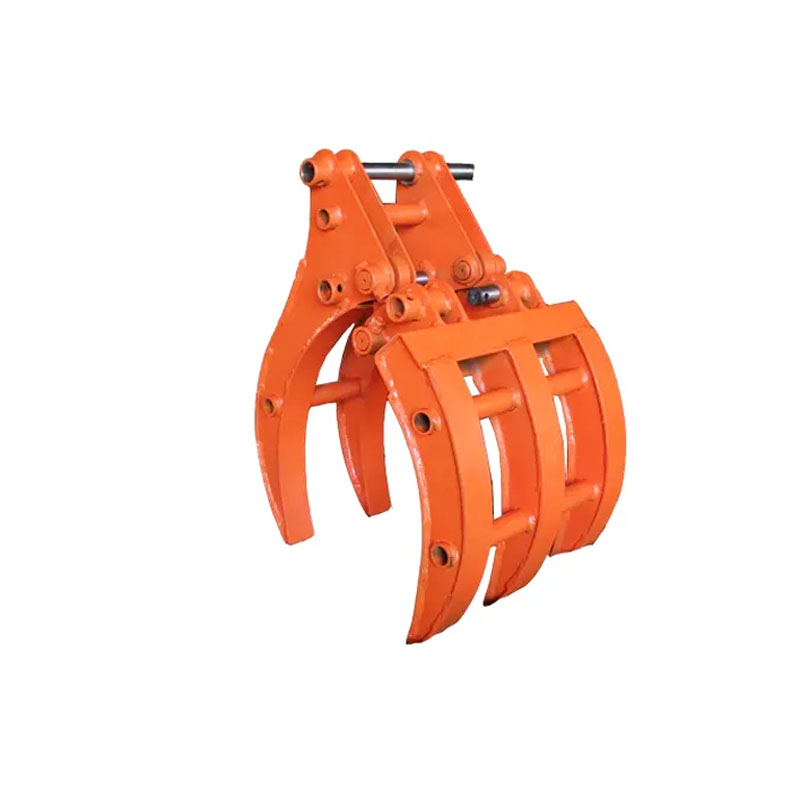

Skid Steer Attachments Grapple Round Bale Grapple For Excavator


Warranty:1 Year
Applicable Industries Farms, Energy & Mining, Building Material Shops, Construction works
Weight:390kg
Condition:NEW

$1,190.00

Compare

Skid Steer Attachments Grapple Specification:

Category Unit Model-1 Model-2 Model-3 Model-4 Model-5
Weight kg 320 390 740 1380 1700
Opening Size mm 1100 1400 1600 2000 2300
Operating Pressure kg/cm2 110-140 120-160 150-170 160-180 160-180
Pressure Set Up kg/cm2 170 180 190 200 210
Operating Flux l/min 30-55 50-100 90-110 100-140 130-170
Cylinder Volume l 4.0*2 4.5*2 8.0*2 9.7*2 12*2
Suitable Excavator ton 4-6 7-11 12-16 17-23 24-30
