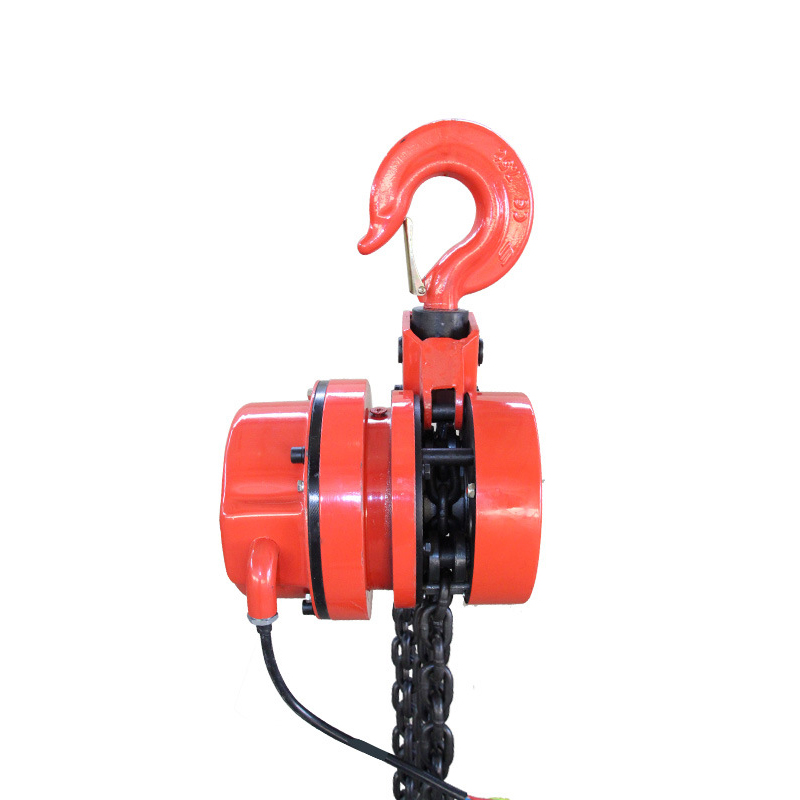

Models of the Chain Electric Hoist
Model | DHP1 | DHP2 | DHP3 | DHP5 | DHP10 | DHP20 | DHP30 |
Rated lifting capacity (T) | 1T | 2T | 3T | 5T | 10T | 20T | 30T |
Test load (T) | 1.25T | 2.5T | 3.75T | 6.25T | 12.5T | 25T | 37.5T |
Lifting speed (m/min) | 0.26/0.09 | 0.26/0.09 | 0.26/0.09 | 0.26/0.09 | 0.26/0.09 | 0.26/0.09 | 0.26/0.09 |
Minimum distance between two hooks (mm) | 300 | 380 | 470 | 600 | 730 | 890 | 890 |
Standard Lifting Height (M) | 3/6/9 | 3/6/9 | 3/6/9 | 3/6/9 | 3/6/9 | 3/6/9 | 3/6/9 |
Motor power (kw) | 0.5 | 0.5 | 0.5 | 0.75 | 0.75 | 1.1 | 1.1 |
voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Machine weight(kg) | 42 | 50 | 55 | 62 | 92 | 230 | 310 |
Add weight for every additional meter (kg) | 0.82 | 1.7 | 2.9 | 4.42 | 8.84 | 17 | 26.5 |
