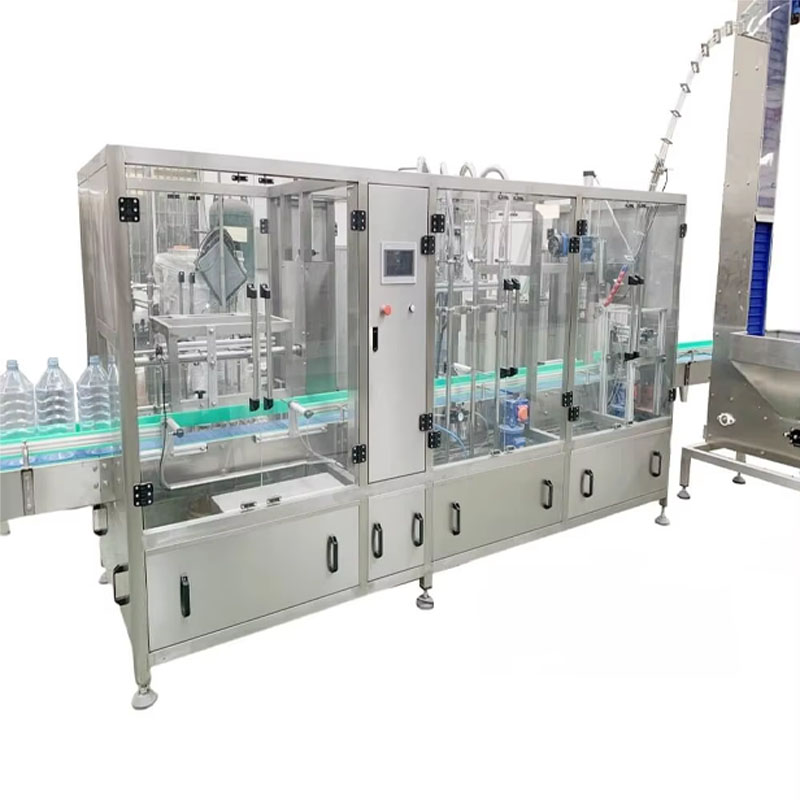

Linear Bottling System for Mineral Water Production Line

Product introduction of Linear Bottling System

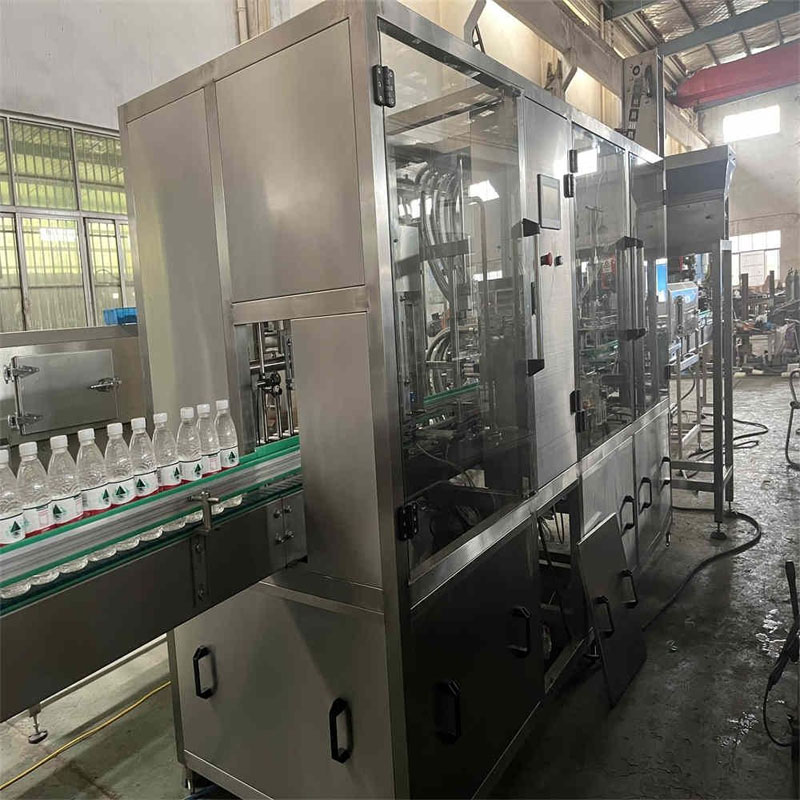

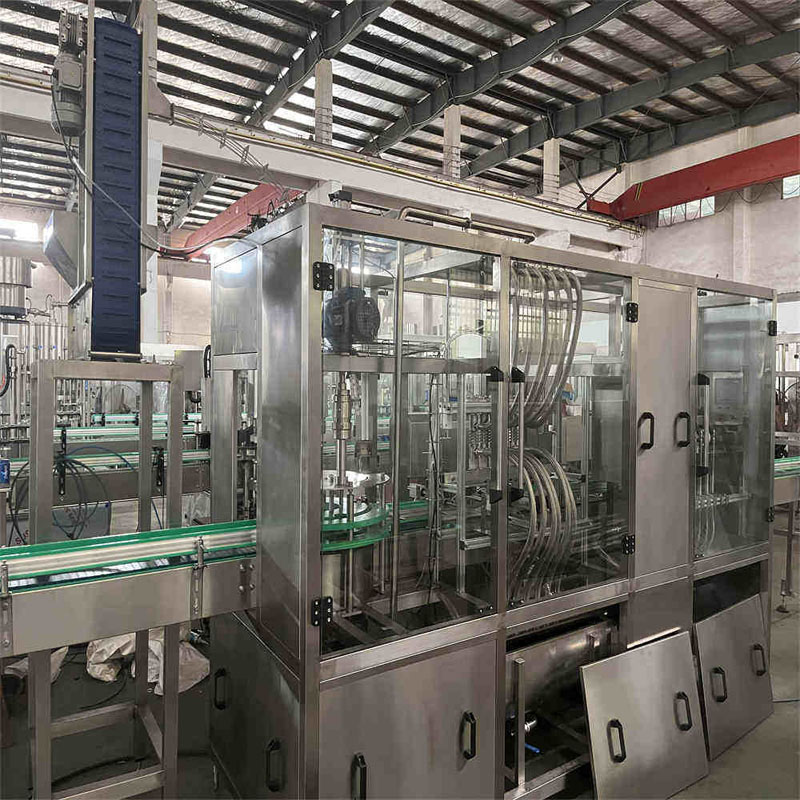

The bottle washing, filling, and capping linear bottling system is engineered for efficient water production in modern bottling plants. It integrates three core processes—cleaning, filling, and sealing—into one continuous linear production system.

This equipment is widely used in mineral water production plants, drinking water bottling factories, and purified water packaging facilities. It is specially designed for large-volume 10L PET bottle filling applications.

With an output of 600 bottles per hour, this system is ideal for small and medium-scale production lines requiring stable performance and high hygiene standards.

Working principle

Step 1 – Bottle Feeding System
Empty PET bottles are manually or semi-automatically placed onto the linear conveyor system.

Step 2 – High Pressure Washing Process
The system uses high-pressure flushing heads to clean each bottle thoroughly before filling.

Step 3 – Precision Filling Process
Bottles are automatically aligned and filled with liquid using controlled filling valves to ensure accurate volume.

Step 4 – Automatic Capping Process
Caps are placed and tightly sealed on bottles using a stable capping mechanism.

Step 5 – Output Conveyor System
Finished bottles are transported to downstream labeling or packaging operations.

Product Parameter Table

Flushing head	4
Filling head	4
Capping machine	1
Output(10000 ml)	600 BPH
Air source pressure	0.5-0.6 MPa
Re-evaluation pressure	0.2-0.3 MPa
Filling method	Normal pressure filling
Power	380 V,50 Hz,4.6 kW
Weight	200 kg
Dimensions	4000*1800*1400 mm

Comparison Module

Main Features

• Integrated bottle washing filling capping linear system
• High-pressure rinsing ensures deep cleaning performance
• Precision liquid filling system with stable volume control
• Secure automatic capping prevents leakage and contamination
• Designed for 10L PET bottle water filling production
• Food-grade stainless steel construction for hygiene safety
• Low maintenance and continuous operation capability
• Compact linear design for space-saving installation
• Stable 600BPH output for small and medium plants
• Suitable for turnkey water bottling production solution

Why Choose This Linear Bottling System

• Lower investment compared to rotary high-speed systems
• Ideal solution for small and medium water bottling plants
• Stable 600BPH output for controlled production planning
• High precision filling reduces product waste
• Compact design suitable for limited factory space
• Easy operation with low maintenance requirement
• Hygienic stainless steel structure ensures food safety
• Flexible application for different bottle sizes

Application Scenarios

• Mineral water bottling plant production line
• Drinking water factory small-scale production system
• 10L PET bottle water filling plant
• Purified water packaging factory solution
• Beverage processing and bottling workshop
• Industrial water filling production facility
• OEM bottled water manufacturing plant

Buying Guide

• Choose system based on daily production demand
• Confirm bottle size compatibility (10L PET bottles)
• Evaluate factory space and layout requirements
• Check voltage and power supply stability
• Consider future production expansion needs
• Select between linear or rotary system based on budget

FAQ

Q1: What is a linear bottling system used for?

A: It is used for automatic bottle washing, filling, and capping in water bottling production plants.

Q2: What is the capacity of this linear bottling system?

A: The system can produce up to 600 bottles per hour for 10L PET bottles.

Q3: What products can this system fill?

A: It is suitable for mineral water, drinking water, and purified water.

Q4: Is this system fully automatic?

A: It integrates automatic washing, filling, and capping in a linear production process.

Q5: What bottle size is supported?

A: It supports large PET bottles such as 10L containers.

Q6: What material is used in the system?

A: It uses food-grade stainless steel for hygiene and durability.

Q7: Is this suitable for small factories?

A: Yes, it is designed for small and medium water bottling plants.

Q8: What is the advantage of a linear system?

A: It offers lower cost, compact design, and easy operation for small production lines.

Summary

The linear bottling system is a compact and efficient solution designed for small and medium-scale water bottling plants. With integrated washing, filling, and capping functions, it ensures stable 600BPH production for 10L PET bottles.

Built with stainless steel construction and precise filling control, it delivers hygienic, reliable, and cost-effective performance. It is widely used in mineral water plants, drinking water factories, and purified water production lines, making it an ideal entry-level bottling solution for growing businesses.
