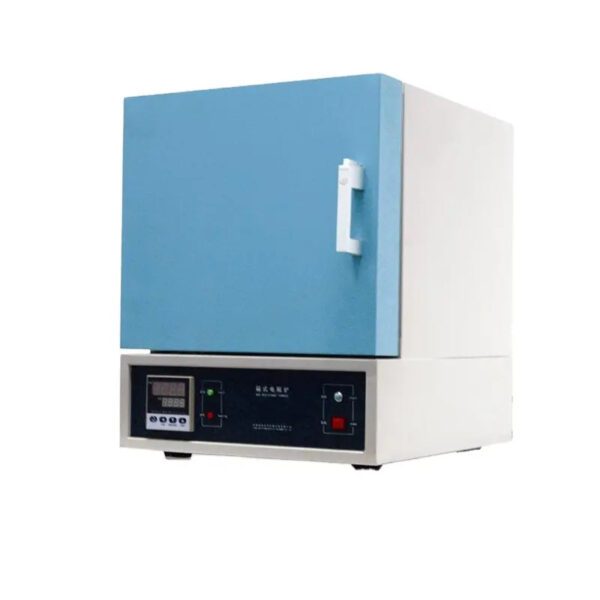

Large Vacuum Furnaces Chamber 1300 Degree High Temperature Digital Lab Muffle
It adopts high-density ceramic fiber, an emerging modern refractory material, featuring light weight,rapid temperature rise, time saving, etc, to satisfy the requirements on rapid sintering under various conditions. It is the optimal substitute for traditional hearth.
$3,200.00
CompareWe offer various series of standardized products(Furnaces) to satisfy the requirements of most customers. We can also provide solutions tailored to your unique requirements on heat treatment. We are ready to serve you upon request.
Type selection of electric resistance furnaces
T-series hearth
It adopts high-density ceramic fiber, an emerging modern refractory material, featuring light weight,rapid temperature rise, time saving, etc, to satisfy the requirements on rapid sintering under various conditions. It is the optimal substitute for traditional hearth.
G-series hearth
It adopts traditional refractory material and features wide application, high performance-price ratio, long service life etc.
Furnace body construction
Electric furnaces (except 1300℃) are available in vertical and horizontal versions. The customers may choose either based on their needs
| Production | Large Vacuum Furnaces Chamber 1300 Degree High Temperature Digital Lab Muffle |
| Hearth dimensions(mm) | 250X150X100 |
| Furnace volume | 4L |
| Design temperature | 1300℃ |
| Highest temperature | 1200℃ |
| Temperature control precision | ±1℃ |
| Temperature control method | PID temperature controller |
| Temperature rise rate | ≤20℃/min for T-series |
| Input power | 4kw |
| Source voltage | AC220V |
| Heating elements | Straight-type silicon carbide |
| Sensor | S-type platinum and rhodium |
| Dimensions(mm) |
500X400X500 |
