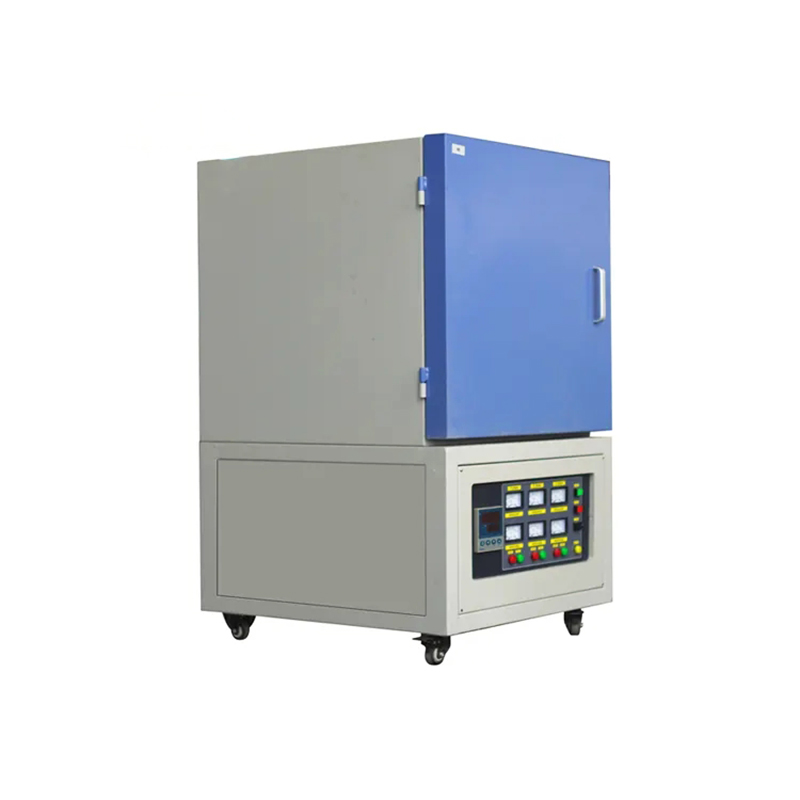

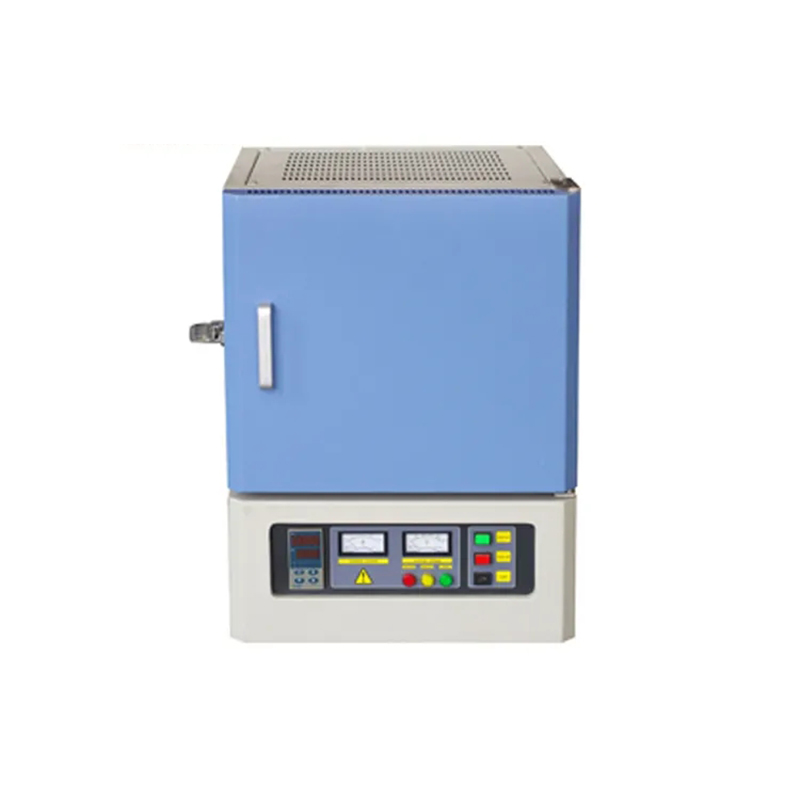

Lab Furnace Mini 1800 Degree Muffle Furnace
Max working temperature 1800℃;continuous working temperature 1750℃
Volume 1~36L
High quality MoSi2 heating element imported from the USA
Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside
50 segments programmable and PID auto control
With over temperature alarm function
Double layer of furnace shell with fan cooling, Surface temperature is less than 60℃
$8,000.00
CompareUsing polycrystalline mullite fiber lining, and total thickness is 120-250mm, to ensure very good thermal effect. Double layer of furnace shell with fan cooling, Surface temperature is less than 60℃,Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working. The furnaces is a special equipment specially developed for the sintering, melting and analysis of metal, non-metal and other compound materials in laboratories and industrial and mining enterprises of universities and research institutes.
|
Model |
Max Temperature (℃) |
Inner size (W *H * D) mm |
Volume (L) |
Power (KW) |
Phase |
Thermocouple |
|
Model-1 |
1800 |
100*100*100 |
1 |
2 |
1 |
B type |
|
Model-2 |
1800 |
120*120*130 |
2 |
4 |
1 |
B type |
|
Model-3 |
1800 |
150*150*150 |
3 |
6 |
1 |
B type |
|
Model-5 |
1800 |
150*150*200 |
5 |
7 |
1 |
B type |
|
Model-8 |
1800 |
200*200*200 |
8 |
8 |
1 |
B type |
|
Model-12 |
1800 |
200*200*300 |
12 |
9 |
1 |
B type |
|
Model-27 |
1800 |
300*300*300 |
27 |
12 |
3 |
B type |
|
Model-36 |
1800 |
300*300*400 |
36 |
15 |
3 |
B type |
Lab Furnace Features:
Max working temperature 1800℃;continuous working temperature 1750℃
Volume 1~36L
High quality MoSi2 heating element imported from the USA
Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside
50 segments programmable and PID auto control
With over temperature alarm function
Double layer of furnace shell with fan cooling, Surface temperature is less than 60℃
