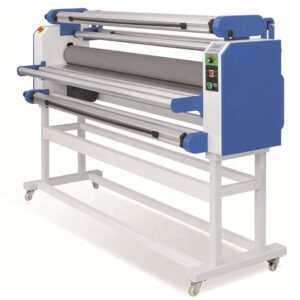

Technical Details of the Laminator Machine
Heating Power | 1500W |
Motor | 60W |

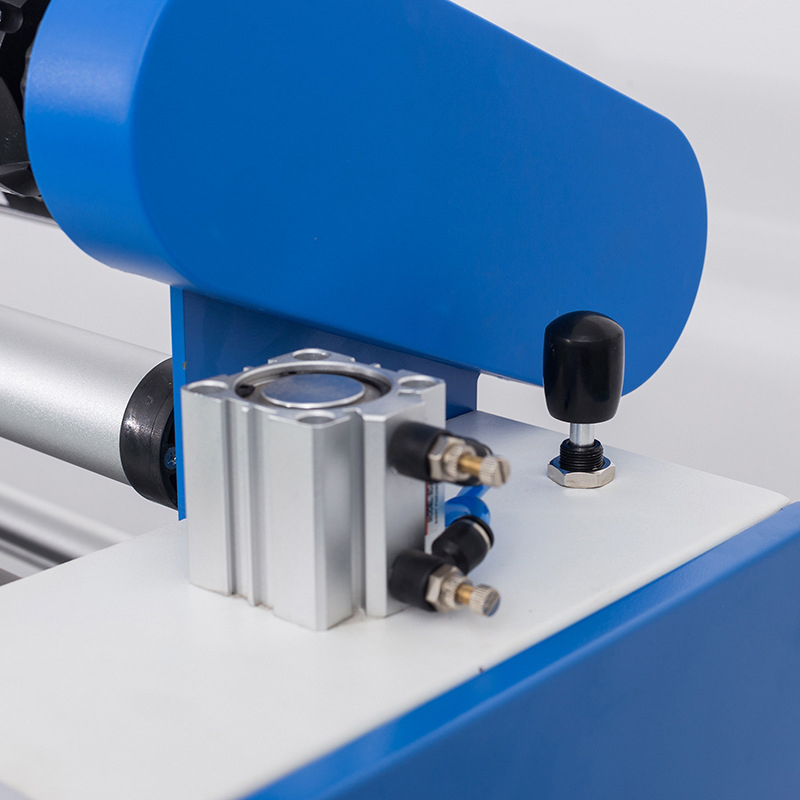

Pressure Adjustment | Pneumatic |
Laminating Width | ≤59.8″ (1520mm) |
Laminating Speed | 0-26ft/min (0-8m/min) |
Laminating Thickness | 1.1″ (28mm) |
Roller Diameter | 5.12″ (130mm) |
Raise height of Roller | 1.1″ (28mm) |
Temperature | 32℉-140℉ (0℃-60℃) |
Weight | 463 LBS (210KG) |
Product Size(L×W×H) | 1975mm×570mm×1240mm |
Packing Size(L×W×H) | 1980mm×630mm×680mm |
Features
- Unilateral linkage, up and down easily.
- Two laminating way: foot control/ automatic.

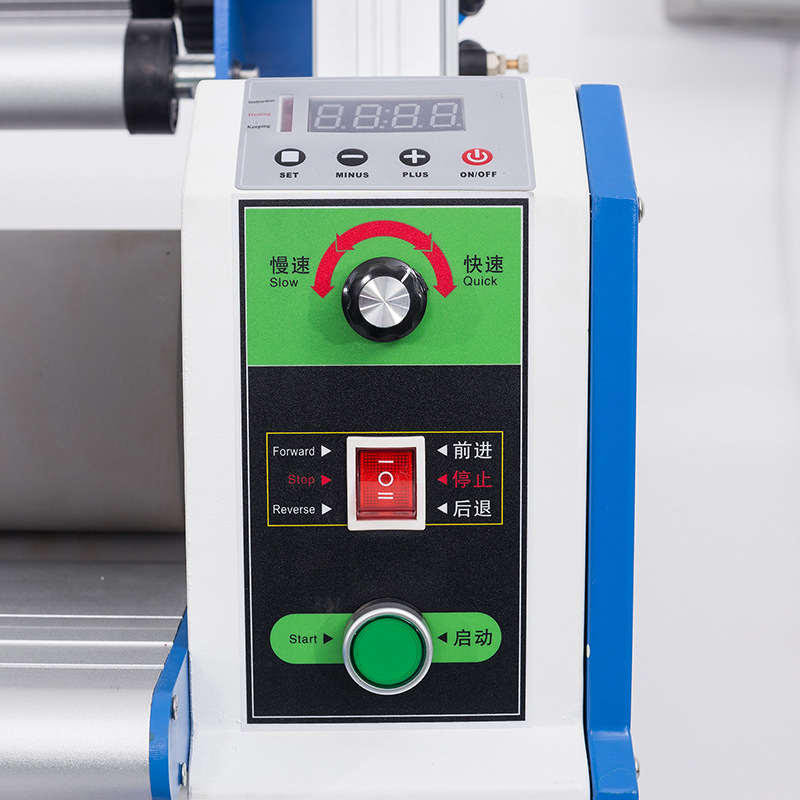

- Stepless speed adjustment.
- With reversing function.

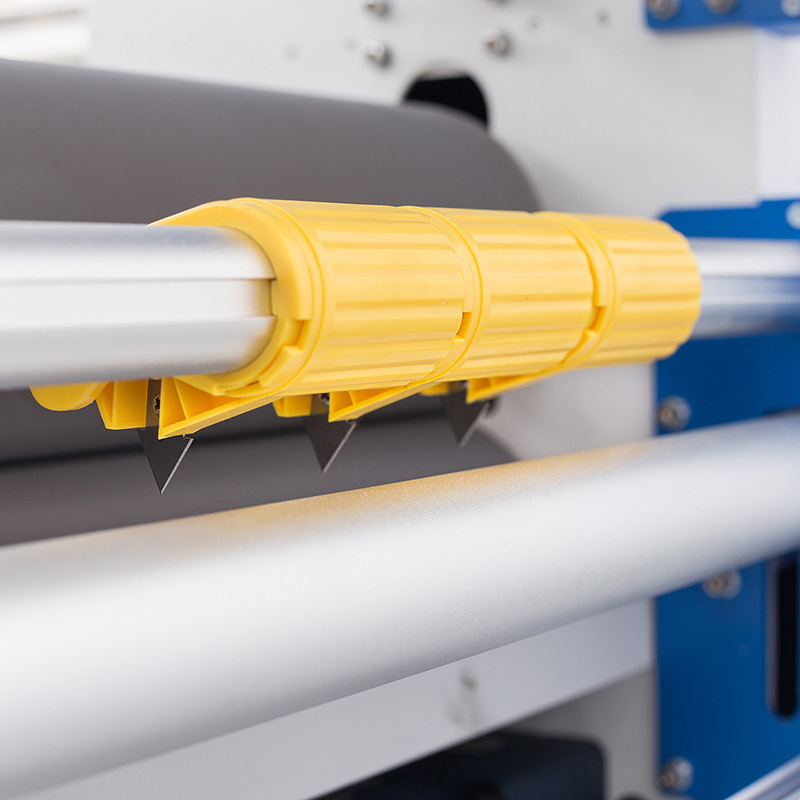

- Uncovering the base paper and finishing products automatically.
- Only need one person to operate machine, reduce the labor cost.
- Heating to 60℃ to cold laminate, avoid bubble and snowflake thoroughly.
- High efficiency and high yield of laminating, whole film of 50m doesn’t be bevelled.
- Film and paper tightness-degree system makes the cold laminating film have good tension,reduce the fold risk of laminating.
