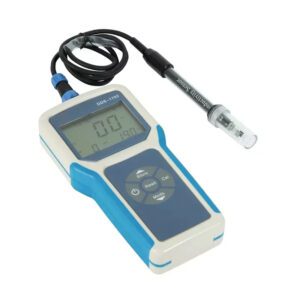

Portable Conductivity Meter Features:
• Economy portable conductivity meter is equipped with a backlit LCD display.
• 1 to 3 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), linearn-linear and pure water compensation modes.
• Automatic temperature compensation corrects conductivity measurment to reference temperature.
• Auto-Read function senses and locks the measurement endpoint.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, temperature unit, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 100 data sets.
• USB communication interface for data transfer or connecting a power adapter to meter.
Conductivity | |
Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
Resolution | 0.001, 0.01, 0.1, 1 |
Accuracy | ±0.5% F.S. |
Calibration Points | 1 to 3 points |
Calibration Solutions | 10µS, 84µS, 1413µS, 12.88mS, 111.8mS |
Temperature | |
Range | 0 to 105°C/32 to 221°F |
Resolution |
0.1°C/0.1°F |
Accuracy | ±0.5°C/±0.9°F |
Offset Calibration | 1 point |
Calibration Range | Reading ±10°C |
General Specifications | |
Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic |
Temperature Coefficient | Linear (0.0 to 10.0%/°C), non-linear, pure water |
Reference Temperature | 20/25°C |
Cell Constant | K=0.1, 1, 10 |
Auto-Power Off | 30 minutes after last key pressed |
Memory | Stores up to 100 data sets |
Output | USB communication interface |
Connector | 6-pin nimi-DIN, 3.5mm jack socket |
Display | Custom LCD (80×60mm) |
Power | 3×1.5V AA batteries or DC5V power adapter |
Dimensions | 170(L)×85(W)×30(H)mm |
Weight | 300g |
