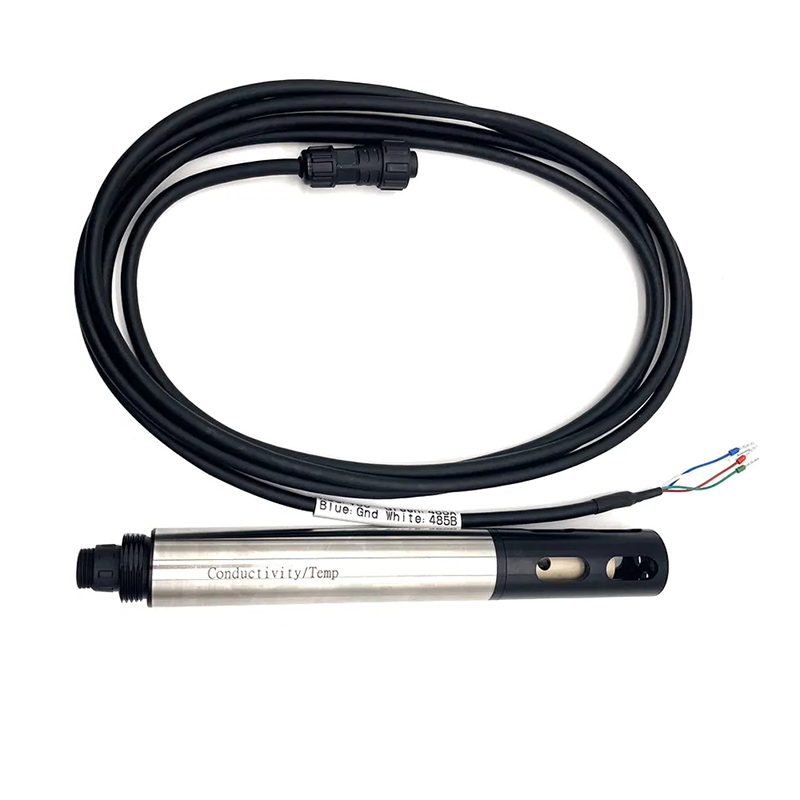

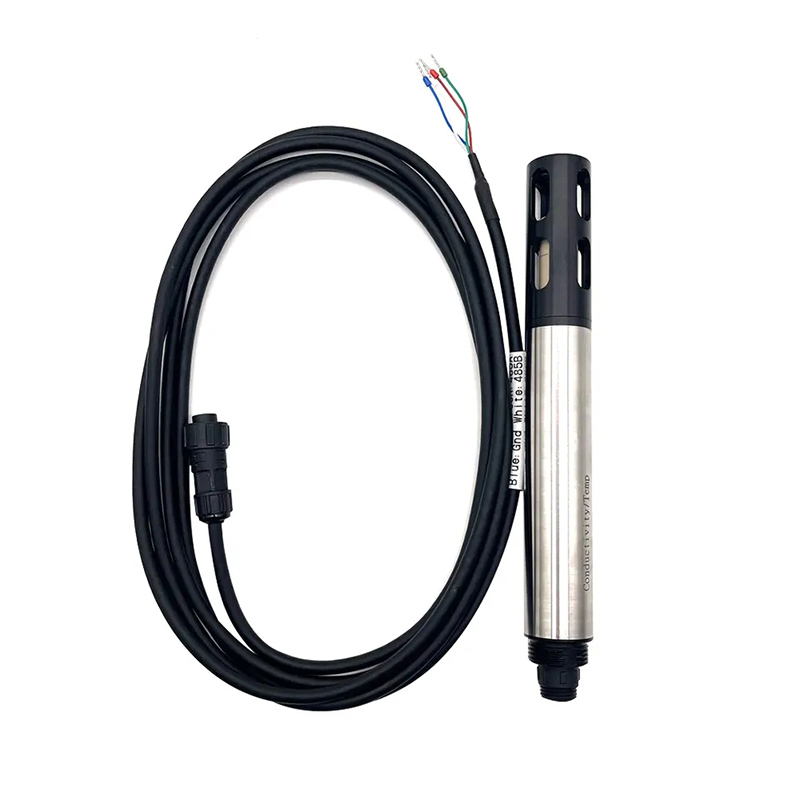

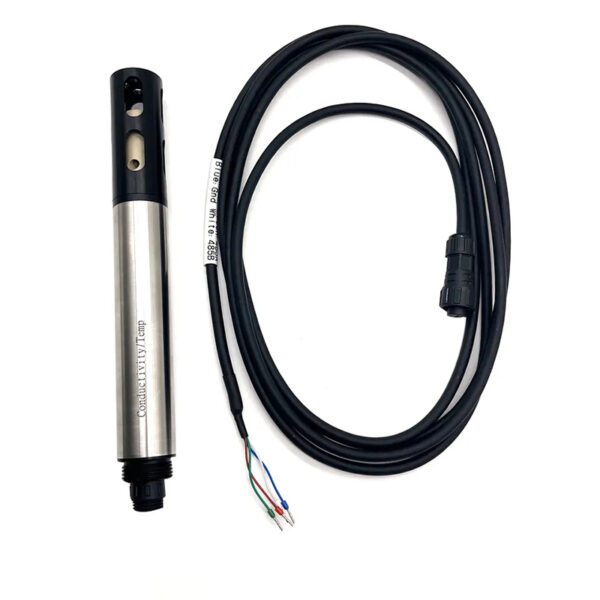

Groundwater Electrical Conductivity Meter 12-24V Water Quality Electrode Conductivity Sensor
Characteristics：
Four-electrode measurement principle, no passivation, more accurate;
Support kinds of installation methods, can use different shell materials, thus suitable for many application; Automatic temperature compensation;
Strong, corrosion resistance, anti-interference;
Wide measurement range;
Fast response time;
$299.00
CompareConductivity sensor adopts new four-electrode structure design, automatic temperature compensation, suitable for surface water, groundwater, industrial water, waste water and other application.
Conductivity Meter Characteristics：
Four-electrode measurement principle, no passivation, more accurate;
Support kinds of installation methods, can use different shell materials, thus suitable for many application; Automatic temperature compensation;
Strong, corrosion resistance, anti-interference;
Wide measurement range;
Fast response time;

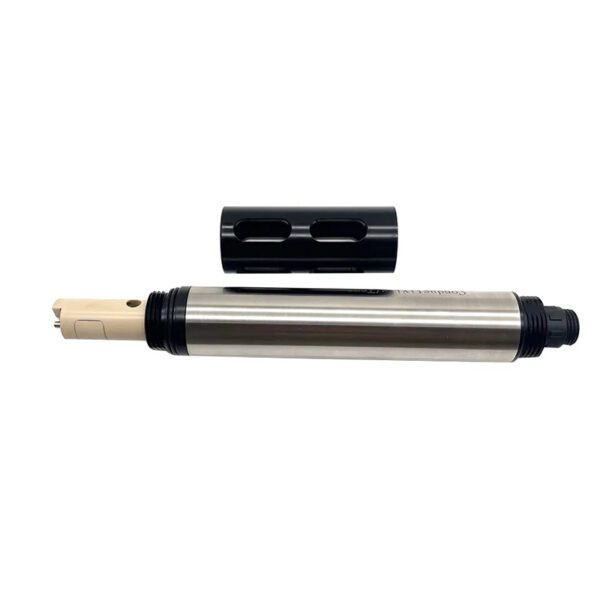

1. Protective cap
2. EC probe
3. NPT 3/4 thread
4. Body shelf Stainless steel
5 NPT 3/4 thread
6. Plug
|
Size
|
Φ30mm*225.5mm
|
|
Weight
|
0.24KG
|
|
Main material
|
SUS316L + POM
|
|
O ring:Viton ring+ rubber ring
|
|
|
Cable:PVC
|
|
|
Waterproof rate
|
IP68/NEMA6P
|
|
Measuring range
|
0 -200mS/cm, Temperature: 0~50℃
|
|
Accuracy
|
0 -100 mS/cm, ±1%; 100-200 mS/cm, ±2%
|
| Temperature: ±0.2℃ | |
|
Resolution
|
1μS/cm-100μS/cm ( according to range)
|
|
Data output
|
RS485
|
|
Power
|
DC 12~24V, current < 20mA
|
|
Storage temperature
|
-20℃~+60℃
|
|
Working temperature
|
0~50℃
|
|
Pressure range
|
≤1Mpa
|
|
Calibration method
|
One point or two point calibration
|
|
Cable length
|
Standard 5m, others to be customized
|
|
MOQ
|
5PCS
|
|
Guarantee period
|
12 months
|
Related products
-
Water Testing Equipment & Meters

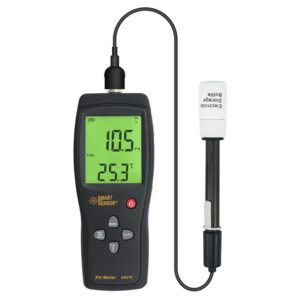

Wholesale Portable High Precision Water Tester Digital Mini Ph Acidity Meter
