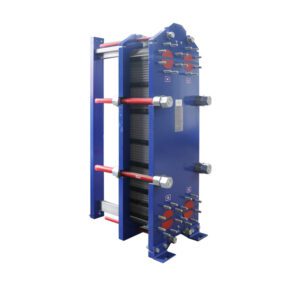

Industrial steam boiler heating plate heat exchanger


ADVANTAGES:

–High quality and competitive price, fast delivery.

–Design more compact engineered systems.

–Install a more cost effective, superior solution to your heat transfer applications.

–Reduce cooling media volume, further reducing the cost of fluid handling systems and energy consumption.

–Simplify maintenance and repair.

$2,000.00

Compare

A plate heat exchanger is a kind of high-efficiency heat exchanger made of a series of metal sheets with a certain corrugated shape.A thin rectangular channel is formed between the various plates, through which heat is exchanged.Plate heat exchangers are suitable equipment for liquid-liquid and liquid-vapor heat exchange.It has the characteristics of high heat transfer efficiency, low heat loss, compact and lightweight structure, small footprint, easy installation and cleaning, wide range of applications, and long service life.Under the same pressure loss, its heat transfer coefficient is 3-5 times higher than that of tubular heat exchangers, covers an area of one-third of that of tubular heat exchangers, and has a high heat recovery rate.

The clamping bolt system consists of three parts: the bearing box system, the bolt, and the locking system.The bearing box system enables the bolts to be in place quickly and accurately and is easy to tighten, and the locking system prevents the bolts from rotating when tightened.The bolts are manufactured by rolling processing and coated with anticorrosive materials and lubricating oil, the outer cover is plastic, and the heavy-duty hexagonal nuts make the entire disassembly process easy, and the clamping bolts can be disassembled and installed from the side to make disassembly convenient, and the design of the clamping bolts is conducive to disassembly.



The detachable plate heat exchanger adopts a precise multi-point positioning system.The four-corner positioning system of models with corner hole diameters below 100mm allows the upper and lower guide rods of the plates to be accurately chimeric together as the axis.The five-point positioning system of the angle hole direct release model above 150mm allows the positioning of the plate to be determined by multiple metal-to-metal contact points. Among them, the contact point of the upper guide rod can prevent the plate from moving up and down, and the contact point of the lower guide rod can restrict the plate from moving left and right.Using multi-point positioning technology, the plate group can move back and forth without resistance on the guide rod, easily and simply complete maintenance operations, and the plate can be accurately chimeric during reinstallation, so that the gasket is sealed accurately and exactly the same, and the plate group can be completely reset.Thus ensuring the long life of the heat exchanger after disassembly and assembly.Moreover, a plate heat exchanger with a multi-point positioning system only requires one person, even if there is no experience, the heat exchanger can be easily disassembled and assembled with simple tools.



Use

Heat up and cool down

Flow channel cross-sectional area

Contact customer service for details (m2)
