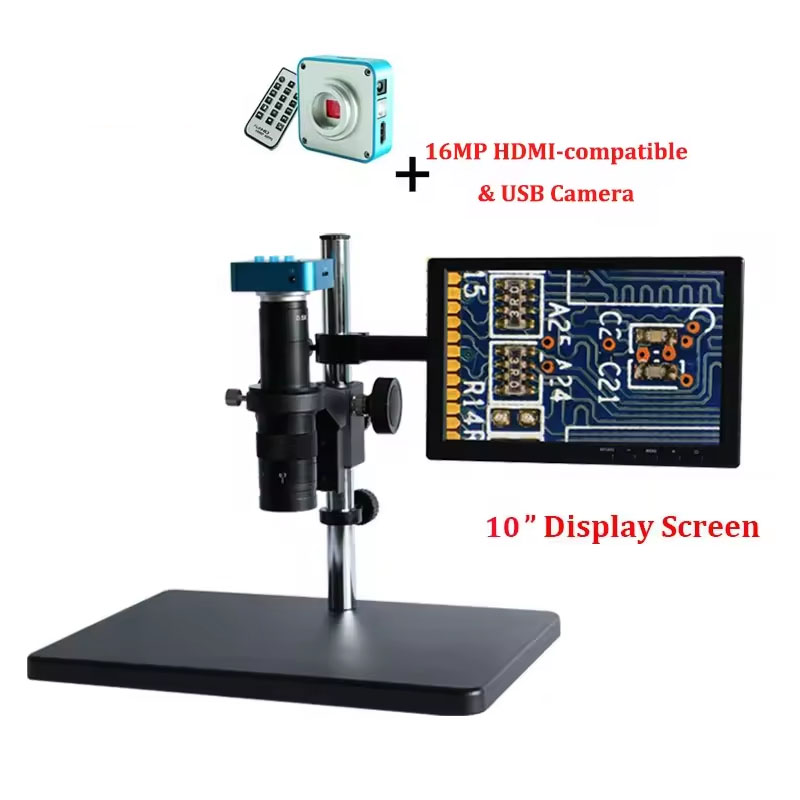

Industrial Detecting Continuous Zoom Video Stereo Microscope Monocular Microscope

0.5X, 1.0X, 2.0X(Aux Lens)
Sharp Clear Images
Connected with Microscope Cameras
Widely Used in Various Fields: Electronic Industry and Agricultural Research



Microscope Specification

Eyepiece Standard Auxiliary Lens 0.5X Auxiliary Lens 2.0X
W.D. 100mm W.D. 165mm W.D. 30mm
Mag. F.O.V Mag. F.O.V Mag. F.O.V
0.35X 0.245X 23mm 0.1225X 46mm 0.49X 11.6mm
1.575X 3mm 0.7875X 7mm 3.15X 1.7mm
0.5X 0.35X 17.6mm 0.175X 35mm 0.7X 8.8mm
2.25X 2.7mm 1.125X 5mm 4.5X 1.3mm
1X 0.7X 9mm 0.35X 17.6mm 1.4X 4mm
4.5X 1.6mm 2.25X 3mm 9X 0.71mm
Magnification 0.35X-2.25X(standard)
Eyepiece 0.5X(standard)
Optional Eyepiece 0.35X, 0.5X, 1X
Objective 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens 0.5X, 1.0X, 2.0X
Stage Large Working Stage: 320 x 260mm
Illumination Fluorescent lamp, LED ring light
Accessories Can be connected to the cameras and displays
