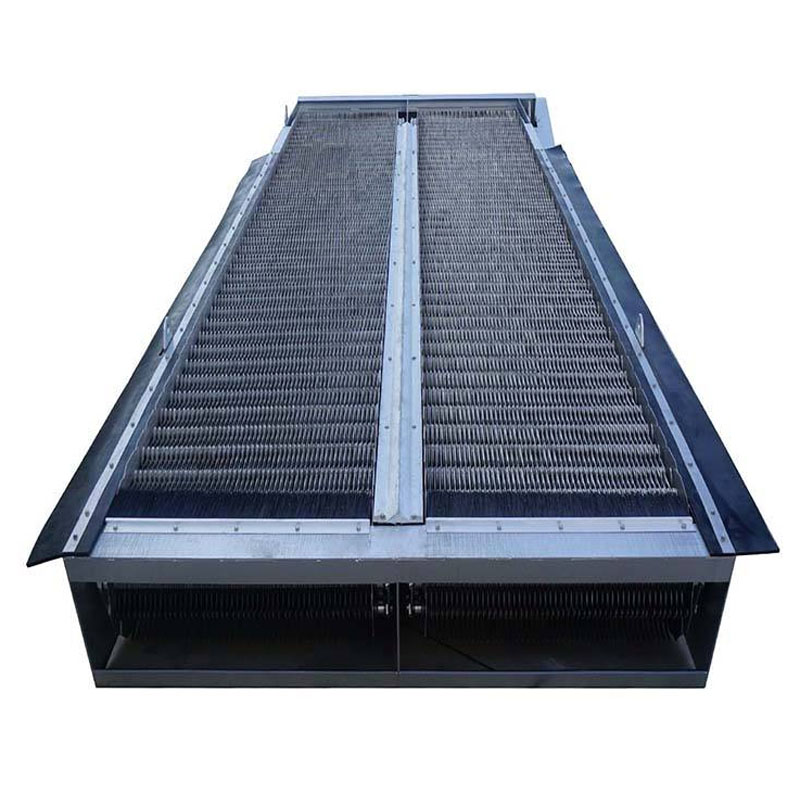

Industrial Bar Screen Machine for Wastewater Treatment SS304
The industrial bar screen machine is a highly efficient wastewater screening system designed for municipal and industrial sewage pretreatment. It removes suspended solids, debris, and fibrous materials through a mechanical rake chain system made of SS304 stainless steel. With fully automatic operation, overload protection, and anti-clogging design, this industrial bar screen machine ensures stable and continuous wastewater filtration performance.
Compare
Product Introduction of Industrial Bar Screen Machine
The industrial bar screen machine for wastewater treatment is a mechanical fine screening equipment widely used in sewage pretreatment systems. It is suitable for municipal sewage plants, drainage pumping stations, and industrial wastewater treatment facilities.

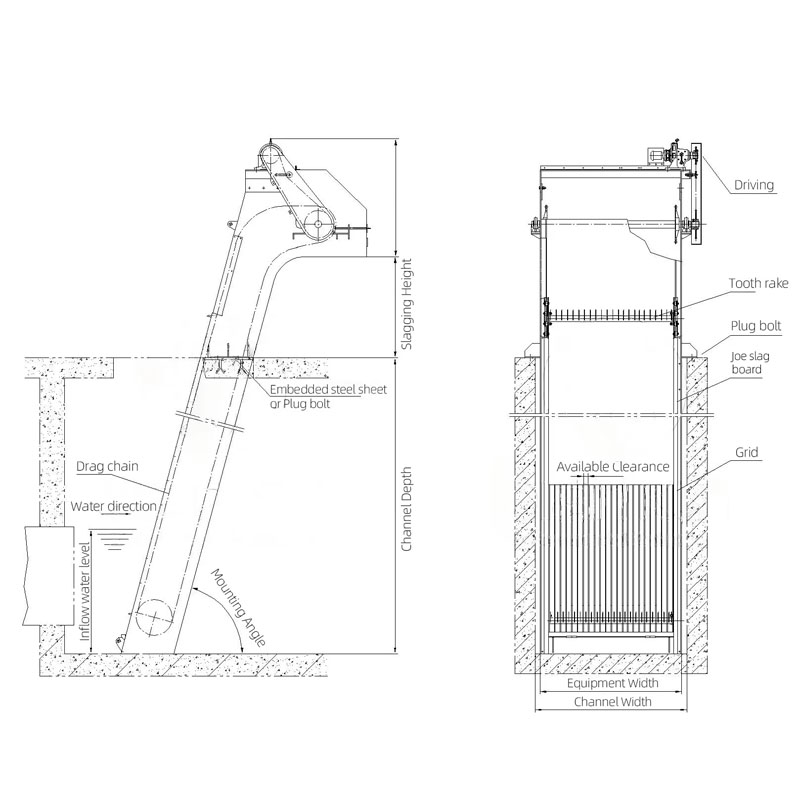

The system consists of a transmission device, rake chain system, supporting frame, and automatic screenings removal mechanism. The rake teeth are made of stainless steel or nylon and form a continuous rotating screening surface.
During operation, the chain-driven rake system moves from bottom to top, lifting and removing debris automatically. The collected screenings are discharged by gravity, ensuring continuous and stable operation.
The machine adopts fully automatic control with overload protection and alarm functions, ensuring safe and reliable operation even in unattended conditions.
Working principle
The industrial bar screen machine operates through a continuous mechanical rake chain system. Wastewater enters the screening chamber where solids are intercepted by fine bar spacing.
During operation:
- Chain-driven rake moves from bottom to top
- Solid waste is lifted continuously from screen surface
- Screenings are transported to discharge outlet
- Gravity removes debris automatically
- Cleaned wastewater flows through screen gaps
The closed chain track design prevents jamming and ensures stable operation. Automatic overload protection stops the system when abnormal conditions occur, ensuring equipment safety.
Product Parameter Table
| Equipment Width (mm) | 1500 |
| Channel Width (mm) | 1600 |
| Efficiency of passing through water (Grid gap 1 mm) | 0.12 |
| Efficiency of passing through water (Grid gap 3 mm) | 0.27 |
| Efficiency of passing through water (Grid gap 5 mm) | 0.36 |
| Efficiency of passing through water (Grid gap 10 mm) | 0.48 |
| Efficiency of passing through water (Grid gap 15 mm) | 0.54 |
| Power (kW, Channel depth 1.5 m-5 m-7.5 m) | 1.5 / 1.5 |
Main Features
- Fully automatic operation with unattended working capability
- Stainless steel SS304 structure ensures corrosion resistance
- Mechanical rake chain system for continuous screening
- Anti-clogging design with closed chain track system
- Automatic overload protection and alarm system
- High efficiency removal of solids and fibrous waste
- Stable performance in municipal and industrial wastewater
- Integrated frame structure ensures mechanical stability
- Easy maintenance with durable mechanical components
- Suitable for continuous high load wastewater screening
Industrial Bar Screen Machine vs Static Screen Filter
| Feature | Bar Screen Machine | Static Screen Filter |
|---|---|---|
| Operation | Mechanical automatic | Gravity passive |
| Efficiency | High solid removal | Medium |
| Maintenance | Medium | Low |
| Energy use | Requires motor | No power |
| Application | High load wastewater | Low-medium load |
Conclusion: bar screen machine is more suitable for high capacity wastewater treatment.
Industrial Bar Screen Machine vs Rotary Drum Screen
| Feature | Bar Screen Machine | Rotary Drum Screen |
|---|---|---|
| Screening type | Rake chain system | Rotating drum |
| Clogging risk | Low | Medium |
| Maintenance | Medium | Higher |
| Flow capacity | High | High |
Application Scenarios
- Municipal wastewater treatment plant screening system
- Industrial wastewater pretreatment screening equipment
- Urban sewage drainage pumping station screening system
- Food processing wastewater solid removal system
- Textile wastewater screening and filtration system
- Paper mill wastewater pretreatment equipment
- Slaughterhouse wastewater screening and solid separation
- Chemical industrial wastewater treatment system
- Stormwater drainage solid waste removal system
- Municipal sewage mechanical screening system
Why Choose Industrial Bar Screen Machine
- Fully automatic operation reduces labor cost
- High efficiency screening improves pretreatment quality
- SS304 stainless steel ensures long service life
- Anti-clogging closed chain design improves stability
- Reliable overload protection enhances safety
- Continuous operation suitable for large wastewater flow
- Strong adaptability for industrial wastewater conditions
- Low maintenance and high operational reliability
FAQ
1. What is an industrial bar screen machine used for in wastewater treatment?
It is used for removing solid waste and debris in municipal and industrial wastewater pretreatment systems.
2. How does an industrial bar screen machine work?
It uses a mechanical rake chain system to lift and remove solid waste from wastewater continuously.
3. What industries use bar screen machines?
It is widely used in municipal sewage, food processing, textile, paper, and chemical industries.
4. What is SS304 bar screen machine used for?
SS304 stainless steel bar screen machines are used for corrosion-resistant wastewater screening applications.
5. What is the difference between fine bar screen and coarse bar screen?
Fine bar screen removes smaller particles, while coarse bar screen removes larger debris.
6. Can bar screen machines work automatically?
Yes, it operates fully automatically with overload protection and alarm system.
7. How to prevent clogging in bar screen machines?
Closed chain track design and rake movement prevent debris jamming effectively.
8. Is bar screen machine suitable for municipal wastewater plants?
Yes, it is widely used in municipal sewage treatment systems.
Contact us to get your quotation now.
Get in touch with our engineering team.
