Inclined Bucket Elevator Conveyor for Nut Handling System

Product introduction of Inclined Bucket Elevator Conveyor

The Inclined Bucket Elevator Conveyor is designed for efficient lifting and conveying of various fragile and non-fragile materials in automated production lines. It uses bucket transportation technology to provide smooth and stable material transfer while reducing product damage. The conveyor height, bucket size, and feeding configuration can be customized according to different production requirements. With automatic feeding control and optional integration with electronic weighing systems, it ensures accurate and continuous material supply. Suitable for snacks, chips, nuts, grains, and small industrial components, the Inclined Bucket Elevator Conveyor is widely used in food processing, packaging, and material handling applications.

Working principle

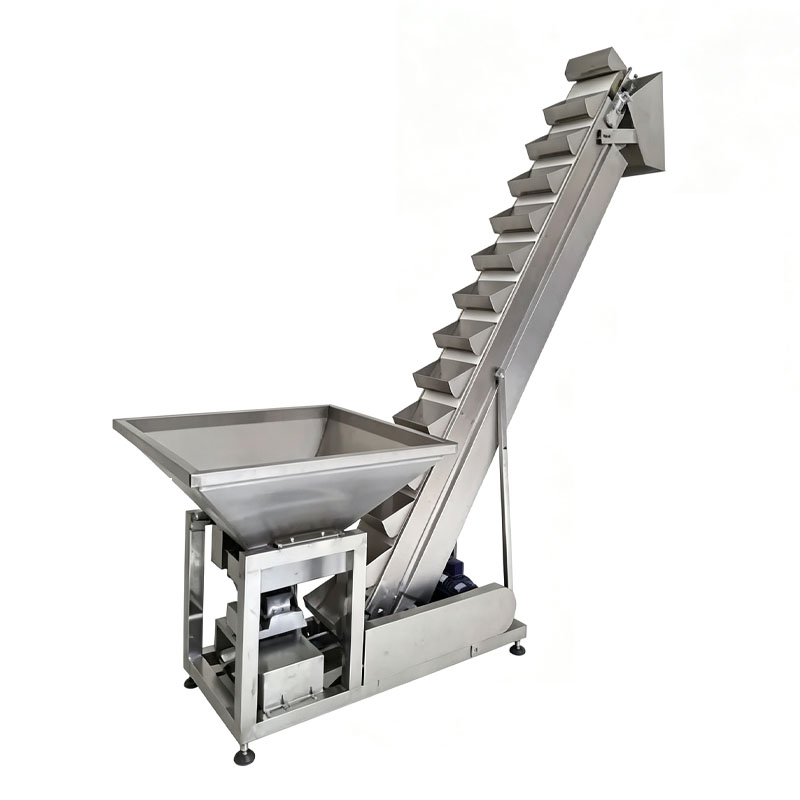

The Inclined Bucket Elevator Conveyor operates through continuously moving buckets installed on a belt or chain mechanism. Materials are loaded into the feeding section and collected by the moving buckets.

The buckets carry materials upward along the inclined conveyor path and discharge them at the required height. When connected with an electronic weighing system, the feeding process can be automatically controlled according to production requirements.

This continuous conveying process provides accurate material delivery while maintaining product quality and reducing manual operation.

Working Process

The Inclined Bucket Elevator Conveyor uses moving buckets to lift and transfer materials smoothly along an inclined path. The working process includes:

Material Feeding → Bucket Loading → Inclined Lifting → Automatic Discharging → Continuous Conveying

Materials enter the hopper and are collected by the buckets. Driven by the conveyor system, the buckets move upward at a stable speed and discharge materials at the required height for further processing or packaging. This gentle conveying method helps reduce product damage and ensures continuous and reliable material feeding.

Product Parameter Table

Item	Specification
Equipment Type	Inclined Bucket Elevator Conveyor
Lifting Height	2.3 m
Conveying Capacity	1–3.5 m³/h
Bucket Volume	Customized
Bucket Material	Food Grade PP / Stainless Steel
Machine Material	Stainless Steel
Conveying Speed	Adjustable
Feeding Method	Hopper Feeding
Power Supply	220V, 50Hz/60Hz
Motor Power	0.7 kW

Main Features

Gentle Material Conveying

The Inclined Bucket Elevator Conveyor adopts bucket-based transportation, allowing materials to move smoothly with reduced impact. It is suitable for fragile products that require careful handling, helping minimize breakage and product loss.

Automatic Feeding Control

The system can be connected with electronic weighing equipment and control circuits to achieve automatic feeding management. The conveyor can start or stop according to material level signals, improving production automation.

Adjustable Lifting Height

The lifting height can be customized according to customer requirements, allowing the equipment to fit different factory layouts and production line designs.

Stable Material Transfer

The bucket conveying structure provides continuous and reliable transportation, ensuring stable feeding for packaging machines, processing equipment, and weighing systems.

Wide Product Compatibility

The Inclined Bucket Elevator Conveyor can handle various materials, including fragile snacks, food ingredients, grains, small components, and other bulk products.

Compact Installation Design

The inclined structure helps save floor space while providing efficient vertical transportation, making it suitable for factories with limited installation areas.

Easy Integration with Production Lines

The equipment can be combined with weighing machines, filling machines, packaging systems, and other automated production equipment to create a complete material handling solution.

Low Maintenance Operation

The simple mechanical structure and reliable conveying system reduce maintenance requirements and help ensure long-term stable operation.

Advantages of Inclined Bucket Elevator Conveyor

Protects Product Quality

The bucket lifting method reduces friction and impact, making it suitable for fragile products that require careful transportation.

Improves Production Automation

Automatic start-stop control and integration with weighing systems help reduce labor requirements and improve production efficiency.

Flexible Factory Layout

The adjustable lifting height allows the equipment to adapt to different production environments and equipment arrangements.

Increases Feeding Accuracy

The stable conveying process ensures consistent material supply for packaging and processing equipment.

Suitable for Multiple Industries

From food processing to industrial manufacturing, the equipment provides a flexible solution for different material handling needs.

Customization Options

The Inclined Bucket Elevator Conveyor can be customized according to:

• lifting height
• conveying capacity
• bucket volume
• bucket material
• feeding method
• discharge position
• machine dimensions
• control system requirements

Application Scenarios

Snack Food Processing

The Inclined Bucket Elevator Conveyor is widely used for transporting chips, crackers, biscuits, puffed snacks, and other fragile food products where gentle handling is required.

Nut Processing Line

It can smoothly transfer peanuts, almonds, cashews, pistachios, and other nuts to weighing or packaging equipment while reducing product damage.

Grain and Agricultural Product Handling

The equipment is suitable for conveying rice, seeds, cereals, beans, and other granular agricultural products.

Food Packaging Industry

It provides continuous feeding for automatic weighing machines, packaging machines, and filling systems to improve production efficiency.

Hardware Component Transfer

The conveyor can also handle small hardware parts and industrial components requiring stable lifting and transportation.

Pharmaceutical and Chemical Applications

With suitable material selection, it can be used for transporting pharmaceutical granules and industrial particles.

Suitable Materials

The Inclined Bucket Elevator Conveyor is suitable for:

• chips
• snacks
• nuts
• grains
• seeds
• cereals
• sugar
• beans
• pellets
• hardware parts
• small bulk products

FAQ

Q1: What products can the Inclined Bucket Elevator Conveyor transport?

A: It can transport various products including snacks, chips, nuts, grains, seeds, food ingredients, hardware components, and other bulk materials.

Q2: Can this conveyor handle fragile products?

A: Yes. The bucket conveying method provides gentle transportation and helps reduce product breakage during lifting.

Q3: Can the lifting height be customized?

A: Yes. The lifting height can be adjusted according to customer production line requirements and installation conditions.

Q4: Can it work with weighing machines?

A: Yes. The Inclined Bucket Elevator Conveyor can be integrated with electronic weighing systems for automatic feeding and accurate material supply.

Q5: Does the conveyor support automatic operation?

A: Yes. The control system can automatically start and stop the conveyor according to material level signals and production requirements.

Q6: What is the difference between an inclined bucket conveyor and a traditional belt conveyor?

A: The bucket conveying design provides better product protection and is more suitable for fragile or irregular materials that require controlled transportation.

Q7: Is the equipment suitable for food processing?

A: Yes. With food-grade materials and hygienic design options, it can meet the requirements of many food processing applications.
