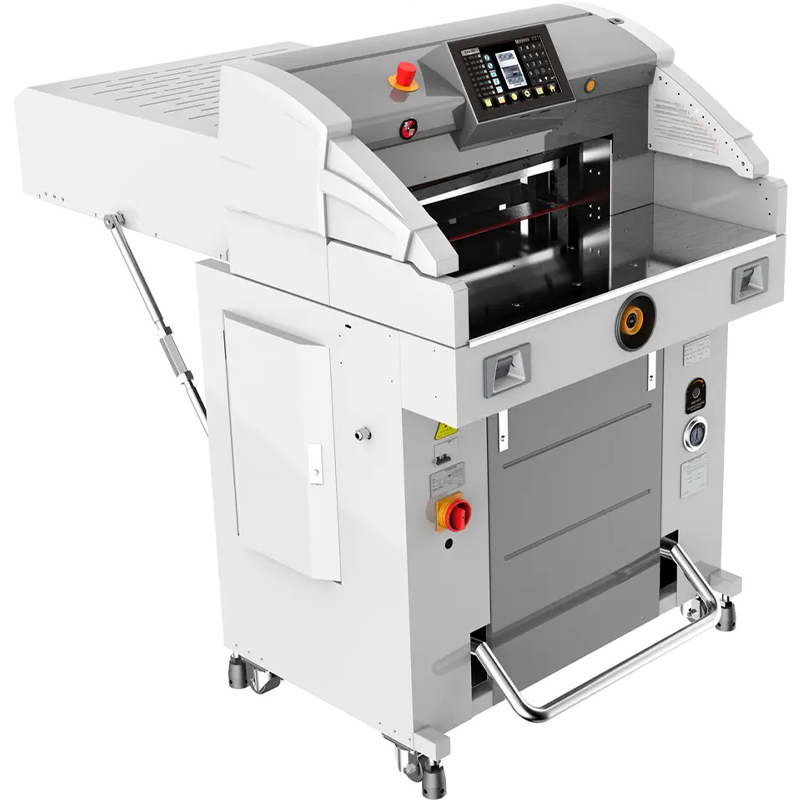

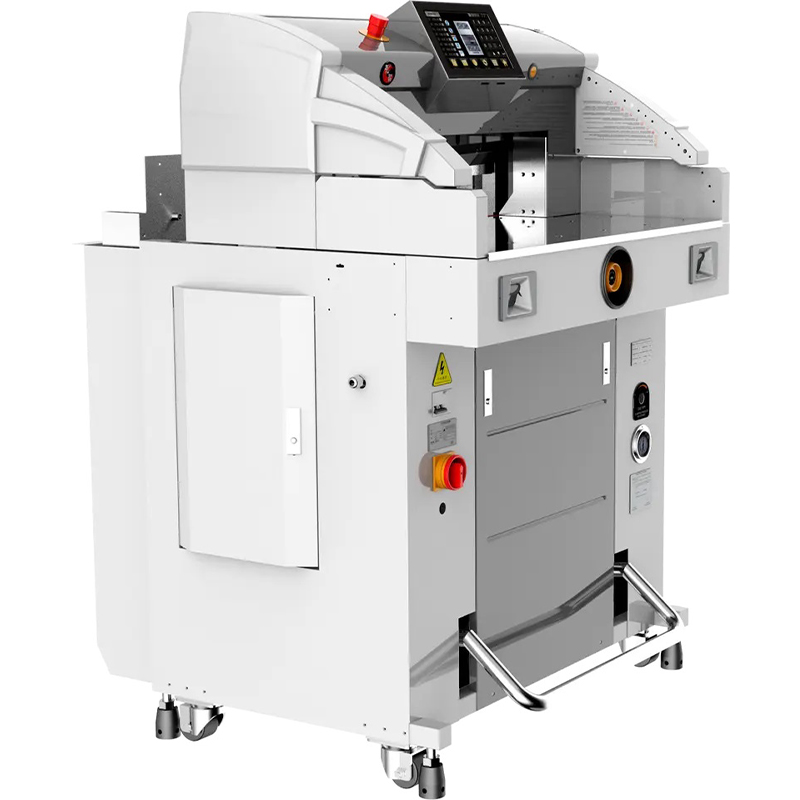

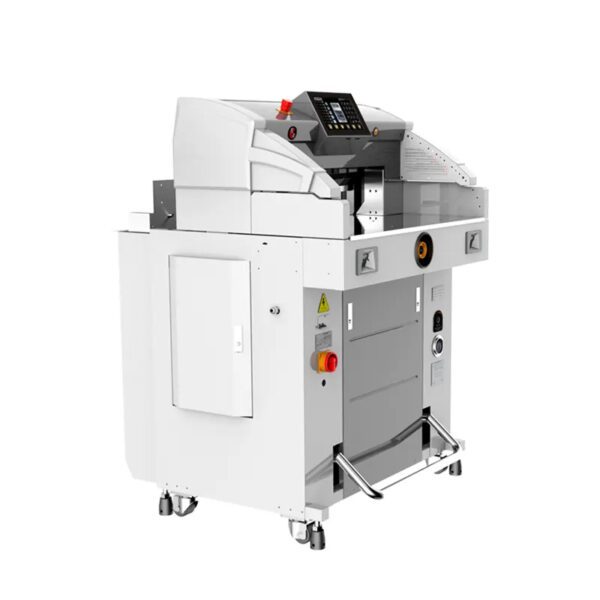

Technical Parameters of the Hydraulic Paper Cutting Machine
Max cutting size | 670mm×670mm |
Max cutting thickness | 100mm |
Min pushing size | 20mm |
Pushing accuracy | ±0.1 |
Cutting accuracy | ±0.2 |
Touch screen | 7 inch |
Pressing | Hydraulic+pedal |
Cutting | Hydraulic |
Pushing Motor | Stepping motor |
Pushing speed | 3.5 m/min |
Voltage | 220V(110V)±10%, 50HZ(60HZ) |
Power | 2300w |
Dimension(L×W×H) | 1455mm×920mm×1470mm |
N.W | 550kg |
Features
- Safety Devices. Light curtain, two hand operation, Emergency stop.
- 100MM Max cutting height.
- Wide formate Pushing system. Backgauge without middle slot ensures pushing accuracy.
- Hydraulic clamp by 2 vertical guides of bearing steel.
- Powerful Hydraulic System.
- Touch Screen Hydraulic & Programs.
- Heavy duty structure,higher accuracy.
- CE Standard, safety light curtain.
- Double Auto Breaker satety design.
- centralized control circuit for easy.
- Foldable and disasseble back table.
- Auto Measure function.
- Rolling ball table, easy to remove paper
