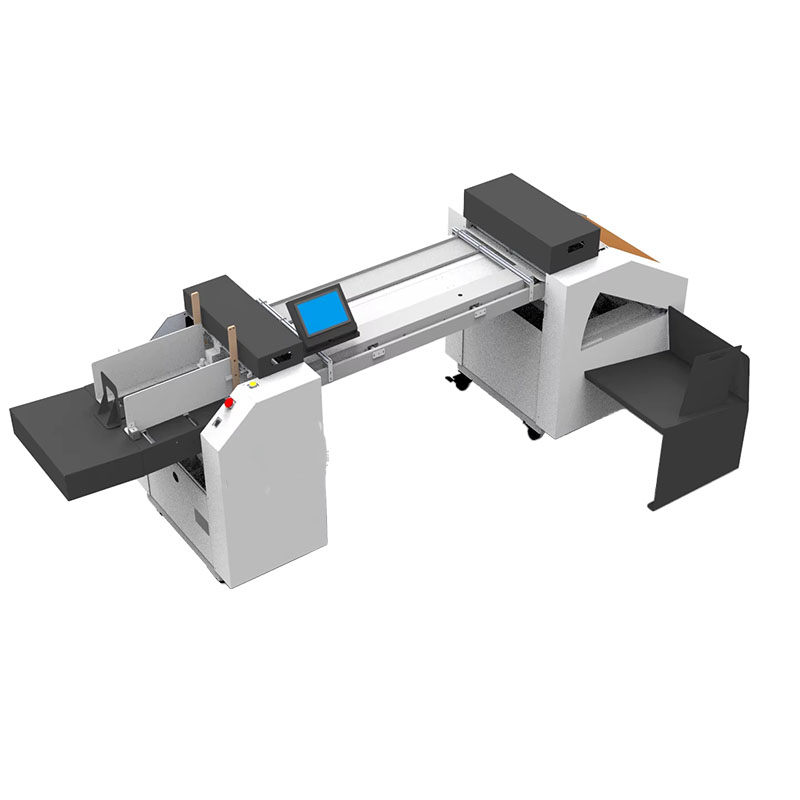

Industrial-grade High-quality Fully Automatic Creasing, Punching and Folding Machine

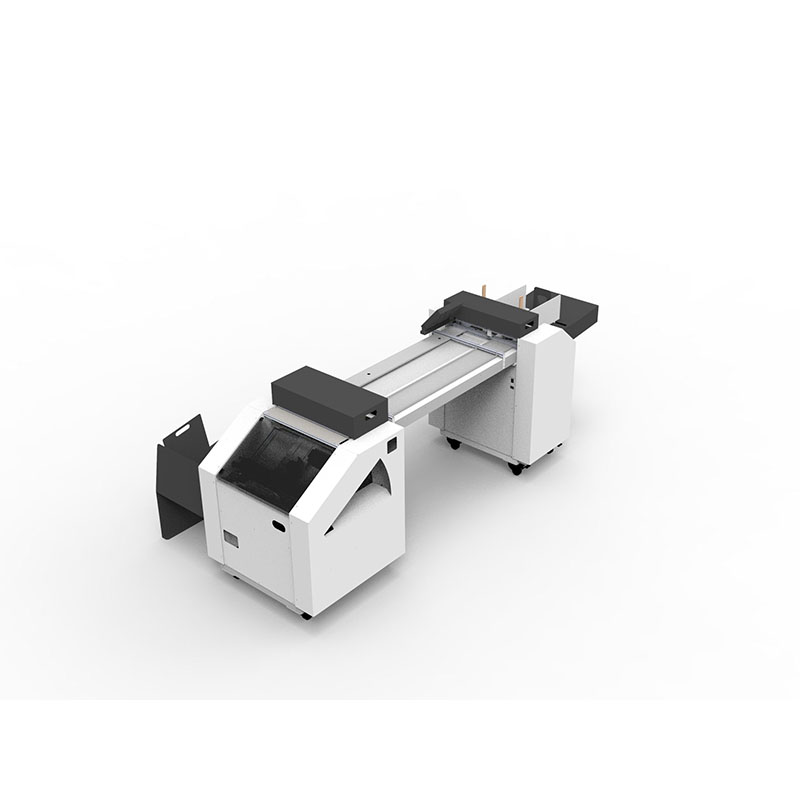

Industrial-grade High-quality Fully Automatic Creasing, Punching and Folding Machine - Image 2

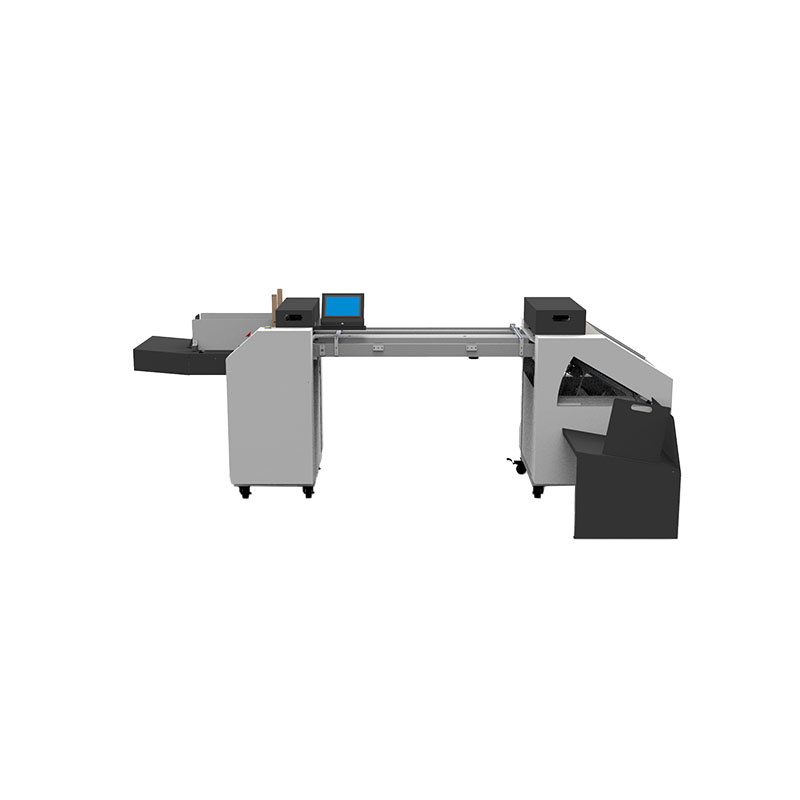

Industrial-grade High-quality Fully Automatic Creasing, Punching and Folding Machine - Image 3

Industrial-grade High-quality Fully Automatic Creasing, Punching and Folding Machine

Compare
This fully automatic creasing, punching and folding machine is a highly efficient automated device for post-printing finishing processes. It integrates three core functions: creasing, punching and folding, and can complete one-stop pre-binding processing of documents such as bid proposals, contracts and manuals, improving efficiency by over 60% compared with traditional step-by-step operations.
Equipped with a variable frequency speed control system, the machine supports stepless speed regulation from 10 to 30m/min. It is compatible with multi-material paper of 100–400gsm and full-size processing from A3 to A6, featuring precise positioning of creasing, punching and folding with an error margin controlled within ±0.5mm.
Built-in intelligent detection and early warning functions effectively prevent problems such as paper jams and double-sheet feeding, ensuring a finished product rate of up to 99.9%. The user-friendly operation panel combined with a modular maintenance design enables even novices to master the operation in seconds. Widely applicable to scenarios such as digital printing shops, bid document binding centers and corporate printing rooms, it is an ideal choice for improving the standardization and automation level of printing and document processing.

$10,800.00

Compare

Product Description:
Industrial-grade High-quality Fully Automatic Creasing, Punching and Folding Machine
This fully automatic creasing, punching and folding machine is specially designed for digital printing shops, bid document binding centers, corporate printing rooms and archive management departments. It integrates four core advantages: integrated multi-process completion, intelligent speed regulation for high precision and efficiency, compatibility with various paper materials, and easy operation and maintenance. It solves the pain points of uneven creasing, easy punching deviation and low folding efficiency of traditional manual operations, and is a powerful device to improve the standardization and automation level of printing and binding.
Product Parameters：

Paper size
Max. 18”*36” ( 460mm*920mm)
Min. 6”*8” ( 152mm*203mm)
Paper thickness
150gsm -300gsm
Speed
1200 sheets / hour ( Length=600mm)
Double sheet detector
Include
Bar code scanner
Optional
Power Supply
220V 50HZ Single phase
Maximum power consumption
500W
Machine dimension
2.4m(L) x0.815m (W) x1.1m (H)
Weigh
200kg
Air compressor
>0.6mpa

Contact us to get your quotation now.
