Hydraulic Valves

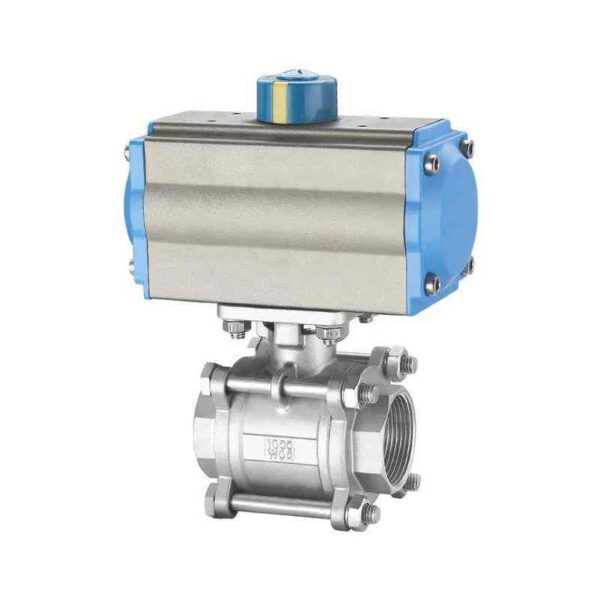

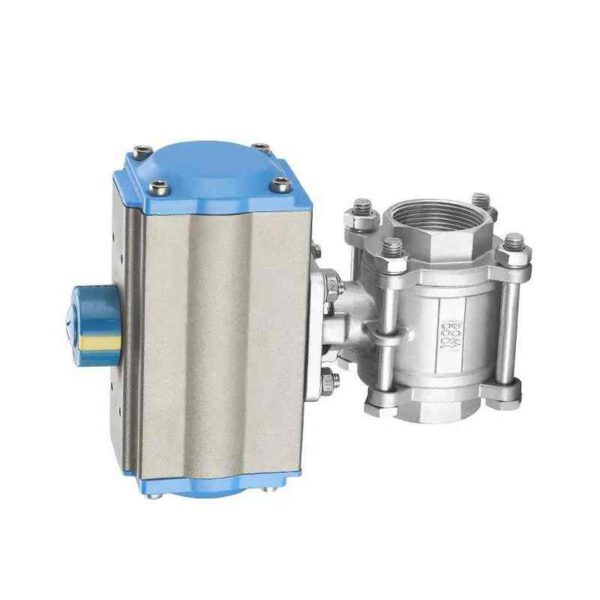

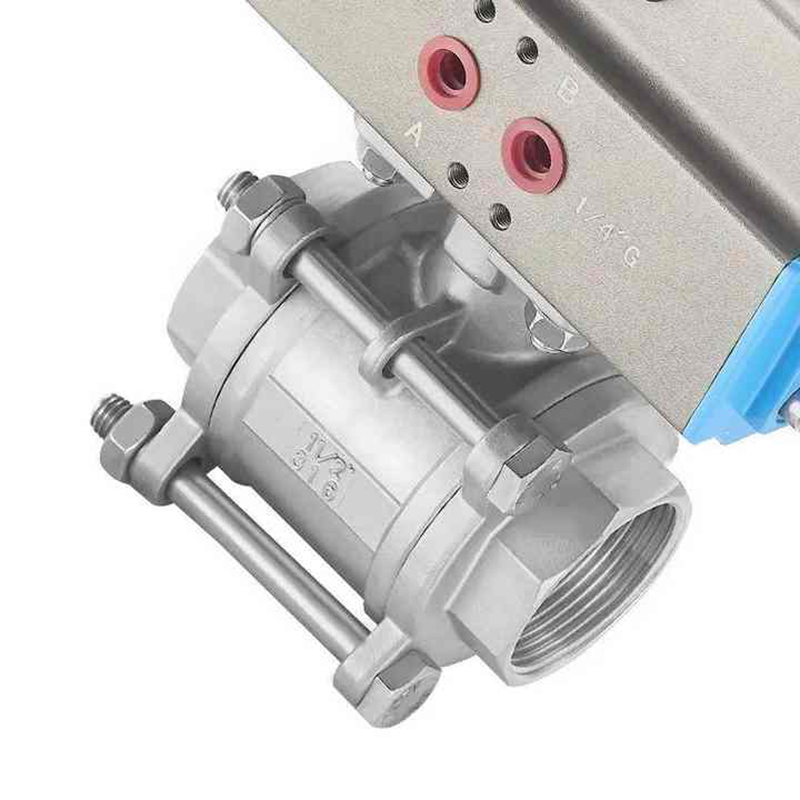

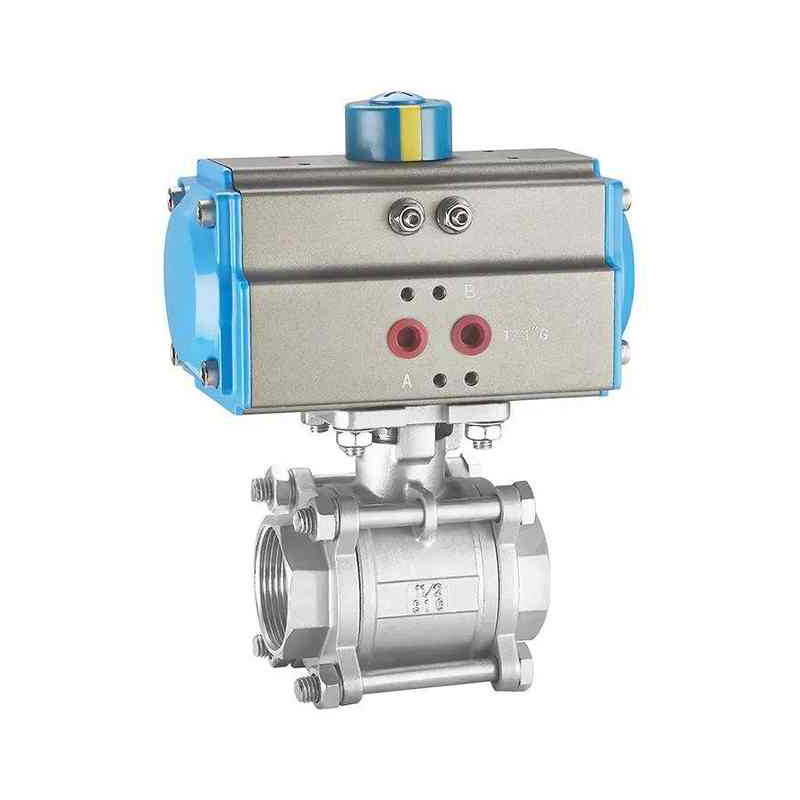

Hydraulic Ball Valve Standard Pressure Work Water Air Oil SS DN15-DN100
BODY:CF8 CF8M
BONNET:CF8 CF8M
BALL:CF8 CF8M
MIDMOUTH:304 316
SEAT:PTFE
SPRING:304
C-TYPE BUCKLE SPRING:304
CONNECTING BOLT:ASTM A193-E8
NUT:ASTM A194-8
CONNECTING BOLT:ASTM A193-E8
$21.25
CompareHydraulic Ball Valve Material Of Main Parts
|
BODY
|
CF8 CF8M
|
|
BONNET
|
CF8 CF8M
|
|
BALL
|
CF8 CF8M
|
|
MIDMOUTH
|
304 316
|
|
SEAT
|
PTFE
|
|
SPRING
|
304
|
|
C-TYPE BUCKLE SPRING
|
304
|
|
CONNECTING BOLT
|
ASTM A193-E8
|
|
NUT
|
ASTM A194-8
|
|
CONNECTING BOLT
|
ASTM A193-E8
|
Dimensions:
|
DN
|
d
|
L
|
H
|
H
|
W
|
|
10
|
12.7
|
65
|
36.5
|
125.5
|
137
|
|
15
|
15
|
72
|
36.5
|
125.5
|
137
|
|
20
|
20
|
83
|
39.5
|
128.5
|
137
|
|
25
|
25
|
91
|
47.5
|
136.5
|
137
|
|
32
|
32
|
103
|
53.5
|
142
|
137
|
|
40
|
38
|
110
|
61.5
|
166.5
|
154
|
|
50
|
50
|
131
|
70.5
|
175.5
|
154
|
