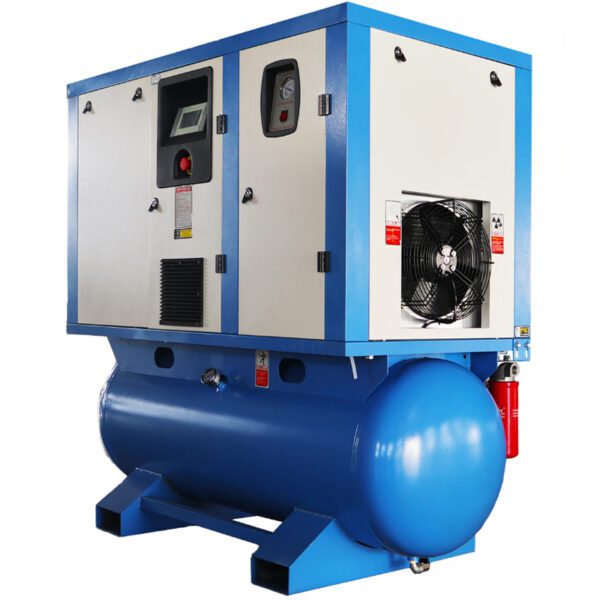

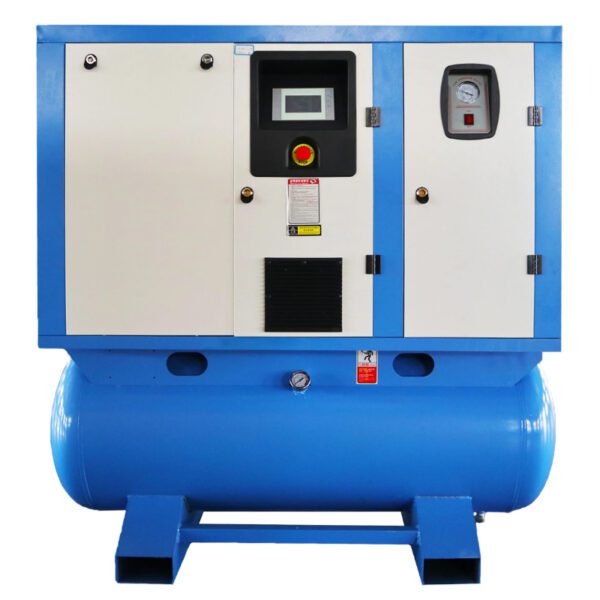

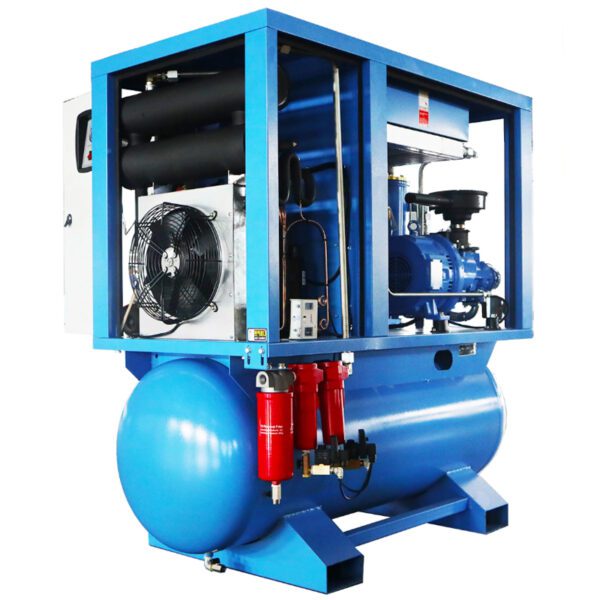

MODELS OF THE Hot Selling Ari Compressor
MODEL | MAXIMUM WORKING PRESSURE | FREE AIR DELIVERY OF UNITAT WORKING PRESSURE | MOTOR | TANK | NOISE LEVEL | AIR OUTLET DISCHARGE SIZE | WEIGHT | DIMENSIONS
L×W×H |
75A | 8Bar/116PSI | 0.70m³/min | 5.5kw/7.5HP | 180L | 62±2 | G3/4 | 310KG | 1550×700×1480 |
100A | 8Bar/116PSI | 1.10m³/min | 7.5kw/10HP | 180L | 64±2 | G3/4 | 320KG | 1550×700×1480 |
150A | 8Bar/116PSI | 1.50m³/min | 11kw/15HP | 350L | 66±2 | G3/4 | 415KG | 1600×780×1600 |
200A | 8Bar/116PSI | 2.30m³/min | 15kw/20HP | 350L | 66±2 | G3/4 | 415KG | 1600×780×1600 |
300A | 8Bar/116PSI | 3.30m³/min | 22kw/30HP | 350L | 66±2 | G1 | 450KG | 1600×780×1700 |
Product details
- Superior Air filter
Original Mann air efficient heavy duty inlet to ensure the quality of inlet air end safety of the air end, improved the life greatly. - Larger and thicker cooler and fan
The cooler uses high-quality raw materials and a unique internal channel design, which increases the heat exchange area can effectively dissipate heat from the air compressor. - Gas-liquid separator
The gas-liquid separator adopts the principle of centrifugal separation and wire mesh filtration. - Precooler
Pure aluminum fins and high-efficiency copper tubes or, high-efficiency heat-exchanging copper tubes. Production, high heat exchange efficiency, reduce the inlet temperature. - Efficiency Drive Motor
Using well-known brand high-performance motor, protection class lP54/IP55, F class insulation. SKF over-loading bearing. - Protection switch
High precision, accurate protection of the machine,high and low pressure, easy to set. - Air End
By using the German and Italy air end,strong heart depends on the great performance of our compressor. - Intelligent Control and Protection
The main electrical components use the CE, UL certificate brand,we can make sure stable running for different voltage and longtime service life.
