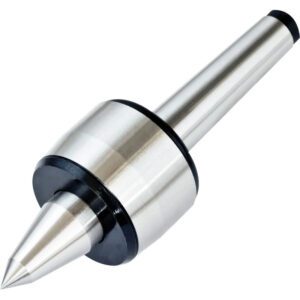

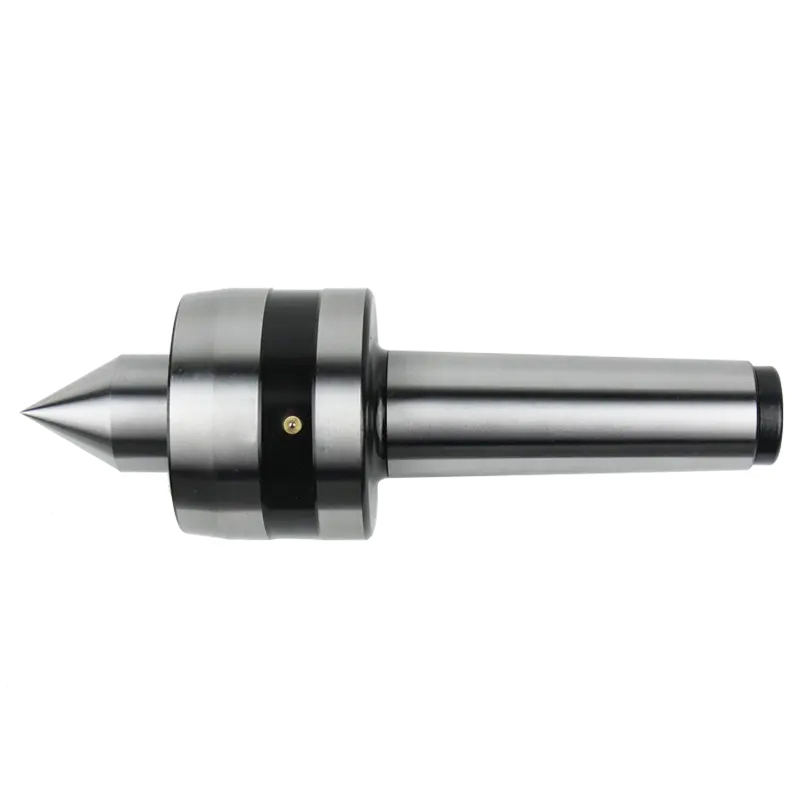

Heavy Duty Lathe Live Center MT5 1 Ton Morse Taper Revolving Live Center


The center adopts the combination of cylindrical roller bearing, the ball thrust bearing, and the deep groove ball bearing.
It is applicable to the heavy-load processing of large lathes.
The mandrel is extended to the end of the top come, which maximally improves the cutting performance and reduces vibration.
The center is made of alloy steel and its hardness after being heat treated could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.
The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings so as to prolong its service life.

$49.00

Compare
Products Name :
Material:
T10
Bearing:
German imported bearings

The center adopts the combination of cylindrical roller bearing, the ball thrust bearing, and the deep groove ball bearing.
It is applicable to the heavy-load processing of large lathes.
The mandrel is extended to the end of the top come, which maximally improves the cutting performance and reduces vibration.
The center is made of alloy steel and its hardness after being heat treated could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.
The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings so as to prolong its service life.

Model A B C D E F
Model-1T 41 53 260 72 89 44.4
Model-3T 47 63 278 80 104 44.4
Model-5T 65 80 337 110 140 44.4
