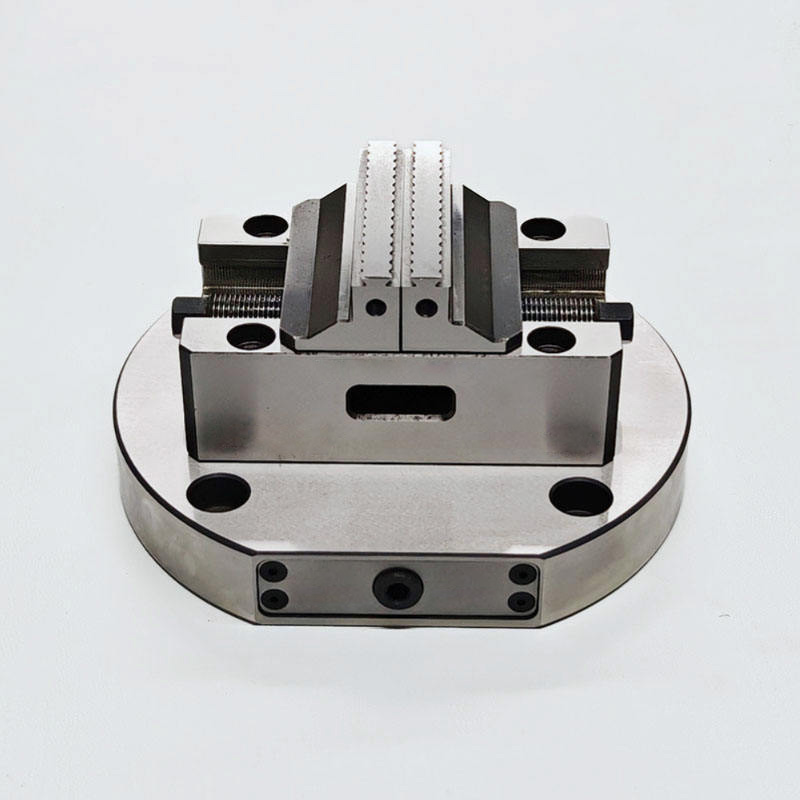

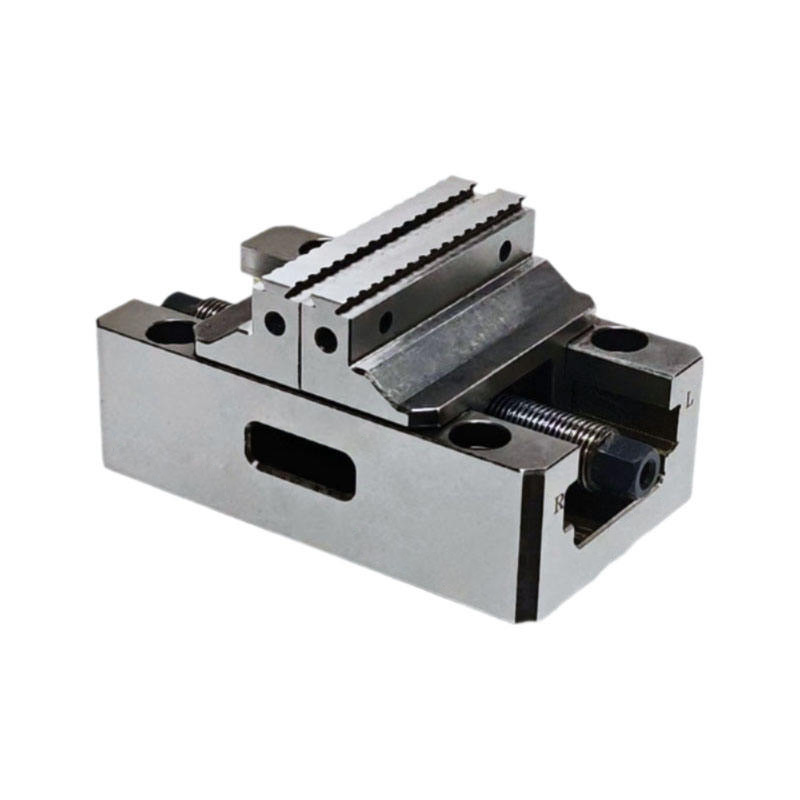

GDS78-128 Positioning for 5-Axis CNC Compact Self-Centering
This GDS78-128 precision manual self-centering vice is engineered for optimal workpiece positioning on 5-axis CNC milling centers and high-speed lathes. It utilizes a synchronized bi-directional lead screw to ensure center-point consistency, featuring an elevated slim-profile body that provides maximum tool clearance for complex multi-axis simultaneous machining while maintaining high clamping rigidity for small to medium-sized intricate parts.
$561.00
CompareProduct Introduction for GDS78-128 Positioning
This GDS78-128 precision manual self-centering vice is engineered for optimal workpiece positioning on 5-axis CNC milling centers and high-speed lathes. It utilizes a synchronized bi-directional lead screw to ensure center-point consistency, featuring an elevated slim-profile body that provides maximum tool clearance for complex multi-axis simultaneous machining while maintaining high clamping rigidity for small to medium-sized intricate parts.
Parameter Table
| Type | Universal Vise |
| Weight (KG) | 3.5 |
| Material | Alloy Steel |
| Dimensions | 78*128*66mm |
| Forward Clamping Range | 0-60mm |
Application Scenario
- 5-Axis Simultaneous Milling
- Complex Multi-Sided Machining
- Small Precision Part Positioning
- Aerospace and Medical Tooling
Contact us to get your quotation now.
