Skid Steers & Attachments

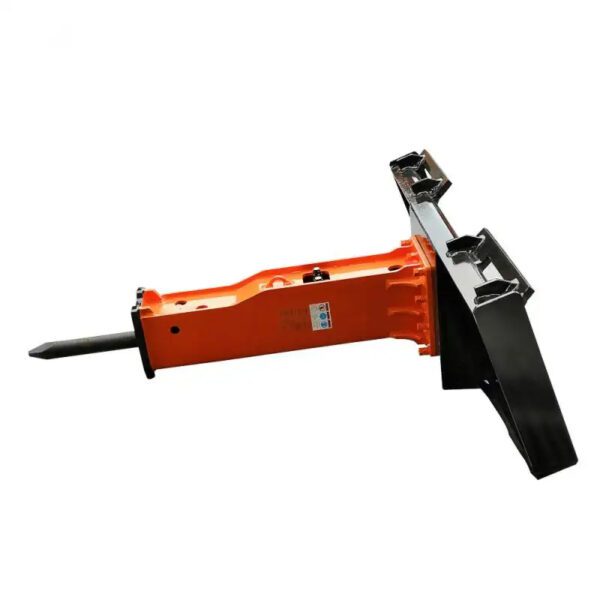

Hammer hydraulic breaker skid steer attachments
Side Type Breaker
1.Reducing total-length
2.More easier to handle
the breaking objects
3. low maintenance.
Top Type Breaker
1.Easy-operating to achieve excavation work
2.Without side weight, reducing the rate of chisel breakage
3.longer total-length and heavier total-weight.
Silence Box Type Breaker
1.Low noise level
2.Full-closed bracket protects
main body from damage.
$2,758.00
Compare|
unit
|
400
|
450
|
530
|
600
|
|
|
operation weight(side/top/box)
|
kg
|
70/75/102
|
95/95/126
|
138/138/152
|
180/180/224
|
|
length(side/top/box)
|
mm
|
910/1086/1190
|
1090/1235/1331
|
1178/1344/1417
|
1239/1460/1472
|
|
working flow rate
|
1iter/min
|
15-25
|
20-30
|
25-50
|
30-60
|
|
oil relief pressure
|
kg/cm²
|
160
|
160
|
160
|
160
|
|
working pressure
|
kg/cm²
|
90-120
|
90-120
|
90-120
|
100-130
|
|
impact rate
|
bpm
|
800-1400
|
700-1200
|
600-1000
|
500-1000
|
|
chisel diameter
|
mm
|
¢40
|
¢45
|
¢53
|
¢60
|
|
oil pipe nominaldiameter
|
inch
|
1/2
|
1/2
|
1/2
|
1/2
|
|
back head pressure
|
kg/cm²
|
16
|
16
|
16
|
16
|
|
Accumulator pressure
|
kg/cm²
|
/
|
/
|
/
|
/
|
|
Applicable Excavator weight
|
ton
|
0.8-2.5
|
1.2-3.0
|
2.5-4.5
|
3-5.5
|
|
Applicable Bucket
|
m³
|
0.07
|
0.03-0.1
|
0.06-0.2
|
0.06-0.2
|
|
Value Ass’y Position
|
internal
|
internal
|
internal
|
internal
|
Structure
Patented body design
Inner valve
Quiet operation
Fuel saving
Low maintenance cost
Smart bracket design
Energy recovery system
Various working tools
Inner valve
Quiet operation
Fuel saving
Low maintenance cost
Smart bracket design
Energy recovery system
Various working tools
