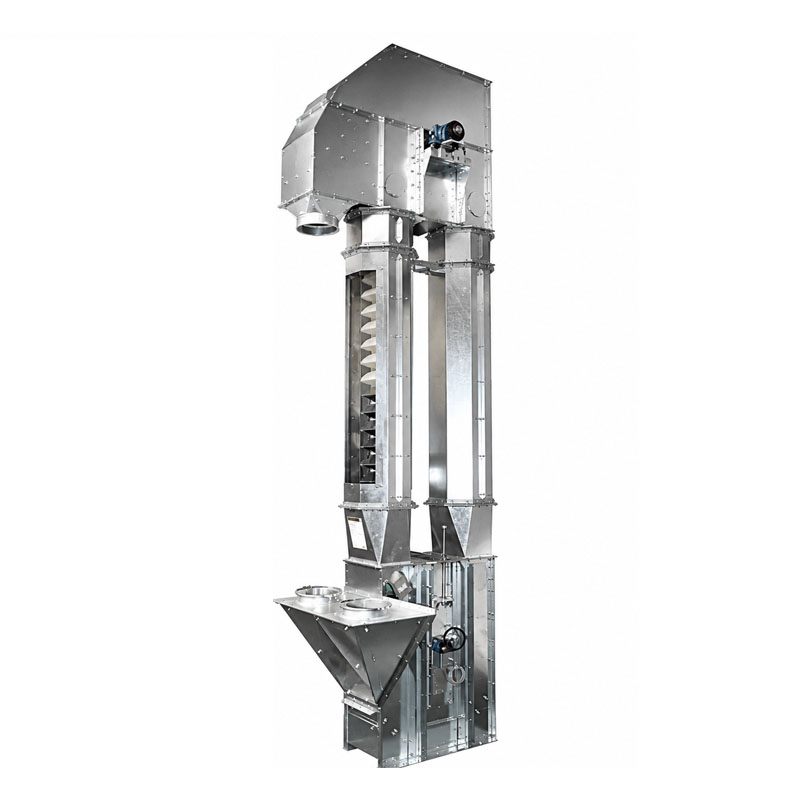

Grain Bucket Elevator for Agricultural Material Handling

Bucket Elevator Product Introduction

Bucket Elevator is an efficient vertical conveying solution designed for transporting bulk materials to different heights in industrial production lines. The system uses a series of buckets fixed at regular intervals on a belt or chain, which continuously collects materials from the loading section and lifts them vertically to the discharge point.

The enclosed vertical structure provides stable material transportation while minimizing installation space compared with traditional horizontal conveying equipment. Depending on application requirements, the elevator can be configured with stainless steel, painted steel, or durable plastic buckets to handle different materials and working conditions.

This vertical conveyor system is suitable for free-flowing materials and products with different particle sizes, including grains, seeds, sugar, salt, fertilizer, pellets, wood chips, powders, and other bulk materials. With customizable lifting height, conveying capacity, bucket type, and feeding or discharge configuration, it can be integrated into various production and storage systems.

Bucket Elevator offers reliable operation, easy maintenance, compact design, and high adaptability, making it an ideal choice for efficient vertical material handling in food, agricultural, chemical, pharmaceutical, and industrial applications.

Working principle

Bucket Elevator operates through a continuous lifting process using buckets mounted on a belt or chain system.

During operation, materials enter the loading section at the bottom of the elevator. As the belt or chain moves, the buckets scoop up the material and carry it vertically upward along the elevator structure.

When the buckets reach the upper discharge section, the material is released through centrifugal force or gravity and transferred to the next processing stage or storage equipment.

The continuous circulation of buckets enables stable and efficient vertical conveying while reducing manual handling and saving valuable production space.

Product Parameter Table

Parameter	Specification
Equipment Type	Vertical Bucket Elevator
Conveying Capacity	Customized according to requirements
Lifting Height	Customized according to application
Bucket Material	Stainless Steel, Carbon Steel, or Plastic
Drive System	Belt Drive or Chain Drive
Conveying Speed	Up to 400 m³/h
Applicable Material	Grain, Powder, Granule, Pellet, and Bulk Material
Structure Material	AISI 304 Stainless Steel or Carbon Steel
Discharge Type	Centrifugal Discharge or Gravity Discharge
Control System	Automatic Control Available
Application Industry	Food, Agriculture, Chemical, Pharmaceutical, and Industrial

Optional Configurations

The bucket elevator can be equipped with:

• stainless steel bucket
• plastic bucket
• chain drive system
• belt drive system
• customized inlet and outlet
• dust protection cover
• inspection door
• automatic control system

Main Features

Efficient Vertical Material Conveying

The vertical lifting design allows materials to be transported to high levels while minimizing factory space requirements.

Wide Material Compatibility

The elevator can handle various bulk materials, including grains, seeds, powders, pellets, fertilizers, and industrial materials.

Customizable Bucket Options

Different bucket materials, sizes, and designs can be selected according to material characteristics and production requirements.

Durable Structure

The equipment can be manufactured with stainless steel, painted steel, or other durable materials to ensure long service life.

High Conveying Capacity

The continuous bucket lifting system provides stable transportation for large quantities of bulk materials.

Compact Installation Design

The vertical structure requires less floor space compared with conventional horizontal conveying equipment.

Easy Cleaning and Maintenance

Removable buckets and accessible components simplify cleaning procedures and reduce maintenance time.

Reliable Continuous Operation

The stable drive system ensures consistent material lifting with low downtime.

Food-Grade Material Option

Stainless steel construction and food-grade buckets are available for applications requiring hygiene and safety standards.

Application Scenarios

Grain Processing Industry

Used for lifting wheat, rice, corn, cereals, and other grains in milling plants, storage facilities, and grain handling systems.

Food Processing Industry

Suitable for conveying sugar, salt, flour, starch, food ingredients, and other materials in food production lines.

Agricultural Industry

Applied for transporting seeds, feed ingredients, and agricultural products in storage and processing facilities.

Chemical Industry

Used for lifting fertilizer, chemical particles, powders, and additives requiring stable vertical transportation.

Pharmaceutical Industry

Suitable for transferring pharmaceutical powders and granules where clean and reliable conveying is required.

Plastic Processing Industry

Used for transporting plastic pellets and resin particles in automated production systems.

Mineral Processing Industry

Applied for lifting mineral powders, sand, and other bulk industrial materials.

Warehouse and Storage System

Integrated with silos, storage tanks, and automated loading systems for efficient material movement.

Suitable Materials

Bucket Elevator can transport:

• grain
• wheat
• corn
• rice
• seed
• sugar
• salt
• flour
• starch
• fertilizer
• plastic pellet
• wood chip
• powder material
• industrial granule

Advantages Compared with Other Conveying Equipment

Compared with Belt Conveyor

• Requires less floor space
• Suitable for high-level transportation
• Better for vertical material lifting

Compared with Screw Conveyor

• Higher lifting height capability
• Suitable for larger conveying distances
• Lower risk of material blockage

Compared with Pneumatic Conveyor

• Lower energy consumption
• Less operating cost
• Suitable for larger particle materials

FAQ

Q1: What materials can a bucket elevator handle?

Bucket elevators can transport grains, seeds, powders, pellets, fertilizer, sugar, salt, plastic particles, and other bulk materials.

Q2: What is the maximum lifting height of a bucket elevator?

The lifting height depends on the equipment design, production requirements, and installation conditions. Customized solutions are available for different applications.

Q3: Can bucket elevators be used for food processing?

Yes. Stainless steel construction and food-grade buckets can be selected for food handling applications requiring hygiene standards.

Q4: What types of buckets are available?

Buckets can be made from stainless steel, painted steel, or durable plastic materials depending on the transported material and operating environment.

Q5: How does a bucket elevator discharge materials?

Materials are discharged at the top section through centrifugal force or gravity depending on the elevator design and bucket arrangement.

Q6: Is the bucket elevator easy to maintain?

Yes. The modular structure and removable components make inspection, cleaning, and maintenance easier.

Q7: What information is needed to select a suitable bucket elevator?

The required information includes:

• material type
• bulk density
• particle size
• conveying capacity
• lifting height
• feeding and discharge requirements
